Valor LX1 Quick Start Manual

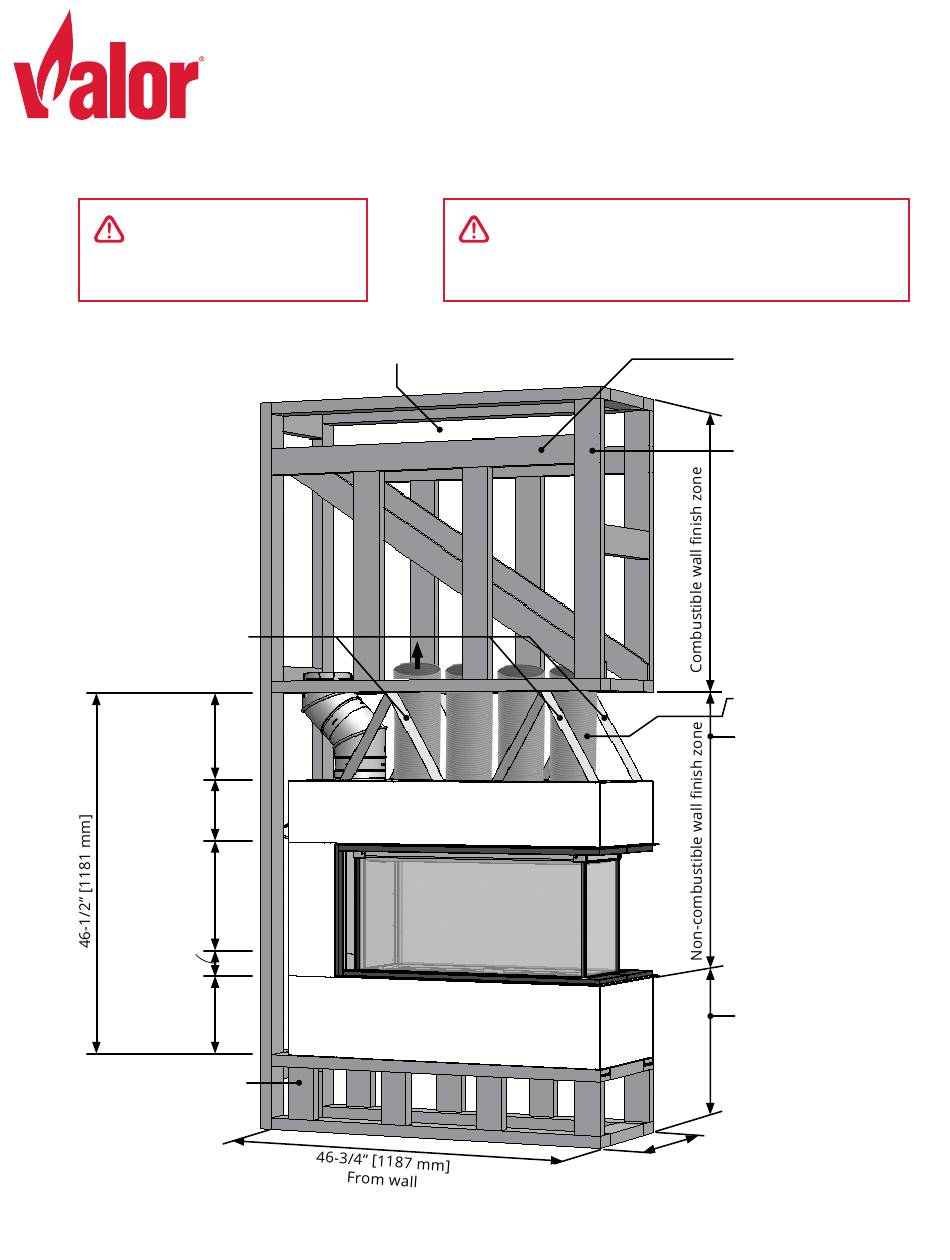

Framing - Wood
WARNING
Ensure weight of wall above is
NOT carried by the appliance.
Zero clearance stand-
offs (2 front, 2 rear).
11-1/4"
[286 mm]
[204 mm]
15"
[381 mm]
2"
[51 mm]
10-1/4"
[261 mm]
Combustible framing
material allowed.
LX1
HeatShift plenum or duct plates framing
required (top, front, or sides).
8"
WARNING
There are restrictions for where drilling and
screwing may take place. See Installer's Manual.
June 2019
Requires steel stud
under outlet open-
ing when using LDK4
plenum.
Combustible framing
material.
HeatShift pipes (4)
5" Ø connect to
plenum or termina-
tion plates above,
see "Appendix D" of
Installer's Manual.
1/2" [13 mm] non-
combustible cement
board required in this
zone. May be covered
with max. 3/4" [19 mm]
combustible finish.
Combustible projec-
tions must otherwise
conform to allowable
clearances. See "Clear-
ances to Combustibles"
in Installer's Manual.
Max 1-1/4" [32 mm]
thickness combustible
wall finish allowed, if
within 4" of opening.
18-1/2"
[470 mm]
1/2
