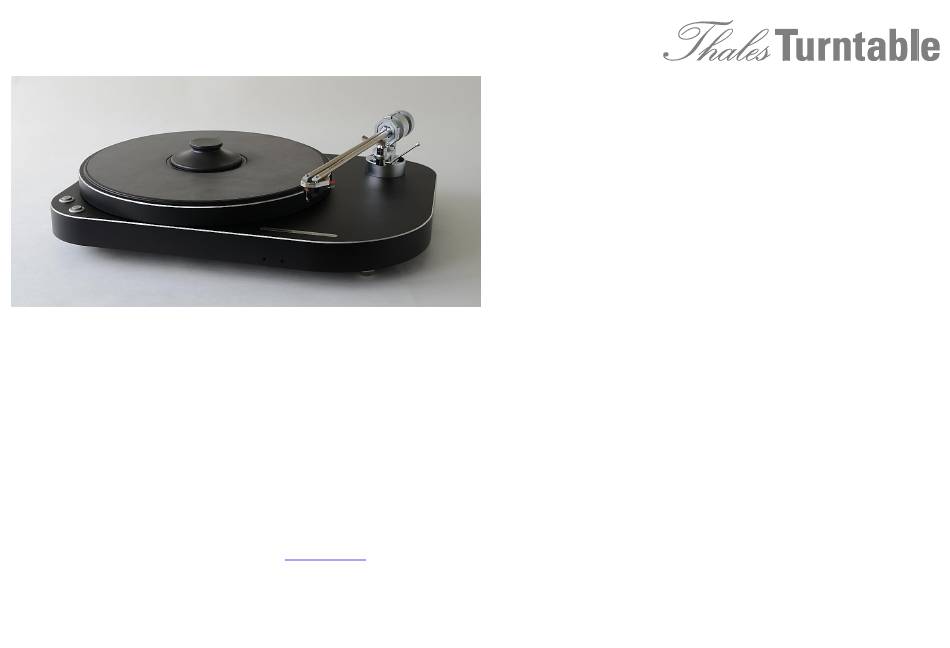

TTT-Compact II
Dear Client,
Congratulations to your new turntable TTT-Compact II. This unit allows analogue playback on
the highest level because of compact design and careful engineering in every detail. Please fol-
low this manual carefully step by step, for getting advantage of all possibilities offered by your
new turntable.
Please take your time to assemble, install and adjust the TTT-COMPACT II carefully. Your dealer
will be ready to assist you. The TTT-C is a mechanical precision instrument. Please beware of
using high forces or hits to this unit.
You will find actual information about our products on www.tonarm.ch.
Page 1/10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Thales TTT-Compact II
Summary of Contents for Thales TTT-Compact II
- Page 1 Please take your time to assemble, install and adjust the TTT-COMPACT II carefully. Your dealer will be ready to assist you. The TTT-C is a mechanical precision instrument. Please beware of using high forces or hits to this unit.
- Page 2 Page 2/10...
- Page 3 Please take out the platter carefully and place it on a suitable base. After taking out the second layer of the packaging, the last layer will be visible. This layer con- tains the main chassis of the TTT-Compact II. Please take out the cassis and place it horizontally on a suitable base.
- Page 4 2) Transport-lock main bearing The main bearing of the TTT-Compact II is locked during transport to prevent damages to the bearing caused by vibration. This locking mechanism lifts the sub-platter slightly and keeps it in position. To release the transport lock, please follow the following steps: 1.
- Page 5 3) Transport-lock drive unit The drive-unit of the TTT-Compact II is featured with a locking mechanism in order to prevent it from vibration and movement. To release the transport-lock, please follow the following steps: 1. Release 2x locking-screw (1) carefully and take them out...
- Page 6 4) Installing platter The main-platter (1) is bearing freely on the sub-platter (2). During assembling, please make sure to guide the main-platter exactly vertically on the sub-platter. The main-platter has an inlay of a specified high density mat (3). Please take care on this mat for not destroying it during installation.
- Page 7 Set the level Place the unit on an even and horizontal base. The level of the TTT-Compact II can be set by turning the spikes in and out of the main chassis. Please use a level gauge to level the unit exactly horizontal.
- Page 8 5) Internal power supply TTT-Compact II The TTT-Compact II is fitted with a high-power-battery-pack. The turntable is driven by the Standby: The unit is ready to be started by internal power supply only. The external charger is to be used for charging the battery only.
- Page 9 If re-adjusting is needed, use the specific adjusting-key (1) deliv- ered with the TTT-Compact II. The adjusting-key is set thru the hole at the front of the TTT-Compact II and connected to the internal potentiometer. Turning the key clockwise will decrease; turning it anticlockwise will increase the speed of the platter.
-
Page 10: Specifications
9) Specifications Turntable specs. - Decoupled drive unit with BLDC motor - Belt-guidance with three flywheels - High-precision bearing, hardened - High density mat as platter inlay - Decoupling ball element feet - Integrated batteries and drive electronics - Clamp with high density inlay - Available in two colours: bronze or black with silver edges Technical specs.
