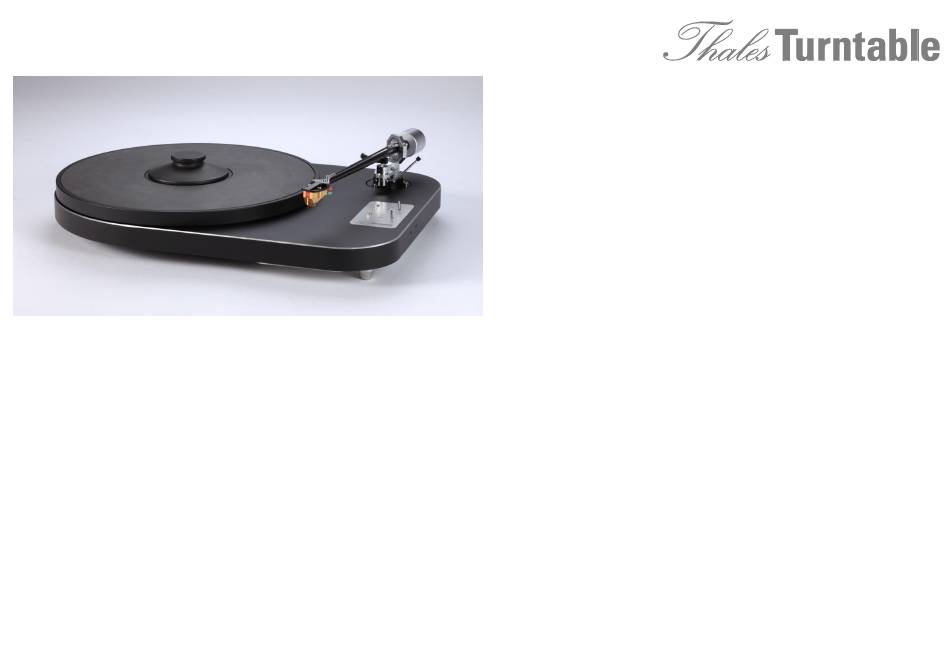

Dear Client,
Congratulations to your new turntable TTT-Slim (TTT-S). This unit allows analogue playback on
the highest level because of compact design and careful engineering in every detail. Please
follow this manual carefully step by step for getting advantage of all possibilities offered by
your new turntable.
Please take your time to assemble, install and adjust the TTT-S carefully. Your dealer will be
ready to assist you. The TTT-S is a mechanical precision instrument. Please beware of using
high forces or hits to this unit.
Seite 1 / 8
Advertisement
Related Manuals for Thales TTT-Slim
Summary of Contents for Thales TTT-Slim
- Page 1 TTT-Slim Dear Client, Congratulations to your new turntable TTT-Slim (TTT-S). This unit allows analogue playback on the highest level because of compact design and careful engineering in every detail. Please follow this manual carefully step by step for getting advantage of all possibilities offered by your new turntable.
- Page 2 Clamp 1) Unpacking TTT-S The packaging of this unit consists of three layers. Please open the main packaging and take out the following items carefully: Clamp External charger Accessories: belt for replacement, screwdriver to adjust speed Please place these items well ordered to the side, so they are ready to be used during installa- tion of the turntable.
-
Page 3: Releasing The Transport Lock
2) Releasing the transport lock The main bearing of the TTT-S is locked during transport to prevent damages to the bearing caused by vibration. This locking mechanism lifts the sub-platter slightly and keeps it in posi- tion. To release the transport lock, please follow the following steps: 1. - Page 4 3) Installing platter The main-platter is bearing freely on the sub-platter. During assembling, please make sure to guide the main-platter exactly vertically on the sub-platter. The main-platter has an inlay of a specified high density mat. Please take care on this mat for not destroying it during installa- tion.
- Page 5 4) Installing Tonarm For assembling the tonearm, please follow the manual of the tonearm itself carefully. Depending on the configuration of your turntable and tonearm, the base for the tonearm might be configured differently. Set the level Place the unit on an even and horizontal base. The level of the TTT-S can be set by turning the spikes (1) in and out of the main chassis.
- Page 6 5) Internal Power Supply TTT-S Charge: If the external charger is connected, The TTT-S is fitted with a high-power-battery-pack. The turntable is driven by the internal the battery will be charged. The charge state power supply only. The external charger is to be used for charging the battery only. is shown on the external charger.
- Page 7 6) Setting and Adjusting Speed Use the switch (1) to start the platter turning on the depending speed. In the medium posi- tion, the device is set to the standby mode. An orange LED shows the currently active speed. The speed of the turntable was set in our factory using most precise equipment. This setting is stable for a long time period.
-
Page 8: Specifications
9) Specifications Technical specifications - Turntable speed: 33 ⅓ U/min, 45 U/min - Wow and flutter at 33 ⅓ rpm, DIN45 507: ±0,06% - Rumble: -58dB (unweighted) - Weight: 11 kg - Voltage charger: 100-240V, 50-60Hz - Batter service life: 20h Turntable specification - 3-phase motor underneath platter - Short belt drive system with flywheel...
