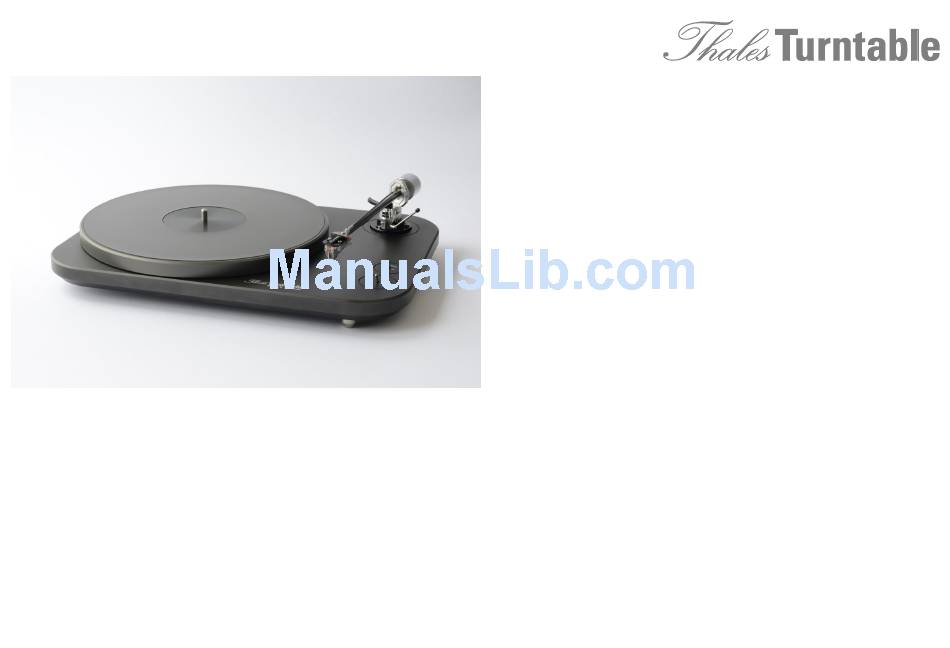

User Manual TTT-Slim II
Dear Client,
Congratulations to your new turntable TTT-Slim II. This unit allows analogue playback on the
highest level because of compact design and careful engineering in every detail. Please follow
this manual carefully step by step for getting advantage of all possibilities offered by your new
turntable.
Please take your time to assemble, install and adjust the turntable and tonearm carefully. Your
dealer will be ready to assist you. The TTT-Slim II is a mechanical precision instrument. Please
beware of using high forces or hits to this unit.
The TTT-Slim II is usually delivered including our tonearm Thales Easy. For the tonearm, please
refer to its own user manual.
Seite 1 / 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Thales TTT-Slim II
Summary of Contents for Thales TTT-Slim II
- Page 1 Please take your time to assemble, install and adjust the turntable and tonearm carefully. Your dealer will be ready to assist you. The TTT-Slim II is a mechanical precision instrument. Please beware of using high forces or hits to this unit.
- Page 2 1) Unpacking TTT-Slim II The packaging of this unit consists of several layers. Please open the main packaging, take out the content and place it carefully on an even base, so it is ready for installation. Accessory-box Tonearm-fixation The top layer of the packaging holds the accessory-box. Inside are the user-manuals and all Now the tonearm is visible;...
- Page 3 Now carefully remove the second layer of the packaging by sliding it upwards with the other Now the main chassis of the turntable is visible. hand. Remove the tonearm-fixation by sliding it away along the arm-tube horizontally. Make sure the tonearm-fixation is hold in position and not removed. Seite 3 / 10...
- Page 4 Gegengewichte Tonarm Ladegerät Lift up the turntable-chassis together with the tonearm. Make sure the tonearm is kept in Platter, charger and counter-weights are visible now. They can be taken out when needed position carefully in order to prevent it from slipping around. for installation.
- Page 5 2) Transport-lock main bearing The main bearing of the TTT-Compact II is locked during transport to prevent damages to the bearing caused by vibration. This locking mechanism lifts the sub-platter slightly and keeps it in position. To release the transport lock, please follow the following steps: 1.
- Page 6 3) Installing platter The main-platter is bearing freely on the sub-platter. During assembling, please make sure to guide the main-platter exactly vertically on the sub-platter. The main-platter has an inlay of a specified high density mat. Please take care on this mat for not destroying it during installation. 1.
- Page 7 Set the level Place the unit on an even and horizontal base. The level of the TTT-Slim II can be set by turning the spikes (1) in and out of the main chassis. Please use a level gauge to level the unit exactly hori-zontal.
- Page 8 Charge: If the external charger is connected, the bat- The TTT-Slim II is fitted with a high-power-battery-pack. The turntable is driven by the in- tery will be charged. The charge state is ternal power supply only. The external charger is to be used for charging the battery only.
- Page 9 If re-adjusting is needed, use the screwdriver delivered with the TTT-Slim II. The screwdriver is set thru the hole at the right side of the TTT-Slim II and connected to the internal potentiometer. Turning the key clockwise will decrease; turning it counter clockwise will increase the speed of the platter.
- Page 10 - high density mat as platter inlay - decoupling ball element feet - integrated drive electronics - anthrazit anodized finish Options - Adapter for dif. Tonearms 9“ - Isolations-platform - Thales Phono-cable - Clamp with high density inlay Seite 10 / 10...
