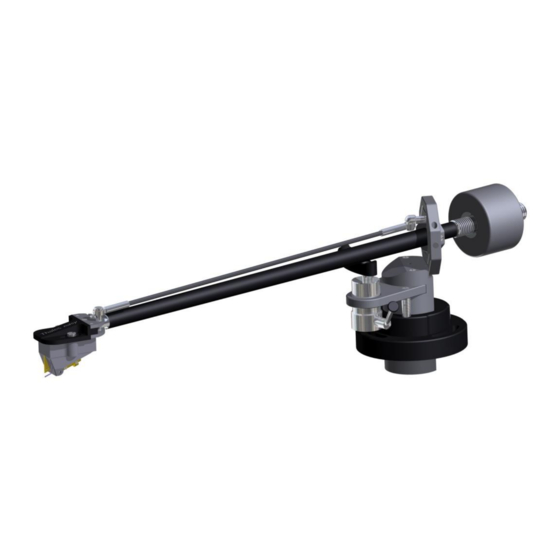

User manual THALES EASY
Dear user
Thank you for using the THALES EASY. This tonearm is designed differently than all other
tonearms. If you follow this manual accurately the most precise analogue playback is ensured.
Take your time to assemble, install and adjust the EASY. Please remember to work carefully
and to follow the instruction manual step by step. Beware of using high forces or hits to this
micromechanical unit.
You will find actual information about our products on www.tonarm.ch.
Seite 1 / 6
Advertisement
Table of Contents
Related Manuals for Thales EASY
Summary of Contents for Thales EASY
- Page 1 User manual THALES EASY Dear user Thank you for using the THALES EASY. This tonearm is designed differently than all other tonearms. If you follow this manual accurately the most precise analogue playback is ensured. Take your time to assemble, install and adjust the EASY. Please remember to work carefully and to follow the instruction manual step by step.
- Page 2 5) Base-ring: this item is to be installed on the turntable and includes the locking-screw for the VTA adjustment. 4) Tonearm 6) Counter-weights: The EASY is delivered with two different counter-weights to bal- ance a wide range of cartridges. 5) Base-ring...
- Page 3 Screws-Base 2) Installing the tonearm If the EASY has been delivered together with our turntable, the base-ring has been installed Base-ring on the turntable already and you can skip step 1 to 4. Make sure the turntable and the tonearm-base are manufactured according to our specifica- tions.
- Page 4 3) Adjusting the VTA The tonearm should always be parallel to the record-surface. The VTA (Vertical Tracking Angle) has an influence on the sound. It can be adjusted easily and precisely, even while playing. 1) Please release the locking-screw and make sure the tonearm-unit moves up and down freely.
- Page 5 5) Installing the cartridge The design of the EASY is based on a geometry which is different from all principles known so cartridge-screws far. Therefore, for the installation of the cartridge, it is important to use the protractor deliv- ered with the arm.
- Page 6 6) Setting the tracking force With the Easy we deliver two counter-weights, fitting for light or heavy cartridges. The coun- ter weight is moved by screwing it towards the bearing unit to decrease the tracking force and vice versa. Please use a proper tonearm-gauge to measure the tracking force.
