Summary of Contents for Thales TTT

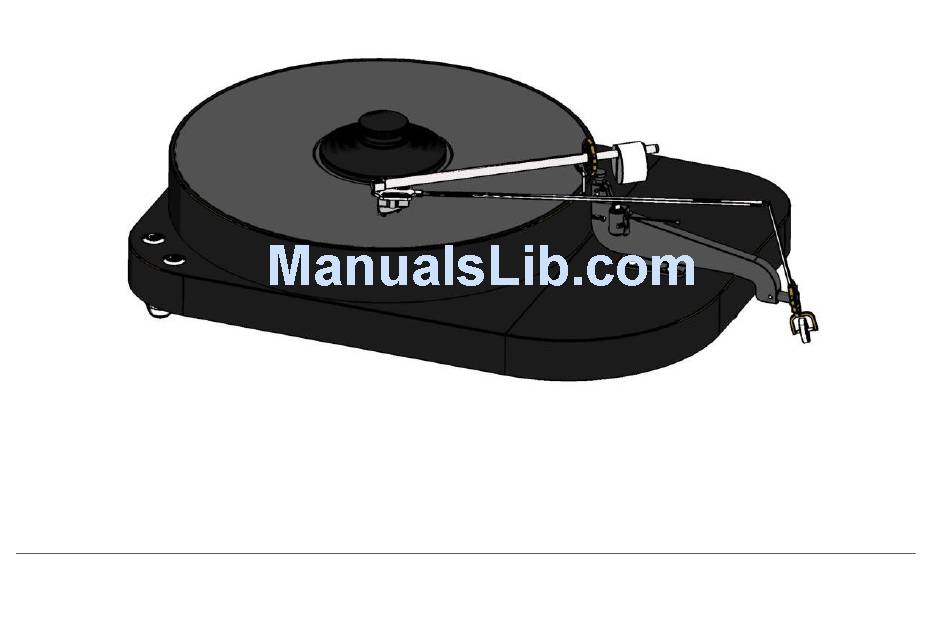

  • Page 1 Short Manual Installation TTT 1. General notes TTT 2. Unpacking 3. Release transport lock 4. Install the platter 5. Set the level 6. Install the tonearm...
  • Page 2 The speed has been pre-adjusted using professional measurement equipment with a reference frequency. If you want to re-adjust the speed, please only use the custom-made screwdriver delivered with the TTT. The clamp uses a spring loaded mechanism to make sure the record is not pressed on the platter with high forces. This means, you can tighten the clamp to the arresting point for best result.
  • Page 3 3. Release the transport lock During transport, the bearing o the TTT is locked by the two lockers to prevent any damage to the bearing. For any transport, please make sure to re-lock the bearing. Warning: never transport the TTT with the platter mounted, to prevent damage to the main bearing! Please loose the four screws of the lockers, using the 5mm hexagon key.
  • Page 4 4. Install the platter The main-platter is lying on the sub-platter. For installing, please move the main platter carefully and slowly on the sub-platter. Make sure to hold the main- platter absolutely lateral all the time. If the main-platter is properly installed, there is a gap of around 1mm between its lower surface and the chassis. Main-platter Sub-platter Chassis...
  • Page 5 5. Set the level The level of the TTT can be adjusted by turning the three adjustable spikes. Turn them clockwise to make the level higher. Please use the water-level to adjust the level correctly. Adjustable spikes 6. Install the tonearm Take away the connection-terminal using the 1.3mm hexagon key.
