Dear Client,

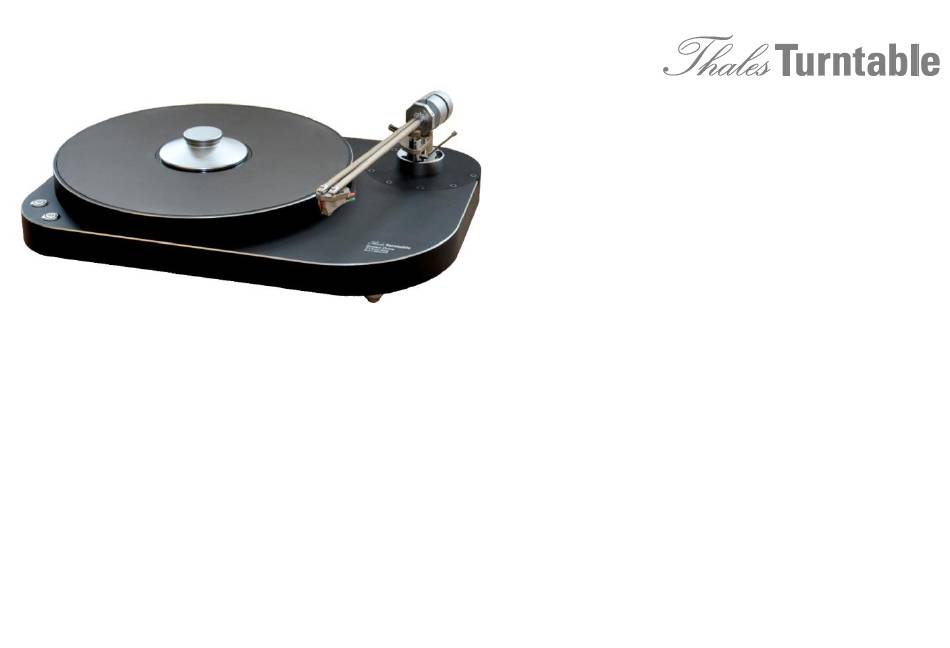

Congratulations to your new turntable TTT-Compact (TTT-C). This unit allows analogue play-
back on the highest level because of compact design and careful engineering in every detail.
Please follow this manual carefully step by step for getting advantage of all possibilities of-
fered by your new turntable.
Please take your time to assemble, install and adjust the TTT-C carefully. Your dealer will be
ready to assist you. The TTT-C is a mechanical precision instrument. Please beware of using
high forces or hits to this unit.
Seite 1 / 8
Advertisement
Related Manuals for Thales TTT-Compact
Summary of Contents for Thales TTT-Compact
- Page 1 Dear Client, Congratulations to your new turntable TTT-Compact (TTT-C). This unit allows analogue play- back on the highest level because of compact design and careful engineering in every detail. Please follow this manual carefully step by step for getting advantage of all possibilities of- fered by your new turntable.
- Page 2 1) Unpacking TTT-C The packaging of this unit consists of three layers. Please open the main packaging and take out the following items carefully: 1. Clamp 2. External charger 3. Power-adapter for external charger (country-specific) 4. Ground-wire, screws 5. Hex key wrenches (5.0 / 2.5 / 1.3), Adjusting-key Please place these items well ordered to the side, so they are ready to be used during installa- tion of the turntable.
-
Page 3: Releasing The Transport Lock
2) Releasing the transport lock The main bearing of the TTT-C is locked during transport to prevent damages to the bearing caused by vibration. This locking mechanism lifts the sub-platter slightly and keeps it in posi- tion. To release the transport lock, please follow the following steps: 1. - Page 4 3) Installing platter The main-platter (1) is bearing freely on the sub-platter (2). During assembling, please make sure to guide the main-platter exactly vertically on the sub-platter. The main-platter has an inlay of a specified high density mat (3). Please take care on this mat for not destroying it during installation.
- Page 5 4) Installing TTT-C Tonearm 2.5mm For assembling the tonearm, please follow the manual of the tonearm itself carefully. The tonearm-base of the TTT-C is mounted with 8 screws (1). For soldering the internal wiring of the tonearm, the outlet-terminal can be disassembled by losing the 4 screws (2). Depending on the configuration of your turntable and tonearm, the electrical connection has been made already.
- Page 6 5) Internal Power Supply TTT-C Standby: The unit is ready to be started by The TTT-C is fitted with a high-power-battery-pack. The turntable is driven by the internal the push-buttons at the front (33/45). The power supply only. The external charger is to be used for charging the battery only. external power supply is disconnected elec- Please refer to the table on the right.
- Page 7 6) Setting and Adjusting Speed The two push-buttons at the front, labelled with “33” and “45” are to be used to start and stop the platter on the speed indicated. The push-buttons do have an integrated light, show- ing the actual status of the turntable: Blinking single light: acceleration phase of the platter Steady: Platter turns on the speed indicated Blinking both lights: Battery needs to be charged.
-
Page 8: Technical Specifications
9) Technical specifications Technical specifications - Turntable speed: 33 ⅓ U/min, 45 U/min - Wow and flutter at 33 ⅓ rpm, DIN45 507: ±0,06% - Rumble: -58dB (unweighted) - Weight: 16 kg - Voltage charger: 100-240V, 50-60Hz Turntable specification - 3-phase motor underneath platter - Short belt drive system with flywheel - High-precision bearing, hard chrome-plated - High density mat between platter and record...
