LOW PROFILE SCONCE
LPS SERIES – SEMI-RECESSED MOUNT – NEW CONSTRUCTION
INSTALLATION INSTRUCTIONS

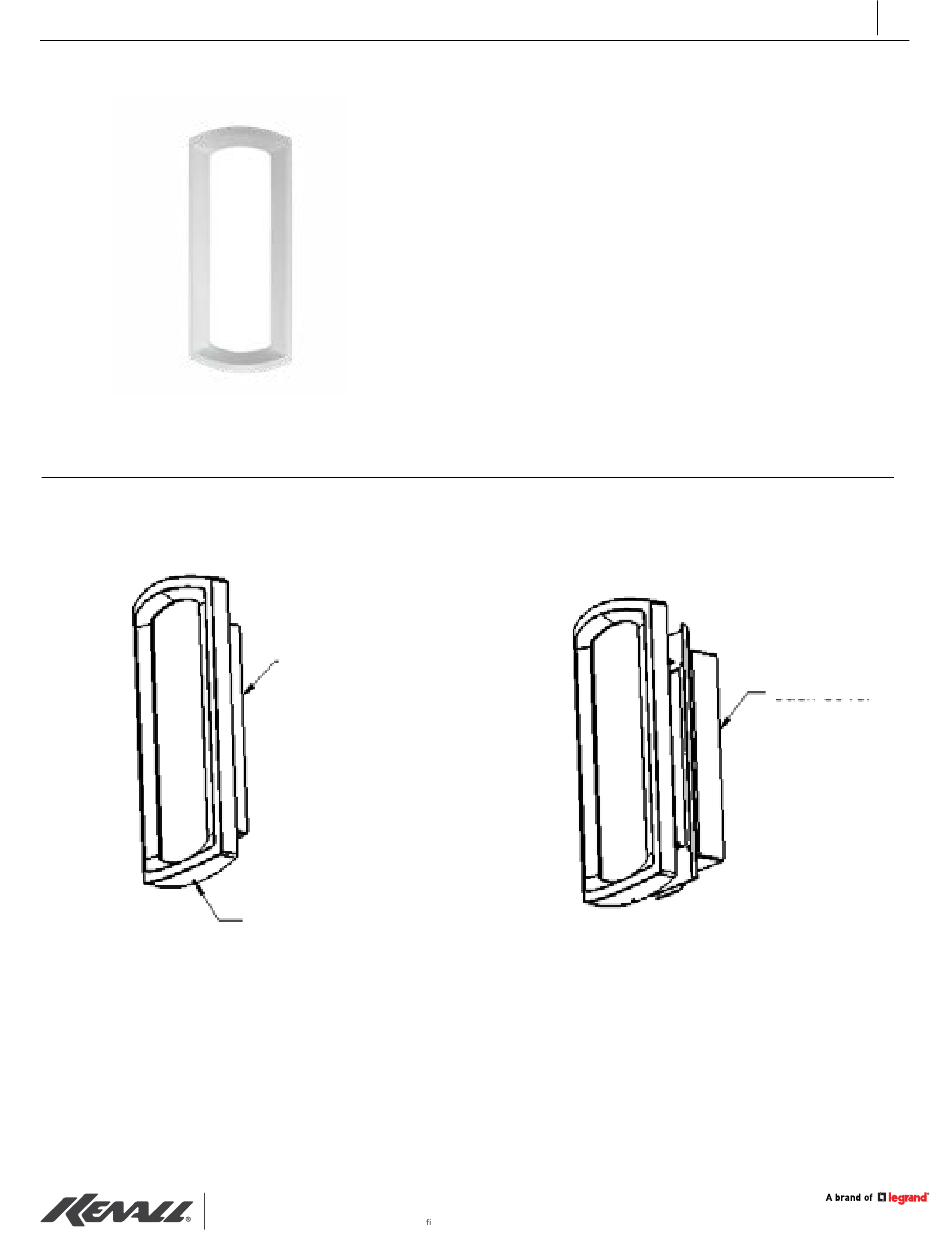

1. Back out screw(s) at bottom or side of housing
until baseplate can be easily removed.
www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA
This product complies with the Buy American Act: manufactured in the United Stateswith more than 50% of the component cost of US origin It may be covered by patents
found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details. ©2019 Kenall Mfg. Co.
™
Back Cover
Screw
INSTALLATION INSTRUCTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH
ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT
TO AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS
AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE
FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS
2. Remove baseplate.
1
Back Cover
LPS_F-5290_090418
Advertisement
Table of Contents
Related Manuals for LEGRAND Kenall LOW PROFILE SCONCE LPS Series
Summary of Contents for LEGRAND Kenall LOW PROFILE SCONCE LPS Series
-
Page 1: Important Safeguards
INSTALLATION INSTRUCTIONS LOW PROFILE SCONCE ™ LPS SERIES – SEMI-RECESSED MOUNT – NEW CONSTRUCTION IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed, including the following: THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. - Page 2 INSTALLATION INSTRUCTIONS 3. Mount Back-box and Hanger Bars. a. Remove knockouts as needed. b. Mount back-box to hanger bars using the screws and brackets supplied with the fixture. c. Install hanger bar assembly. Use four screws per hanger bar (supplied by others). Note: Remember to use non-ferrous hardware when installing MRI fixtures.
- Page 3 INSTALLATION INSTRUCTIONS 5. Make electrical connections. Disconnect facility power to the electric power supply leads. Connect fixture leads to power supply leads using connectors suitable for the gage and number of wires being used (not included). MRI Fixtures: a. If a 0-10V dimming circuit is to be connected, install at this time. The 0-10V dimmer must be installed outside the shielded MRI environment with the Kenall MRIFD-1A dimming line filter (or equivalent) installed in accordance with the supplied installation instructions.
- Page 4 INSTALLATION INSTRUCTIONS 6. Install fixture. Top of housing over top of housing's hooks. 7. Tighten screw at bottom of housing. Mounting Hooks Top of housing (No hole) Screw CUSTOMER SERVICE For technical assistance, call 1-800-4KENALL (1-800-453-6255). WARRANTY For warranty information visit www.kenall.com/Resources/Certified-Performance-Warranties www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA This product complies with the Buy American Act: manufactured in the United Stateswith more than 50% of the component cost of US origin It may be covered by patents found at www.kenall.com/patents.
