I N S T A L L A T I O N I N S T R U C T I O N S

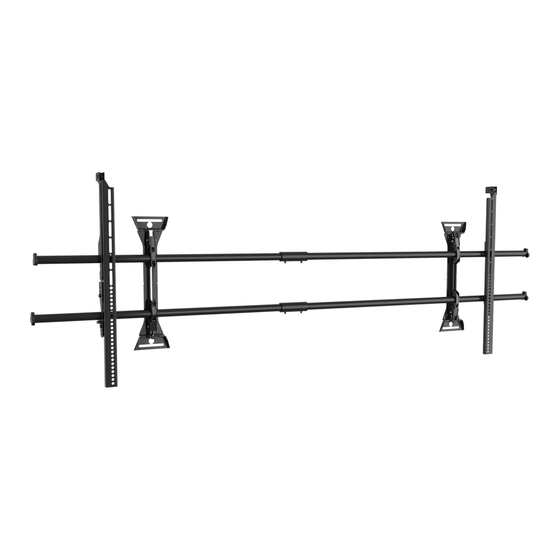

JUPITER PANA105 XX-LARGE
MICRO-ADJUST WALL MOUNT
KITXWXSM1U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHIEF KITXWXSM1U and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND CHIEF KITXWXSM1U

Summary of Contents for LEGRAND CHIEF KITXWXSM1U

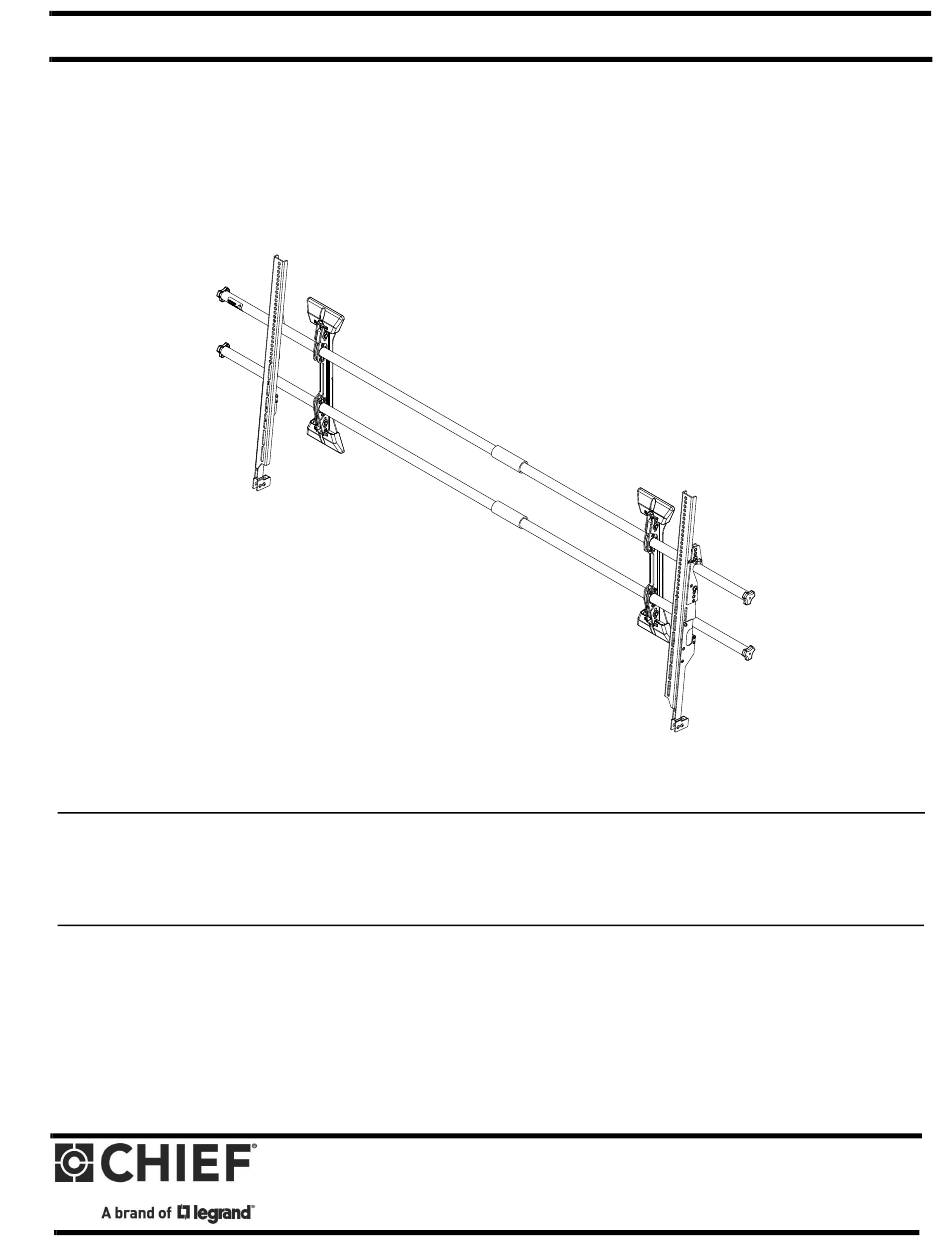

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S JUPITER PANA105 XX-LARGE MICRO-ADJUST WALL MOUNT KITXWXSM1U...

  • Page 2: Important Safety Instructions

    The combined component weight limit remains 250 lbs product. The information contained in this document is subject (113.4 kg) when using with the FCAXV1U Pull-Out to change without notice or obligation of any kind. Legrand Accessory. makes no representation of warranty, expressed or implied, regarding the information contained herein.
  • Page 3 Installation Instructions KITXWXSM1U DIMENSIONS PIPE REINFORCEMENT COLLARS ANGLE 1. MAXIMUM MOUNTING PATTERN IS 74.2" (1885 mm) WITHOUT REVERSING UPRIGHTS 2. MAXIMUM MOUNTING PATTERN IS 76.9" (1954 mm) WITH REVERSING UPRIGHTS 3. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK ENGAGEMENT IS 0.75" (19 mm) 1°...
  • Page 4 KITXWXSM1U Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...

  • Page 5: Tools Required For Installation

    Installation Instructions KITXWXSM1U TOOLS REQUIRED FOR INSTALLATION 1/8" (included) 5/32" (included) 1/2" 7/32" (5.5mm) Wood Stud 3/16" x 10" (included) 3/8" (9.5mm) Concrete PARTS Wall Mounting Hardware Kit [Included in hardware box] Universal Hardware Kit D (4) A (4) B (4) C (4) K (4) M8 x 12mm...

  • Page 6: Installation

    KITXWXSM1U Installation Instructions INSTALLATION Position collars (BB) over the seams between rails and install two 1/4"-20 set screws (AA) into each collar. Rotate rails to position screws towards underside of assembly. The KITXWXSM1U mount is designed to be mounted to: (See Figure 4) •...
  • Page 7 Installation Instructions KITXWXSM1U Line up the notches on mount with center of screen marking to determine vertical center. (See Figure 4) (J) x 2 Measure up 8" (203mm) from the center point to mark location of the upper mounting slots. (L) x 4 Using a level, mark the wall on each stud to attach the mount through the upper mounting slots.
  • Page 8 KITXWXSM1U Installation Instructions (Q) x 4 (K) x 4 (L) x 4 7 10 (J) x 2 (J) x 2 Figure 6 Figure 7 Drill one 3/8" x 3-1/2" (9.5mm x 88.9mm) pilot hole at each Attaching Interface Brackets to Screen marking.
  • Page 9 Installation Instructions KITXWXSM1U If necessary, the interface brackets may be reversed. (See Figure 11) WARNING: IMPROPER INSTALLATION CAN LEAD TO a. Remove display from mount. DISPLAY FALLING CAUSING SERIOUS PERSONAL b. Remove interface brackets from display. INJURY OR DAMAGE TO EQUIPMENT! Using screws of c.
  • Page 10 KITXWXSM1U Installation Instructions IMPORTANT ! : Completely extend bottom of interface brackets (by pulling downward) to set interface brackets in Center Line (CL) SERVICE position before hanging on top rail. (See Figure 14) Hang top hook of interface brackets (W and X) onto the top rail of the mount.

  • Page 11: Horizontal Adjustment

    Installation Instructions KITXWXSM1U Hook Adjustments Figure 15 Horizontal Adjustment OPTIONAL: Adding Pull Knob If necessary due to height of tall screen, add pull knob (R) to The mount wall brackets may be adjusted side-to-side at bottom of interface brackets (W and X) to allow easier the point of attachment.
  • Page 12 KITXWXSM1U Installation Instructions Backwards Angle Compensation Roll/Height Adjustment of Wall Brackets The mount may be slightly adjusted to help compensate for the NOTE: The height adjust wall brackets allow adjustment of forward tilt of a heavy screen. + 1/2" (12.7mm). NOTE: The interface brackets (W and X) ship in the 0°...
  • Page 13 Installation Instructions KITXWXSM1U Attaching to FCAXV1U (Optional) The KITXWXSM1U mount may be used with the UL Listed FCAXV1U Fusion pull-out accessories. Reference the (P) x 2 Installation Manual included with FCAVX1U for full installation process. (See Figure 22) NOTE: The combined component weight limit remains 250 lbs/ 113.4 kg when used with the FCAXV1U Pull-Out Accessory.
  • Page 14 KITXWXSM1U Installation Instructions...
  • Page 15 Installation Instructions KITXWXSM1U...

  • Page 16: Installation Instructions

    F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-003348 Rev01 18-24 Shan Mei Street 2022 Legrand | AV Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 03/2022 F 852 2145 4477...
