Protekt AZ 410 Instruction Manual

,
a full body harness is the only acceptable body holding device that can be used in a fall arrest system.
!
in full body harness use only attaching points marked with big letter "A" to attach a fall arrest system.
!
the anchor device or anchor point for the fall arrest system should always be positioned, and the work carried out in such a way, as to minimise both the potential for falls and potential fall distance. The anchor
!
device/point should be placed above the position of the user . The shape and construction of the anchor device/point shall not allowed to self-acting disconnection of the equipment. Minimal static strength of the
anchor device/point is 12 kN. It is recommended to use certified and marked structural anchor point complied with EN795.
it is obligatory to verify the free space required beneath the user at the workplace before each occasion of use the fall arrest system, so that, in the case of a fall, there will be no collision with the ground or other
!
obstacle in the fall path. The required value of the free space should be taken from instruction manual of used equipment.
there are many hazards that may affect the performance of the equipment and corresponding safety precautions that have to be observed during equipment utilization, especially:
!
- trailing or looping of lanyards or lifelines over sharp edges,
- any defects like cutting, abrasion, corrosion,
- climatic exposure,
- pendulum falls,
- extremes of temperature,
- chemical reagents,
- electrical conductivity.
personal protective equipment must be transported in the package (e.g.: bag made of moisture-proof textile or foil bag or cases made of steel or plastic) to protect it against damage or moisture.
!
the equipment can be cleaned without causing adverse effect on the materials in the manufacture of the equipment. For textile products use mild detergents for delicate fabrics, wash by hand or in a machine and
!
rinse in water. Plastic parts can be cleaned only with water. When the equipment becomes wet, either from being in use or when due cleaning, it shall be allowed to dry naturally, and shall be kept away from direct
heat. In metallic products some mechanic parts (spring, pin, hinge, etc.) can be regularly slightly lubricated to ensure better operation.
Other maintenance and cleaning procedures should be adhered to detailed instructions stated in the manual of the equipment.
personal protective equipment should be stored loosely packed, in a well-ventilated place, protected from direct light, ultraviolet degradation, damp environment, sharp edges, extreme temperatures and corrosive or
!
aggressive substances.
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED. THE
IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR
PROTECTIVE EQUIPMENT. ANY INFORMATION ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF
EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD BY A COMPETENT PERSON. THE IDENTITY CARD
SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT UTILIZATION DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY
CARD. ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.
IDENTITY CARD
MODEL AND TYPE OF EQUIPMENT
REF. NUMBER
SERIAL NUMBER
USER NAME
DATE OF PURCHASE
PERIODIC EXAMINATION AND REPAIR HISTORY
REASON FOR
DATE
ENTRY PERIODIC EXAMINATION
OR REPAIR AND OTHER REVELANT INFORMATIONS
1
2
3
4
PROTEKT, 93-403 LODZ,
ul. Starorudzka 9, POLAND,
TEL: (48 42) 680 20 83, FAX: (48 42) 680 20 93
www.protekt.com.pl
DATE OF MANUF.
DATE OF PUTTING
INTO OPERATION
DEFECTS NOTED, NAME AND SIGNATURE
REPAIRS CARRIED OUT OF COMPETENT PERSON
Notified body, at which the European certification
was performed and which supervises
the production of the equipment:
APAVE SUDEUROPE SAS - BP 193 - 13322 MARSEILLE CEDEX 16 - FRANCE
Instruction Manual
EN 354:2010
EN 795:2012 TYPE B
The AZ410 connecting lanyard can be used as:
a component of personal fall arrest equipment which is used as the temporary anchor device (tested to EN795 type B).
!
device is used as part of a fall arrest system, the user has to be equipped with a means of limiting the maximum dynamic forces exerted on
the user during the arrest of a fall to a maximum of 6 kN.
or
a component of personal fall arrest equipment as a lanyard (tested to EN354) in conjuction with energy absorber. Fall arrest system
!
consisted of energy absorber (complied with EN 355) connected to connecting lanyard AZ410 (complied with EN 354) attached
to the full body harness (complied with EN 361) and connected to the structural anchor point (complied with EN 795) can be used
as a basic personal protective equipment against falls from a height. T
energy absorber, terminations and connectors shall not exceed 2 m.
Connecting lanyard AZ 410 is intended to be used by one person use only.
Connecting lanyard AZ410 should only be used for personal fall protection equipment and not for lifting equipment

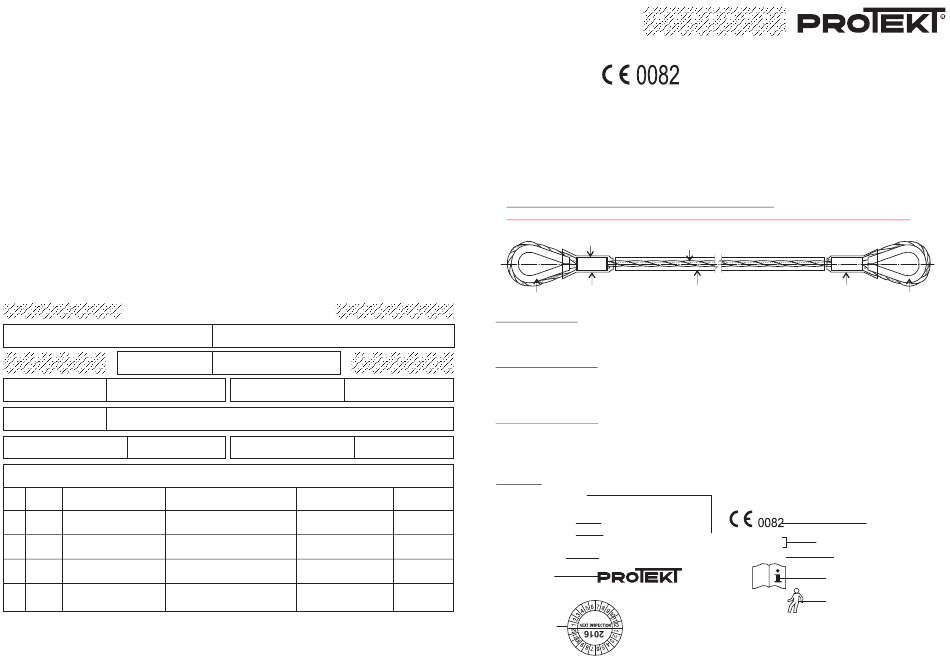

identity label
aluminium wire rope
steel thimble
MAXIMUM LIFETIME
The AZ410 lanyard's lifetime is
usage. Using the lanyard in rough environment, marine environment, contact with sharp edges, exposure to extreme temperatures or
agressive substances, etc. can lead to the wthdrawal from use even after one use.
PERIODICAL INSPECTION
At least once a year (after every 12 months of use), the lanyard shall be subject to periodical inspection. The periodical inspection must
be carried out by a suitably qualified, competent person, responsible for the periodical inspections of protective equipment at the given
site. The periodical inspection can be carried out also by the manufacturer or his authorized representative. Every periodical inspection
must be recorded in the Identity Card of the equipment.
WITHDRAWAL FROM USE
The AZ410 lanyard shall be withdrawn from use and destroyed to avoid incidental reuse when:
It has been used to arrest a fall.
!
It fails to pass inspection. There are any doubt as to its reliability.
!
The lanyard shall be withdrawn from use by the person who is responsible for the protective equipment at the given site.
MARKING
PERIODIC length of the lanyard
EXAMINATION
in metres
NEXT DUE DATE
type of the device
reference number
month and year
of manufacture
(mm - yy)
manufacturer
or distributor
next inspection
marking label
Ref. AZ 410
he total length of
galvanised steel wire
rope ø8 mm
plastic, transparent
socket protective tube
indefinite. The lanyard's maximum lifetime depends on the intensity of usage and the environment of
CONNECTING
LANYARD
Ref.: AZ 410 Length: x,x m
EN 354:2010
EN 795:2012 / B
Serial No.XXX XXX
Mfg date: MM-YY
max. 1 x
month and year of the manufacturer's
next inspection
2015 Don't use the device after this date
Attention: Before the first use
mark the date of the first inspection
(date of first use +12 months,
e.g. first use 01.2015 - mark inspection 01.2016)
CONNECTING
L A N YA R D
When the anchor
this sub-system with a lanyard including an
aluminium wire rope
socket steel thimble
CE marking with identity number
of the notified body controlling
manufacturing of the equipment
(the article 11)
European standards (number/year/type)
number
of manufacturing series
caution: read the manual
admissible use for one person
only
