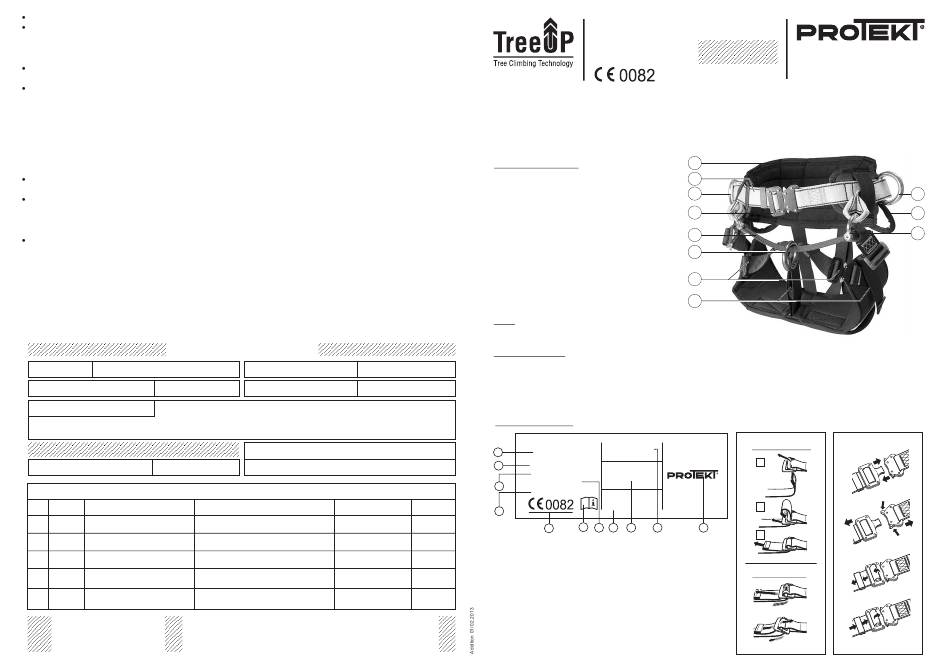

Protekt TH-050 Instruction Manual

a full body harness is the only acceptable body holding device that can be used in a fall arrest system.
the anchor device or anchor point for the fall arrest system should always be positioned, and the work carried out in such a way, as to minimise both the potential for falls and
potential fall distance. The anchor device/point should be placed above the position of the user . The shape and construction of the anchor device/point shall not allowed to
self-acting disconnection of the equipment. Minimal static strength of the anchor device/point is 15 kN. It is recommended to use certified and marked structural anchor point
complied with EN795.
it is obligatory to verify the free space required beneath the user at the workplace before each occasion of use the fall arrest system, so that, in the case of a fall, there will be
no collision with the ground or other obstacle in the fall path. The required value of the free space should be taken from instruction manual of used equipment.
there are many hazards that may affect the performance of the equipment and corresponding safety precautions that have to be observed during equipment utilization,
especially:
- trailing or looping of lanyards or lifelines over sharp edges,
- any defects like cutting, abrasion, corrosion,
- climatic exposure,
- pendulum falls,
- extremes of temperature,
- chemical reagents,
- electrical conductivity.
personal protective equipment must be transported in the package (e.g.: bag made of moisture-proof textile or foil bag or cases made of steel or plastic) to protect it against
damage or moisture.
the equipment can be cleaned without causing adverse effect on the materials in the manufacture of the equipment. For textile products use mild detergents for delicate
fabrics, wash by hand or in a machine and rinse in water. Plastic parts can be cleaned only with water. When the equipment becomes wet, either from being in use or when
due cleaning, it shall be allowed to dry naturally, and shall be kept away from direct heat. In metallic products some mechanic parts (spring, pin, hinge, etc.) can be regularly
slightly lubricated to ensure better operation.
personal protective equipment should be stored loosely packed, in a well-ventilated place, protected from direct light, ultraviolet degradation, damp environment, sharp edges,
extreme temperatures and corrosive or aggressive substances.
The site where the equipment is used is responsible for completing the utilisation card.
The utilisation card should be filled in before the first release for use of the device.
All the information pertaining to the protective equipment (name, serial number, date of purchase and date of introduction into
use, user name, information about periodic surveys and repairs) should be included in the utilisation card of a device.
The card is filled in by the person in charge of protective equipment on site.
Pieces of personal protective equipment without a complete utilisation card must not be used.

USER CARD

DEVICE NAME
MODEL
NUMBER OF DEVICE
USER NAME
DATE OF PURCHASE
TECHNICAL SURVEYS
SURVEY DATE REASONS FOR SURVEY OR REPAIR
1
2
3
4
5
PROTEKT, 93-403 £ÓD•
ul. Starorudzka 9
APAVE SUDEUROPE SAS - CS 60193 - 13 322 MARSEILLE CEDEX 16 - France
TEL.: (+48 42) 680 20 83
FAX: (+48 42) 680 20 93
e-mail: info@protekt.com.pl
,
CATALOGUE NO.
DATE OF MANUFACTURE
DATE OF INTRODUCTION INTO USE
DAMAGES FOUND, REPAIRS PERFORMED, DATE OF NEXT SURVEY
OTHER NOTES
The European certificate issued by
NB in charge the EC certificate + 11A
France - 0082
Instruction Manual
Ref.: TH 150 01
series
Work positioning belt TH-050 is a component of the personal protective equipment for work positioning and prevention of falls from a height.
It can be used also as a sit harness. The belt complies with EN 358 (work positioning belt) and EN 813 (sit harness).
It is strictly forbidden to use work positioning belt TH-050 in fall arrest system as a full body harness.
Only a full body harness complied with EN 361 is the only acceptable body holding device that can be used in a fall arrest system.
According EN 358 - work positioning lanyard must be anchored to the point of construction that is situated at waist level or above.
Work positioning lanyard must be kept taut to restrict free movement to a maximum 0,5 m.
All textile components of sit harness TH-050 are made from polyamide and polyester yarns and fabrics, the metal parts are made from light
alloy. Inside the pads is polyethylene foam.

BASIC EQUIPMENT

1. Front attaching ring - can be utilized as a sit harness
according EN 813.
2. Attaching strap.
3. Lateral belt attaching D-rings. Can be utilized only to
attach work positioning systems according EN 358.
4. Belt strap.
5. Belt strap adjusting buckles.
6. Thigh straps.
7. Thigh straps connecting/adjusting buckles.
8. Identity label - on back belt strap
9. Belt pad.
10. Tool loop - for attaching tools and tool bags.
11. Connecting shackle

SIZES

Belt TH-050 is manufactured in three sizes:
1. small size - S; 2. medium to extra latge - M-XL; 3 extra extra large -XXL

TIME OF USAGE

There is no limit of usage time but after first five years of utilization the belt must be withdrawn from use to carry out detailed manufacturer's
inspection. The inspection can be carried out by:
- manufacturer
- or person recommended by manufacturer
- or company recommended by manufacturer.
During factory control will be established time of usage till next inspection.

BELT MARKING

TH 050
b
a WORK POSITIONING BELT
Ref.: TH 150 01
EN 358:1999
c
EN 813:2008
Max. load 100 kg
SIGNATURE OF
PERSON
e
RESPONSIBLE
j
f
a. Device type.
b. Model symbol.
c. Reference number.
d. European standards (number and year)
e. Total user weight when use harness as the sit harness (EN 813:2008)
f. CE mark and identity number of the authorized body for article 11A.
g. Month and year of manufacture.
h. Serial number of the belt.
i. Belt size.
j. Caution: read the manual
k. Marking of the manufacturer or distributor of the belt
EN 358:1999 EN 813:2008
9
4
3
5
2
1
7
6
Fasten the thigh and belt buckles,
adjust the length of the straps.
Fastening the straps
M-XL
Size:
1
Serial number:
0000000
Date of manufacture:
09.2010
2
g
d h k
i
3
Adjusting the straps
Tightening
Loosening
Work Positioning Belt
TH-050
3
10
11
Fasten
push
Unfasten
push
Shortening
Lengthening
