Protekt ABM/LB101 Instruction Manual

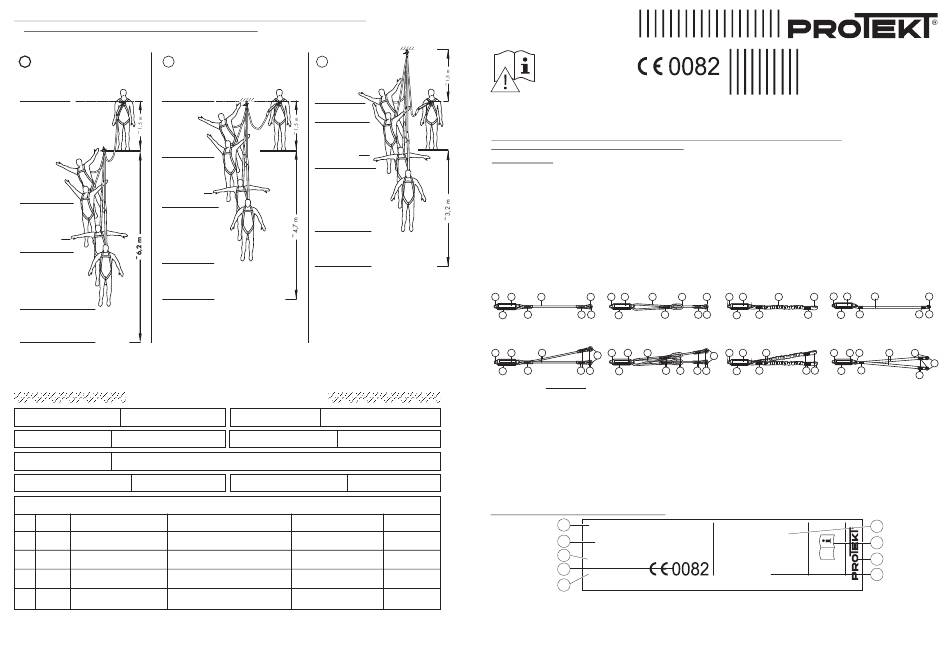

REQUIRED FREE DISTANCE BELOW WORKING LEVEL FOR WORKER PROTECTED WITH ENERGY ABSORBER WITH LANYARD
! free distance below working surface must be 6,2 m (see drawing no.1)
! drawings no.2 and no. 3 show free distance below working surface depending on location of Structural Anchor Point.
1 2
2 m - free fall
Structural Anchor Point
min. 12 kN
3,5 m - free fall
1,2 m - ultimate
elongation
of the energy
absorber
0,2 m - displacement
of the back attaching buckle
1,2 m - ultimate
elongation
of the energy
absorber
1,8 m - man height
0,2 m - displacement
of the back attaching buckle
1,8 m - man height
+1 m - security
+1 m - security
IT IS THE RESPONSIBILITY OF THE USER ORGANISATION TO PROVIDE THE IDENTITY CARD AND TO FILL IN THE DETAILS REQUIRED. THE IDENTITY CARD SHOULD BE FILLED IN BEFORE THE FIRST USE BY A
COMPETENT PERSON, RESPONSIBLE INTHE USER ORGANIZATION FOR PROTECTIVE EQUIPMENT. ANY INFORMATION ABOUT THE EQUIPMENT LIKE PERIODIC INSPECTIONS, REPAIRS, REASONS OF
EQUIPMENT'S WITHDRAWN FROM USE SHALL BE NOTED INTO THE IDENTITY CARD BY A COMPETENT PERSON. THE IDENTITY CARD SHOULD BE STORAGED DURING A WHOLE PERIOD OF EQUIPMENT
UTILIZATION. DO NOT USE THE EQUIPMENT WITHOUT THE IDENTITY CARD. ALL RECORDS IN THE IDENTITY CARD CAN BE FILLED IN ONLY BY A COMPETENT PERSON.
IDENTITY CARD
MODEL AND TYPE OF EQUIPMENT
SERIAL NUMBER
USER NAME
DATE OF PURCHASE
PERIODIC EXAMINATION AND REPAIR HISTORY
REASON FOR
DATE
ENTRY PERIODIC EXAMINATION
OR REPAIR AND OTHER REVELANT INFORMATIONS
1
2
3
4
PROTEKT
93-403 LODZ, ul. Starorudzka 9, POLAND,
TEL: (48 42) 680 20 83, FAX: (48 42) 680 20 93
www.protekt.com.pl
Structural Anchor Point
3
min. 12 kN
Structural Anchor Point
min. 12 kN
0,5 m - free fall
1,2 m - ultimate
elongation
of the energy
absorber
0,2 m - displacement
of the back attaching buckle
1,8 m - man height
+1 m - security
REF. NUMBER
DATE OF MANUF.
DATE OF PUTTING
INTO OPERATION
DEFECTS NOTED, NAME AND SIGNATURE
REPAIRS CARRIED OUT OF COMPETENT PERSON
Notified body, at which the European certification was Iissued and which supervises
the production of the equipment:
APAVE SUDEUROPE SAS - 8 rue Jean-Jacques Vernazza - Z.A.C. Saumaty-Séon
CS-60193 – 13322 MARSEILLE Cedex 16, France - No. 0082
Instruction Manual
Read carefully
the manual
before use
the equipment
The energy absorber with lanyard is a component of personal fall arrest equipment and complies with EN355.
Fall arrest system consisted of energy absorber with lanyard, attached to the full body harness (complied with EN 361) and connected to the structural
anchor point (complied with EN 795) can be used as a basic personal protective equipment against falls from a height.
Caution: The total length of the energy absorber with lanyard including terminations and connectors shall not exceed 2 m.
(e.g. connector plus lanyard plus energy absorber plus connector)
CONSTRUCTION
Energy absorber is made of 32 mm wide
to the lanyard. The body of the absorber is protected by a special jacket made of a shrinkable, polyethylene tube. The lanyard can be made of:
- 10,5 mm polyester kernmantle rope eneded with sewn loops (ABM/LB101, ABM/LB102). ø
- ø12 mm polyester kernmantle rope eneded with sewn loops (ABM/LB121, ABM/LB122).
- ø14 mm polyester kernmantle rope eneded with sewn loops (ABM/LB141).
- ø12 mm polyester kernmantle rope eneded with sewn loops. One loop is adjustable by steel adjustment buckle (ABM/LB100, ABM/2LB100).
- tubular polyamide webbing with elastic core inside. The endings of the lanyard are sewn making the attachment loops (ABM/ LE101, ABM/2 LE101).
- 30 mm polyester webbing eneded with sewn loops equipped with thimbles (ABM-T, ABM-2T)
1. absorber's attachment loop ; 2. energy absorber ; 3. lanyard ; 4. lanya
8. identity label.
ABM/LB101 Ref. BW 200/LB 101
ABM/LB121 Ref. BW 200/LB 121
ABM/LB141 Ref. BW 200/LB 141
1 8 3
2 6
ABM/LB102 Ref. BW 200/LB 102
ABM/LB122 Ref. BW 200/LB 122
1 8 3
2 6
ATTENTION! The energy absorbers can be equipped only with certified (according to EN362) connectors.
Periodic inspections
The device must be inspected at least once every 12 months from the date of first use.
Periodic inspections must only be carried out by a competent person who has the knowledge and training required for personal protective equipment
periodic inspections. Depending upon the type and environment of work, inspections may be needed to be carried out more frequently than once every
12 months. Every periodic inspection must be recorded in the Identity Card of the equipment.
Maximum lifespan of the equipment
The maximum lifespan of the energy absorber with lanyard is 10 years from the date of manufacture.
The energy absorber with lanyard must be withdrawn from use immediately and destroyed when it has been used to arrest a fall or it fails to pass inspection or
there are any doubt as to its reliability.
ATTENTION: The lifetime of the device depends on the intensity of usage and the environment of use. Using the device in rough environment, marine
environment, contact with sharp edges, exposure to extreme temperatures or agressive substances, etc. can lead to the wthdrawal from use even after one
use.
CONTENT OF THE DEVICE IDENTITY LABEL
PERIODIC
EXAMINATION A
NEXT DUE DATE
B
C
D
E
A. type of the device
B. marking of the model of energy absorber
C. reference number of the device
D. CE marking with identity number of the notified body
controlling manufacturing of the equipment
(the article 11)
EN 355:2002
polyamide webbing. Absorber is equipped with attachment loops on the endings. One of the loops is connected
rd's attachment loop ;
ABM/LB100 Ref. BW 200/LB 100 ABM/LE101
4 1 8 3 7 4 1 8
6 5 2 6 6 5 2 6
ABM/2LB100 Ref. BW 200/2 LB 100 ABM/2LE101
1 8 3 1 8
4
4
6 5 2 6 6 6 5 2 6
ENERGY ABSORBER WITH LANYARD LB101
Date
of manufacture:
ABM / LB101
Ref.: BW 200/LB101
Serial
EN 355:2002
0000001
number:
the maximum length of the energy absorber with lanyard can't exceed 2 m
E. European standards (number/year)
F. month/year of the device manufacture
G. number of the manufacturing series
H. caution: read the manual
I. marking of the manufacturer or distributor
ENERGY ABSORBER
w i t h l a n y a r d
5. thimble ; 6. lanyard's seam; 7. adjustment buckle ;
Ref. BW 200/LE 101 ABM-T Ref. BW 700
3 4 1 8 3 4
6 6 5
6 2
Ref. BW 200/2 LE 101 ABM-2T Ref. BW 800
3 1 8 6 3 5
4
6
6 4 2
6
F
03.2017
H
I
G
