Summary of Contents for HPE FlexFabric 5710 Series

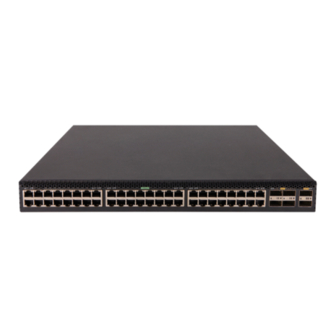

- Page 1 HPE FlexFabric 5710 Switch Series Installation Guide 5200-4984a Part number: 5200-4984a Document version: 6W103-20190403...
- Page 2 © Copyright 2019 Hewlett Packard Enterprise Development LP The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
-
Page 3: Table Of Contents
Contents Preparing for installation ···································································· 1 Safety recommendations ············································································································· 1 Examining the installation site ······································································································· 2 Temperature/humidity ·········································································································· 2 Cleanliness ························································································································ 2 EMI ·································································································································· 3 Laser safety ······················································································································· 3 Installation tools ························································································································· 3 ... - Page 4 Garbled display on the configuration terminal ·········································································· 35 Appendix A Chassis views and technical specifications ·························· 36 Chassis views ························································································································· 36 HPE 5710-54HF ················································································································ 36 HPE 5710-54HT ················································································································ 37 HPE 5710-30HF ················································································································ 39 HPE 5710-30HT ················································································································ 40 ...
-
Page 5: Preparing For Installation
Preparing for installation The HPE FlexFabric 5710 Switch Series includes the models and provides power supplies and fan trays in Table Table 1 HPE FlexFabric 5710 Switch Series models and power supplies Product code HPE description Alias HPE FlexFabric 5710 Switch Series... -
Page 6: Examining The Installation Site
When replacing FRUs, including power supplies and fan trays, wear an ESD wrist strap to avoid damaging the units. Examining the installation site The HPE FlexFabric 5710 switches must be used indoors. Mount your switch in a rack and verify the following items: •... -
Page 7: Emi
Do not stare into any fiber port when the switch has power. The laser light emitted from the optical fiber might hurt your eyes. The HPE FlexFabric 5710 switches are Class 1 laser devices. Installation tools No installation tools are provided with the switch. Prepare the following tools yourself:... -
Page 8: Installation Accessories
1 kit HPE 5710-30HT 1 U long slide rail kit (including one pair of slide rails, one pair of guide rails, and four M4 countersunk screws) All HPE FlexFabric 5710 5185-8713 1 kit switches M6 screw and floating nut User... - Page 9 Product code Description Quantity Applicable models Grounding cable All HPE FlexFabric 5710 5184-6723 switches Grounding screw All HPE FlexFabric 5710 5185-9579 switches Power supply filler module All HPE FlexFabric 5710 5190-1773 switches Removable cable tie 5185-8748 All power supplies ...
-
Page 10: Installing The Switch
Installing the switch CAUTION: Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact Hewlett Packard Enterprise for permission. Otherwise, Hewlett Packard Enterprise shall not be liable for any consequence caused thereby. Figure 1 Hardware installation flow Start Install the switch... -
Page 11: Installing The Switch In A 19-Inch Rack
Installing the switch in a 19-inch rack Installation accessories Table 5 Installation accessories Switch model Mounting brackets Rack mounting rail kit • HPE 5710-54HF • HPE 5710-30HF 1U high, one pair 1U high, including one pair of chassis rails and one • (provided). See Figure pair of long slide rails (provided). -
Page 12: Attaching The Mounting Brackets, Chassis Rails, And Grounding Cable To The Chassis
The switch provides a primary grounding point (with a grounding sign) and an auxiliary grounding point. Figure 5 Mounting bracket installation positions and grounding positions on the HPE 5710-54HF and HPE 5710-30HF switches (1) Mounting bracket installation position near the power supply side... - Page 13 (4) Mounting bracket installation position near the port side Attaching the mounting brackets and chassis rails to the chassis The mounting bracket and chassis rail installation methods are the same for the HPE 5710-54HF and HPE 5710-30HF switches. To attach the mounting brackets and chassis rails to the chassis: Align the mounting brackets with the screw holes in the chassis.
- Page 14 13). Use M4 screws (provided) to attach the chassis rails to the chassis. Figure 8 Attaching the mounting brackets and chassis rails to an HPE 5710-54HF switch (mounting brackets installed near the port side) Figure 9 Attaching the mounting brackets and chassis rails to an HPE 5710-54HT switch...
- Page 15 If you use one of these grounding points, you must connect the grounding cable to the grounding point before you mount the switch in the rack. This section uses the primary grounding point on the HPE 5710-54HF switch as an example. To connect the grounding cable to a grounding point: Choose a grounding point.
-
Page 16: Attaching The Slide Rails To The Rack
Figure Figure 14 Attaching the grounding cable to the primary grounding point on an HPE 5710-54HF switch Attaching the slide rails to the rack The procedures are the same for attaching slide rails to the rack. -
Page 17: Mounting The Switch In The Rack
Mounting the switch in the rack The rack-mounting procedure is similar for the switches. The following procedure mounts an HPE 5710-54HF switch in a rack. This task requires two people. To mount the switch in the rack: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. -
Page 18: Grounding The Switch By Using A Grounding Strip
Figure 17 Mounting an HPE 5710-54HF switch in the rack (mounting brackets installed near the port side) Grounding the switch by using a grounding strip CAUTION: • Correctly connecting the grounding cable is crucial to lightning protection and EMI protection. -
Page 19: Installing And Removing A Fan Tray
Figure 18 Connecting the grounding cable to a grounding strip (1) Hex nut (2) Ring terminal (3) Grounding post (4) Grounding strip Installing and removing a fan tray CAUTION: • Do not power on the switch unless all fan tray slots are installed with a fan tray. •... -
Page 20: Removing A Fan Tray
Figure 19 Installing an X722 back-to-front fan tray Removing a fan tray WARNING! • Ensure electricity safety and never touch the rotating fans when you hot-swap a fan tray. • To prevent an unbalanced fan from causing loud noise, do not touch the fans, even if they are not rotating. -
Page 21: Installing A Power Supply
The installation procedure is the same for power supplies of different models. The following procedure installs a PSR250-12A power supply on an HPE 5710-54HF switch. To install a power supply: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. -
Page 22: Removing A Power Supply
(2) Pull the power supply out Removing a PSR450-12D DC power supply The following procedure removes a PSR450-12D power supply from an HPE 5710-54HT switch. To remove a PSR450-12D power supply: Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded. -
Page 23: Connecting The Power Cord
Hold the handle on the power supply with one hand, pivot the latch on the power supply to the right with your thumb, and pull the power supply part way out of the slot, as shown in Figure Supporting the power supply bottom with one hand, slowly pull the power supply out with the other hand. -
Page 24: Connecting The Dc Power Cord For A Psr450-12D Power Supply
Figure 27 Connecting the power cord (PSR250-12A power supply) (1) Cable tie (2) Tighten the cable tie to secure the power cord to the handle of the power supply Connecting the DC power cord for a PSR450-12D power supply Correctly orient the DC power cord plug and insert the plug into the power receptacle on the power supply. - Page 25 • The correct power source is used. • The power cords are correctly connected. • If part of the network cable for a port is routed outdoors, verify that a network port lightning protector is used for the port. • If a power line is routed from outdoors, verify that a surge protected power strip is used for the switch.
-
Page 26: Accessing The Switch For The First Time
Accessing the switch for the first time Setting up the configuration environment An HPE 5710 switch supports the following ways to connect the configuration terminal: • Through the console port by using the serial console cable The switch comes with the serial console cable. This way is preferred. -
Page 27: Usb Mini Console Cable
Table 7 Serial console cable pinout RJ-45 Signal DB-9 Signal USB mini console cable A USB mini console cable has a USB mini-Type B connector at one end to connect to the Mini USB console port of the switch, and a standard USB Type A connector at the other end to connect to the USB port on the configuration terminal. - Page 28 Figure 31 Device Driver Installation Wizard Click Continue Anyway if the following dialog box appears. Figure 32 Software Installation...
-
Page 29: Setting Terminal Parameters
Click Finish. Figure 33 Completing the device driver installation wizard Setting terminal parameters To configure and manage the switch through the console port, you must run a terminal emulator program, HyperTerminal or PuTTY, on your configuration terminal. You can use the emulator program to connect a network device, a Telnet site, or an SSH site. - Page 30 After the startup completes, you can access the CLI to configure the switch. For more information about the configuration commands and CLI, see HPE FlexFabric 5710 Switch Series Configuration Guides and HPE FlexFabric 5710 Switch Series Command References.
-
Page 31: Setting Up An Irf Fabric
Setting up an IRF fabric You can use IRF technology to connect and virtualize HPE FlexFabric 5710 switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability. The switch can set up an IRF fabric only with switches from the same switch series. -
Page 32: Planning Irf Fabric Setup
Distribute the IRF member switches in different racks to implement the top-of-rack (ToR) access solution for a data center. As your business grows, you can plug HPE FlexFabric 5710 switches into the IRF fabric to increase the switching capacity without any topology change or replacement. -
Page 33: Planning Irf Topology And Connections
For more information about master election, see HPE FlexFabric 5710 Switch Series IRF Configuration Guide or HPE FlexFabric 5710 Switch Series Virtual Technologies Configuration Guide, depending on the software version. -
Page 34: Identifying Physical Irf Ports On The Member Switches
Identify the 10GBase-T Ethernet ports, SFP+ ports, QSFP+, and QSFP28 ports to be used for IRF connections on the member switches according to your topology and connection scheme. All the 10GBase-T Ethernet ports, SFP+ ports, QSFP+ ports, and QSFP28 ports on the HPE FlexFabric 5710 switch can be used for IRF connections. - Page 35 The following subsections describe several Hewlett Packard Enterprise recommended IRF connection schemes, and all these schemes use a ring topology. Connecting the IRF member switches in one rack Figure 37 shows an example for connecting four IRF member switches in a rack by using QSFP+ cables and QSFP+ transceiver modules and optical fibers.
-
Page 36: Configuring Basic Irf Settings
Create a Layer 3 interface, assign it an IP address, and make sure the IRF fabric and the remote network management station can reach each other. Use Telnet or SNMP to access the IRF fabric from the network management station. (See HPE FlexFabric 5710 Switch Series Fundamentals Configuration Guide.) Verify that you can manage all member switches as if they were one node. - Page 37 (MAD) mechanism to detect the presence of multiple identical IRF fabrics and handle collisions. For more information about MAD detection, see HPE FlexFabric 5710 Switch Series IRF Configuration Guide or HPE FlexFabric 5710 Switch Series Virtual Technologies Configuration Guide, depending...
-
Page 38: Maintenance And Troubleshooting
You can use the status LED on a power supply to identify a power supply failure. For more information about the status LED on a power supply, see HPE PSR250-A & PSR250-A1 Power Supplies User Guide or HPE PSR450 Power Supply Series User Guide. -
Page 39: No Display On The Configuration Terminal
No display on the configuration terminal Symptom The configuration terminal has no display when the switch is powered on. Solution To resolve the issue: Verify that the power system is operating correctly. Verify that the console cable has been connected correctly and no fault occurs on the console cable. -
Page 40: Appendix A Chassis Views And Technical Specifications
(12) Console port (13) Mini USB console port (14) USB port An HPE 5710-54HF switch comes with power supply slot PWR1 empty and power supply slot PWR2 installed with a filler module. In Figure 41, two PSR250-12A power supplies are installed in the power supply slots. -
Page 41: Hpe 5710-54Ht
An HPE 5710-54HF switch comes with the four fan tray slots empty. You must install four fan trays of the same model for the switch. In Figure 41, four X722 back-to-front fan tray are installed in the fan tray slots. For more information about installing and removing a fan tray, see "Installing and removing... - Page 42 For more information about installing and removing a power supply, see "Installing and removing a power supply." An HPE 5710-54HT switch comes with the five fan tray slots empty. You must install five fan trays of the same model for the switch. In Figure 44, five X721 front-to-back fan trays are installed in the fan tray slots.
-
Page 43: Hpe 5710-30Hf
"Installing and removing a power supply." An HPE 5710-30HF switch comes with the four fan tray slots empty. You must install four fan trays of the same model for the switch. In Figure 41, four X722 back-to-front fan trays are installed in the fan tray slots. -
Page 44: Hpe 5710-30Ht
Figure 48 Left side panel (1) Primary grounding point (2) Auxiliary grounding point HPE 5710-30HT Figure 49 Front panel (1) 1/10GBase-T autosensing Ethernet port (2) 1/10GBase-T autosensing Ethernet port LED (3) QSFP+ port (4) QSFP28 port (5) QSFP28 port LED... -
Page 45: Technical Specifications
For more information about installing and removing a power supply, see "Installing and removing a power supply." An HPE 5710-30HT switch comes with the four fan tray slots empty. You must install four fan trays of the same model for the switch. In Figure 50, four X721 front-to-back fan trays are installed in the fan tray slots. - Page 46 Item HPE 5710-54HF HPE 5710-30HF PSR250-12A/PSR250-12A1: PSR250-12A/PSR250-12A1: • • Single AC input: 66 W Single AC input: 66 W • • Dual AC inputs: 74 W Dual AC inputs: 74 W PSR450-12A/PSR450-12A1: PSR450-12A/PSR450-12A1: Minimum • • Single AC input: 68 W...
- Page 47 Item HPE 5710-54HT HPE 5710-30HT 1/10GBASE-T autosensing Ethernet ports QSFP+ ports Up to 6 Up to 6 QSFP28 ports Up to 2 Up to 2 Fan tray slots Power supply slots PSR250-12A/PSR250-12A1/PSR450-12A/PSR4 50-12A1: • Rated voltage: 100 to 240 VAC @ 50/60 Hz •...
- Page 48 Item HPE 5710-54HT HPE 5710-30HT Operating 0°C to 45°C (32°F to 113°F) temperature Operating 10% RH to 90% RH, noncondensing humidity Fire resistance UL60950-1/EN60950-1/IEC60950-1/GB4943 compliance...
-
Page 49: Appendix B Frus And Compatibility Matrixes
• Do not install fan trays of different models on the same switch. • Do not install power supplies of different models on the same switch. Table 11 Compatibility matrix between the FRUs and HPE FlexFabric 5710 switches FRUs HPE 5710-54HF... -
Page 50: Fan Trays
Input voltage 12 V Maximum power consumption 9.8 W Documentation reference HPE X721(JL594) & X722(JL595) Fan Trays User Guide X721 front-to-back fan tray Fans One 40 × 40 × 28 mm (1.57 × 1.57 × 1.10 in) fan Fan speed 20000 R.P.M... -
Page 51: Appendix C Ports And Leds
Appendix C Ports and LEDs Ports Console port The switch has two console ports: serial console port and Mini USB console port. Table 14 Console port specifications Item Console port Mini USB console port Connector type RJ-45 USB mini-Type B Compliant standard EIA/TIA-232 USB 2.0... -
Page 52: Usb Port
SFP+ cables in Table 20 in the SFP+ ports as needed. Ports 29 to 36 on the front panel of the HPE 5710-54HF switch do not support Gigabit SFP modules. Table 18 Gigabit SFP transceiver modules available for the SFP+ ports... - Page 53 Table 20 SFP+ cables available for the SFP+ ports Max transmission Product code HPE description Data rate distance JD095C HPE X240 10G SFP+ SFP+ 0.65m DA Cable 0.65 m (2.13 ft) JD096C HPE X240 10G SFP+ SFP+ 1.2m DA Cable 1.2 m (3.94 ft) 10.31 Gbps JD097C HPE X240 10G SFP+ SFP+ 3m DA Cable 3 m (9.84 ft)
-
Page 54: Qsfp+ Port
Figure 53 SFP+ fiber cable NOTE: • As a best practice, use HPE SFP transceiver modules, SFP+ transceiver modules, or SFP+ cables for the SFP+ ports on the switch. The HPE SFP transceiver modules, SFP+ transceiver modules, and SFP+ cables are subject to change over time. For the most up-to-date list of SFP transceiver modules, SFP+ transceiver modules, and SFP+ cables, contact Hewlett Packard Enterprise Support or marketing staff. - Page 55 Table 24 40G QSFP+ to 4 × SFP+ cables available for the QSFP+ ports Product Code HPE description Cable length HPE X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper JG329A 1 m (3.28 ft) Splitter Cable HPE X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper JG330A 3 m (9.84 ft)
- Page 56 Cable Data Product Code HPE description length rate JL287A HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable 7 m (22.97 ft) JL288A HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable 10 m (32.81 ft) Gbps JL289A HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable 20 m (65.62 ft)
-
Page 57: Qsfp28 Port
NOTE: • As a best practice, use HPE QSFP+ transceiver modules, QSFP+ cables, or 40G QSFP+ to 4 × SFP+ cables for the QSFP+ ports on the switch. The HPE QSFP+ transceiver modules, QSFP+ cables, and 40G QSFP+ to 4 × SFP+ cables available for the interface cards are subject to change over time. - Page 58 Table 27 QSFP28 cables available for the QSFP28 ports Product Code HPE description Cable length JL271A HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable 1 m (3.28 ft) JL272A HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable 3 m (9.84 ft)
-
Page 59: 1/10Gbase-T Autosensing Ethernet Port
QSFP+ cables (except for the QSFP+ to 4 × SFP+ cables) for the QSFP28 ports on the switch. The HPE QSFP28 transceiver modules or QSFP28 cables are subject to change over time. For the most up-to-date list of QSFP28 transceiver modules or QSFP28 cables, contact Hewlett Packard Enterprise Support or marketing staff. -
Page 60: Leds
• For ports adjacent to one another on the device, the peer ports on the distribution frame are preferably not adjacent, for example: If the device connects to one distribution frame, connect port 1 on the device to port 1 on the distribution frame, port 2 on the device to port 3 on the distribution frame, and port 3 on the device to port 5 on the distribution frame. -
Page 61: Qsfp28 Port Led
Table 32 QSFP+ port LED description LED status Description A transceiver module or cable has been correctly installed. The port has a link and Steady green is operating at 40 Gbps. Flashing green The port is sending or receiving data at 40 Gbps. A transceiver module or cable has been correctly installed. -
Page 62: 1/10Gbase-T Autosensing Ethernet Port Leds
1/10GBASE-T autosensing Ethernet port LEDs Table 36 1/10GBASE-T autosensing Ethernet port LED description Status Description Steady green The port has a link and is operating at 10 Gbps. Flashing green The port is sending or receiving data at 10 Gbps. Steady yellow The port has a link and is operating at 1 Gbps. -
Page 63: Appendix D Cooling System
X721 front-to-back fan tray From the port side to the power supply side Figure 59 Airflow from the power supply side to the port side through the HPE 5710-54HF chassis (with X722 back-to-front fan tray) Figure 60 Airflow from the port side to the power supply side through the HPE 5710-54HF... -
Page 64: Document Conventions And Icons
Document conventions and icons Conventions This section describes the conventions used in the documentation. Command conventions Convention Description Bold text represents commands and keywords that you enter literally as shown. Boldface Italic text represents arguments that you replace with actual values. Italic Square brackets enclose syntax choices (keywords or arguments) that are optional. -
Page 65: Network Topology Icons
Network topology icons Convention Description Represents a generic network device, such as a router, switch, or firewall. Represents a routing-capable device, such as a router or Layer 3 switch. Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features. -
Page 66: Support And Other Resources
Support and other resources Accessing Hewlett Packard Enterprise Support • For live assistance, go to the Contact Hewlett Packard Enterprise Worldwide website: www.hpe.com/assistance • To access documentation and support services, go to the Hewlett Packard Enterprise Support Center website: www.hpe.com/support/hpesc Information to collect •... -
Page 67: Websites
Websites Website Link Networking websites Hewlett Packard Enterprise Information Library for www.hpe.com/networking/resourcefinder Networking Hewlett Packard Enterprise Networking website www.hpe.com/info/networking Hewlett Packard Enterprise My Networking website www.hpe.com/networking/support Hewlett Packard Enterprise My Networking Portal www.hpe.com/networking/mynetworking Hewlett Packard Enterprise Networking Warranty www.hpe.com/networking/warranty General websites Hewlett Packard Enterprise Information Library www.hpe.com/info/enterprise/docs... -
Page 68: Documentation Feedback
Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us improve the documentation, send any errors, suggestions, or comments to Documentation Feedback (docsfeedback@hpe.com). When submitting your feedback, include the document title, part number, edition, and publication date located on the front cover of the document. For online help content, include the product name, product version, help edition, and publication date located on the legal notices page. -
Page 69: Index
Index A C E F G I L N P S T V Installing and removing a fan tray,15 Installing and removing a power supply,16 Accessing Hewlett Packard Enterprise Support,62 Installing the switch in a 19-inch rack,7 Accessing the IRF fabric to verify the IRF fabric setup flowchart,27 configuration,32...
