Summary of Contents for Cembre RHU600

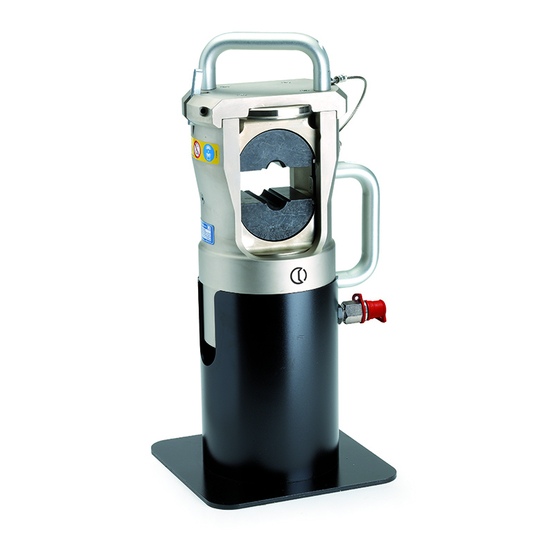

- Page 1 17 M 232 E 17 M 232 E ENGLISH HYDRAULIC PRESSHEAD RHU600 OPERATION AND MAINTENANCE MANUAL...
- Page 2 WARNING WARNING TG. 0934 DANGER CAUTION Operating and safety procedures BEFORE USING THIS TOOL, READ THE SAFETY ELECTROCUTION may vary in accordance with WARNINGS and recommended practices described in HAZARD the guidelines of each utility. the manual. Failure by the operator to read and fully For your own safety, ensure understand the warnings will leave this person unquali- The user should be properly...
- Page 3 RHU600-WS HS600 FIG. 1...
-
Page 4: General Characteristics
– Oil necessary (displacement): ............320 cm (18.9 cu. in) – Ram stroke: ....................34 mm (1.33 in.) – Weight RHU600 (head with support): ..........22,4 kg (49.3 lbs) – Weight RHU600-WS (head without support): ......19 kg (41.8 lbs) – Weight SH600 (support): ..............3,4 kg (7.5 lbs) - Page 5 2.1) Setting – Connect the presshead to the pump hose; the head is equipped with a "self-lock" quick male coupler and can be connected to a Cembre hydraulic pump developing 700 bar (10,000 psi) pressure. 2.2) Die insertion (Ref.
-
Page 6: Maintenance
2.6) Head opening (Ref. to Fig. 4) When required, the upper part of the head can be disconnected to permit an easy introduction of the connector or, if necessary, the connector removal after crimping; operate as follows: – Hold the handle (22), press the latch (9) and turn the top of the head through 90 degrees. –... -
Page 7: Return To Cembre For Overhaul
Centre; if possible, include a copy of the Test Certifi cate supplied by Cembre with the tool or, if no other references are available, indicate the approximate purchase date and the tool serial number. - Page 8 TABLE 1 Tool serial number...
- Page 10 6080098 32 BUSH The items marked "K" are those Cembre recommend replacing if the tool is disassembled. When ordering spare parts always specify the following: - code number of item - name of item - type of tool - serial number of tool...
- Page 11 FIG. 3 FIG. 4 CAUTION BEFORE OPERATING MAKE SURE THE LATCH IS SECURE ATCH IMPROPERLY SECURED CAN CAUSE TOOL DAMAGE AND PERSONAL INJURY...
- Page 12 CS 92014 - 91423 Morangis Cédex E-mail: sales@cembre.com E-mail: sales@cembre.co.uk E-mail: info@cembre.fr www.cembre.com www.cembre.co.uk www.cembre.fr Cembre España S.L.U. Cembre GmbH IKUMA GmbH & Co. KG Cembre Inc. Calle Verano 6 y 8 Heidemannstraße 166 Boschstraße 7 Raritan Center Business Park 28850 Torrejón de Ardoz...
