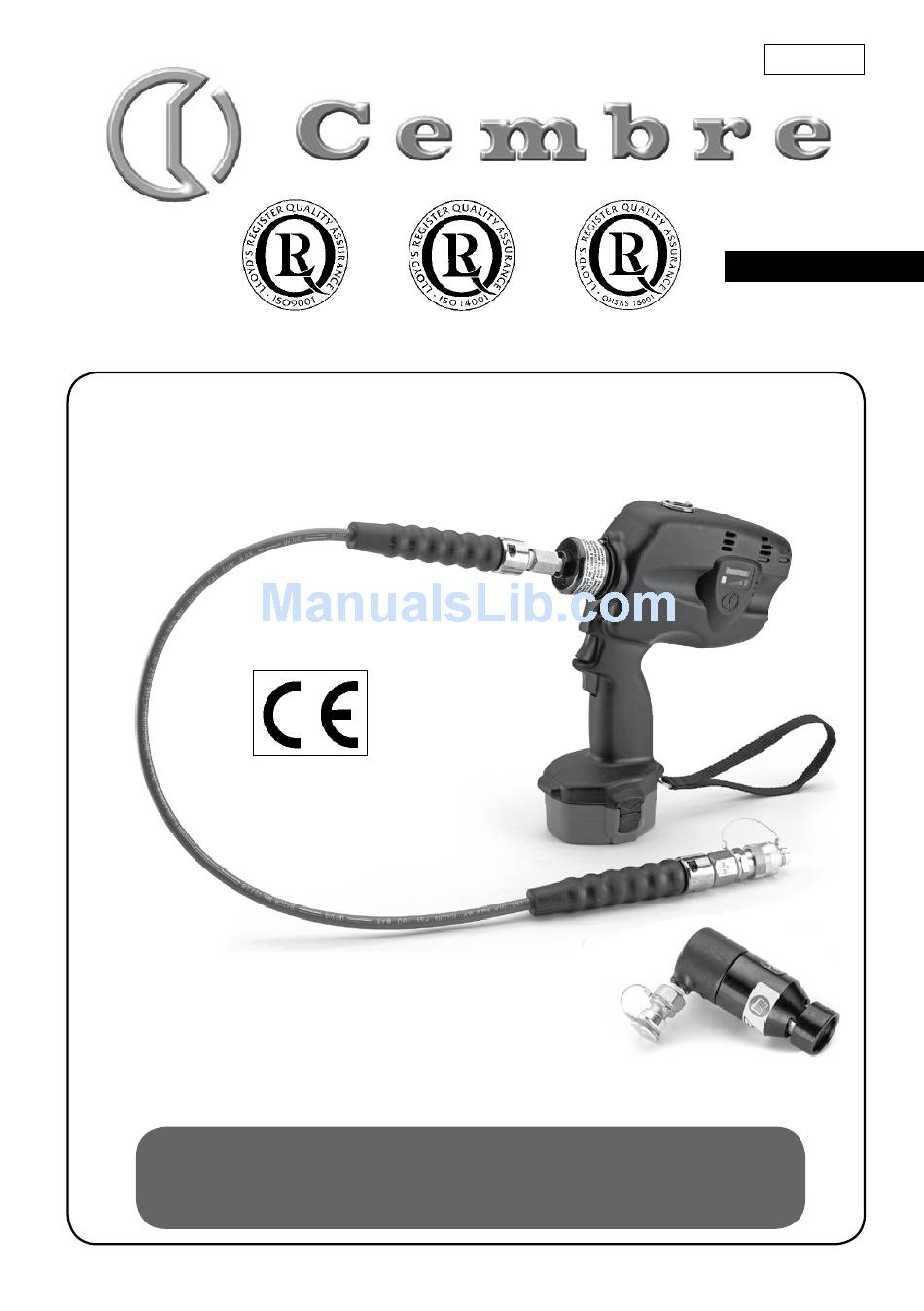

- Page 1 14 M 107 E ENGLISH Certified Quality Certified Environmental Certified Occupational Management System Management System Health & Safety Management System BATTERY OPERATED HYDRAULIC TOOL BTEPE2.DET10 OPERATION AND MAINTENANCE MANUAL...
-
Page 2: User Information
WARNING Li-Ion – Before using the tool, carefully read – When operating the tool, keep the instructions in this manual. hands away from the danger zone. – Always wear safety gloves when – Do not short circuit the batteries. operating. -
Page 3: General Characteristics

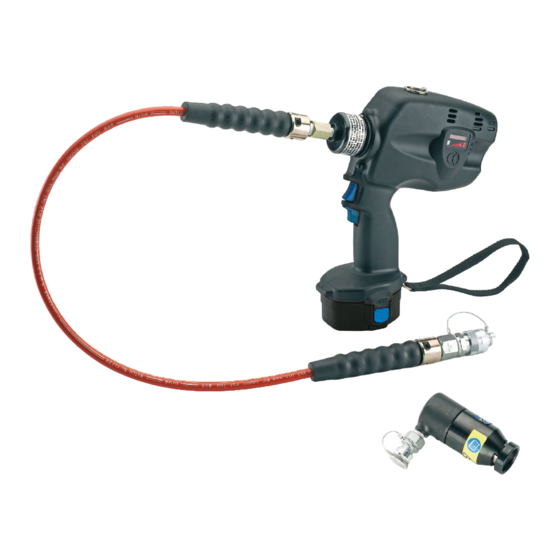

BATTERY OPERATED HYDRAULIC TOOL TYPE BTEPE2.DET10 The hydraulic tool is powered by 14.4 V Li-Ion battery. A balanced tool for optimum control; quiet in operation with very little vibration; lightweight construction enables the operator to hold the tool in one hand. - Page 4 2.2) Installation procedure for rail web electrical connection – 13,5 mm or, if already drilled, use a suitable reamer to clean the hole Drill rail web to Ø (Fig. 1). – Check the size of the hole with the CAL135.145 “GO/NO GO” gauge (Fig. 2): - The hole size is correct if only the green part enters the hole.
- Page 5 "GO / NO GO" OG10.5C M9M8 tool Gauge plunger adapter head ➞ ➞ FIG. 4 ➟ ➟ ➟ ➟ FIG. 5 FIG. 6 cable flat washer screw copper bush self-locking FIG. 7 FIG. 8...
-
Page 6: Maintenance
3. WARNING he Tool is unsuiTable for conTinuous use and should be allowed To cool down following uninTerrupTed successive operaTions for insTance having exhausTed a fully charged baTTery in one session delay baTTery replacemenT for a few minuTes bserve recommended resT periods also when using an exTernal power supply ... -
Page 7: Parts List
2598494 BATTERY 6340060 M 6x6 GRUB SCREW The guarantee is void if parts used are not Cembre original spares. When ordering spare parts always specify the following: - code number of item - name of item - type of tool... - Page 8 Serial number FIG. 9 LONGITUDINAL SECTION...
- Page 9 Serial number...
-
Page 10: Return To Cembre For Overhaul
Centre; if possible, attach a copy of the Test Certificate supplied by Cembre together with the tool or, if no other references are available, indicate the approximate purchase date and the tool serial number. - Page 11 NOTE __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________ __________________________________...
- Page 12 B.P. 37 - 91421 Morangis Cédex E-mail: sales@cembre.com E-mail: sales@cembre.co.uk E-mail: info@cembre.fr www.cembre.fr www.cembre.it www.cembre.co.uk Cembre España S.L. Cembre AS Cembre GmbH Cembre Inc. Calle Verano, 6 y 8 - P.I. Las Monjas Fossnes Senter Heidemannstraße 166 Raritan Center Business Park 28850 Torrejón de Ardoz - Madrid (España)
