Eurocave MODULOTHEQUE Assembly Instructions Manual page 9

GB
FASTENINGS
a*x4
*No screws are provided, the
screws to be used are the ones
for the basic module.
TOOL REQUIRED
PARTS
Ax2
Bx2
Cx2
8
C M
ROSS ODULE
Before locating the cross module, remove all the bottles from the top module.
1
2
3
Front securing
4
guide
(MV18)
WARNING!
A
Rear securing
5
guide
a
ARRANGEMENT
OF SUPPORTS
1

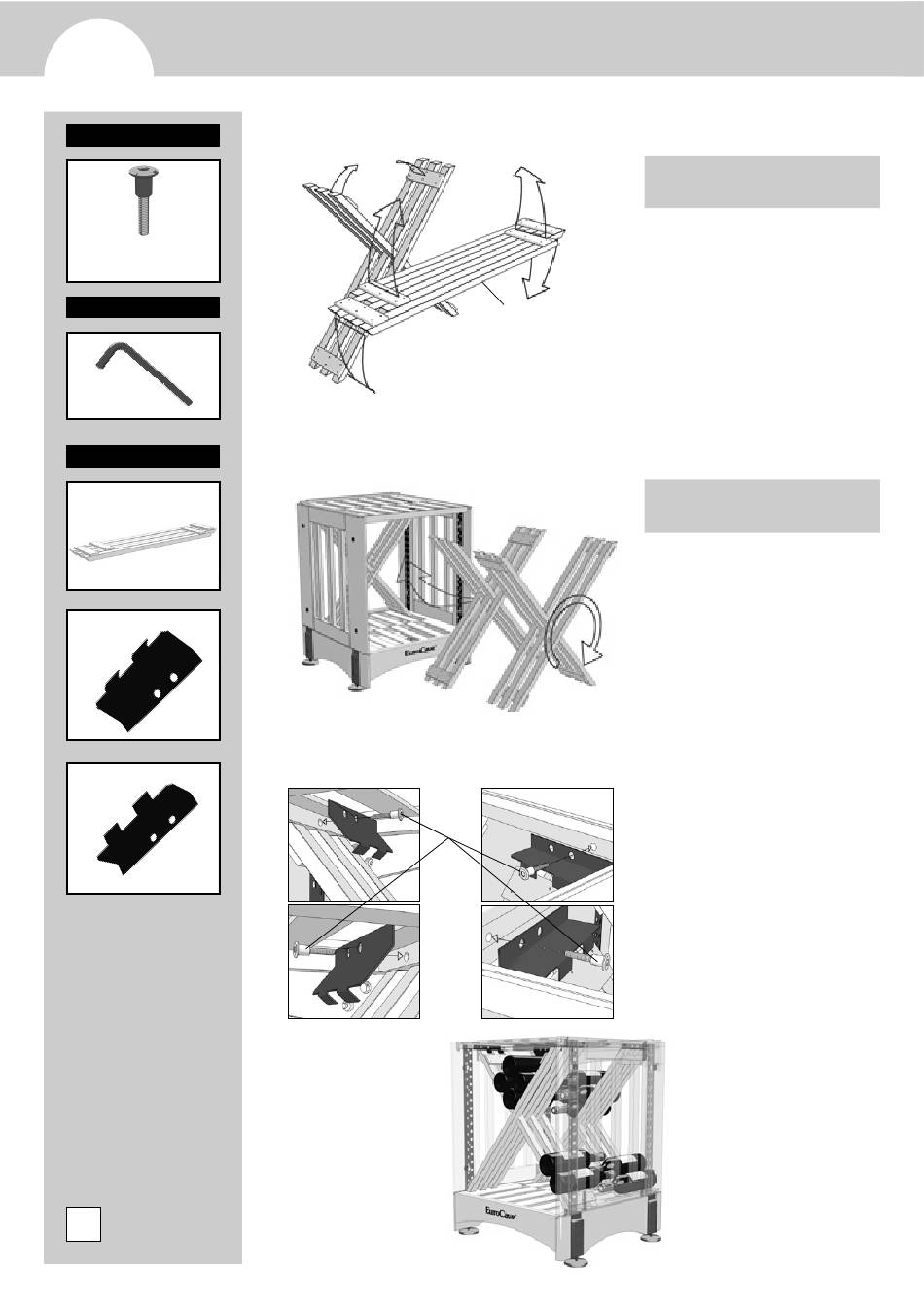

: Unfold the 2 support cross-pieces (A) Pull up
ends in relation to centre to form an X. Notice
that the arms of the X are NOT of equal length.
2
:
a: The rear support cross-piece is placed with the
long arms uppermost.
b: The front support cross piece is placed with the
long arms downward
SETTING UP
SUPPORTS
3
: Remove the 4 securing screws (a) from the
upper rack. Install the rear support at the back of
the basic module.
4
: Centre the rear support (a) by screwing it
onto the rear metal 135º guides (B) on the upper
rack.
5
: Install the front support in front of the rear
support and centre it (a) by screwing it onto the
front metal 90º guides (C) on the upper rack
N N . . B B . . : : You may expect slight play on the cross
modules inside the basic module.This is normal
because wood is a living material that moves with
levels of atmospheric moisture.
