Vertical Assembly - Eurocave MODULOTHEQUE Assembly Instructions Manual

B
ASIC
PART
bx4
ax2
cx2
dx6
ex2
fx2
TOOL REQUIRED
PARTS
A
Bx2
C
ASSEMBLY
FASTENINGS
gx4
M
ODULE
1
B
C
d
b
2
a
f
3
4
To be wall mounted
(MV1/MV1L40)
e
c
b
A
g
GB

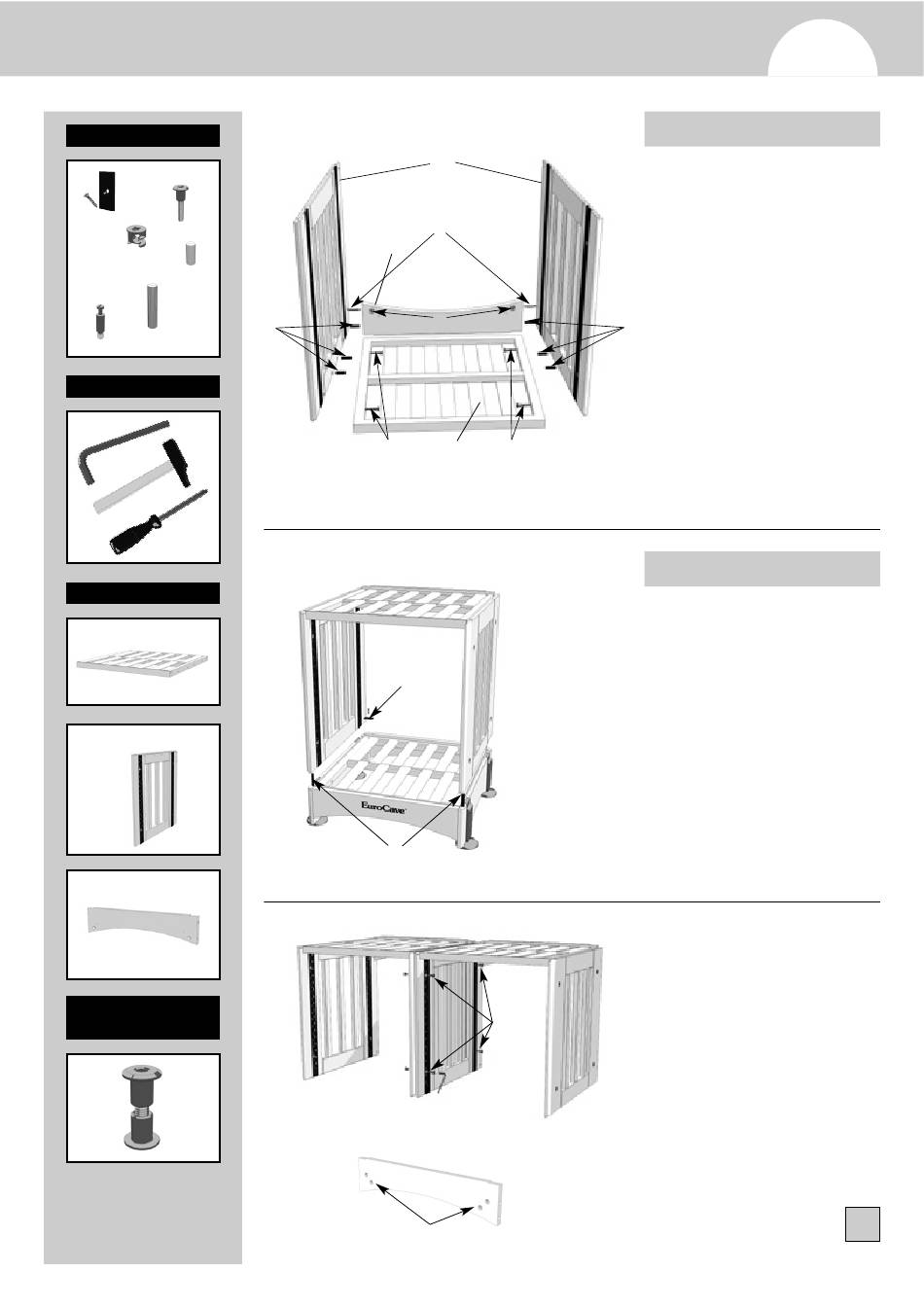

ERECTION
1
: Fit the 6 dowels (d) and the 2 connecting bolts
(e) in the sides (B). Place the 2 bolt locks (c) in the
back piece(C).
Fit the back piece (C) on one side (B).
Turn the bolt lock (c).
Fit the rack (A) onto the 2 dowels (d).
Push the 2 screws (b) into the rack and screw
together the assembly.
Repeat the same procedure on the other side (B).
d

VERTICAL ASSEMBLY

2
: Position the 2 dowels (f) in the lower module
(Pedestal or Basic).
Fit the basic module onto the lower module.
Place the 2 securing plates (a) on the pedestal
module and screw together.
3
: When the 2 modules abut, you will need to link
them using 4 linking screws (g). Push the linking
screws into the holes provided in the shelf support
strips on the 2 contacting panels. Tighten until the
2 panels are flush and in line.
4
: The basic modules above the first should be
secured to the wall from the 2 nd level using 2 securing
screws (not supplied) suitable for the wall type..
3
