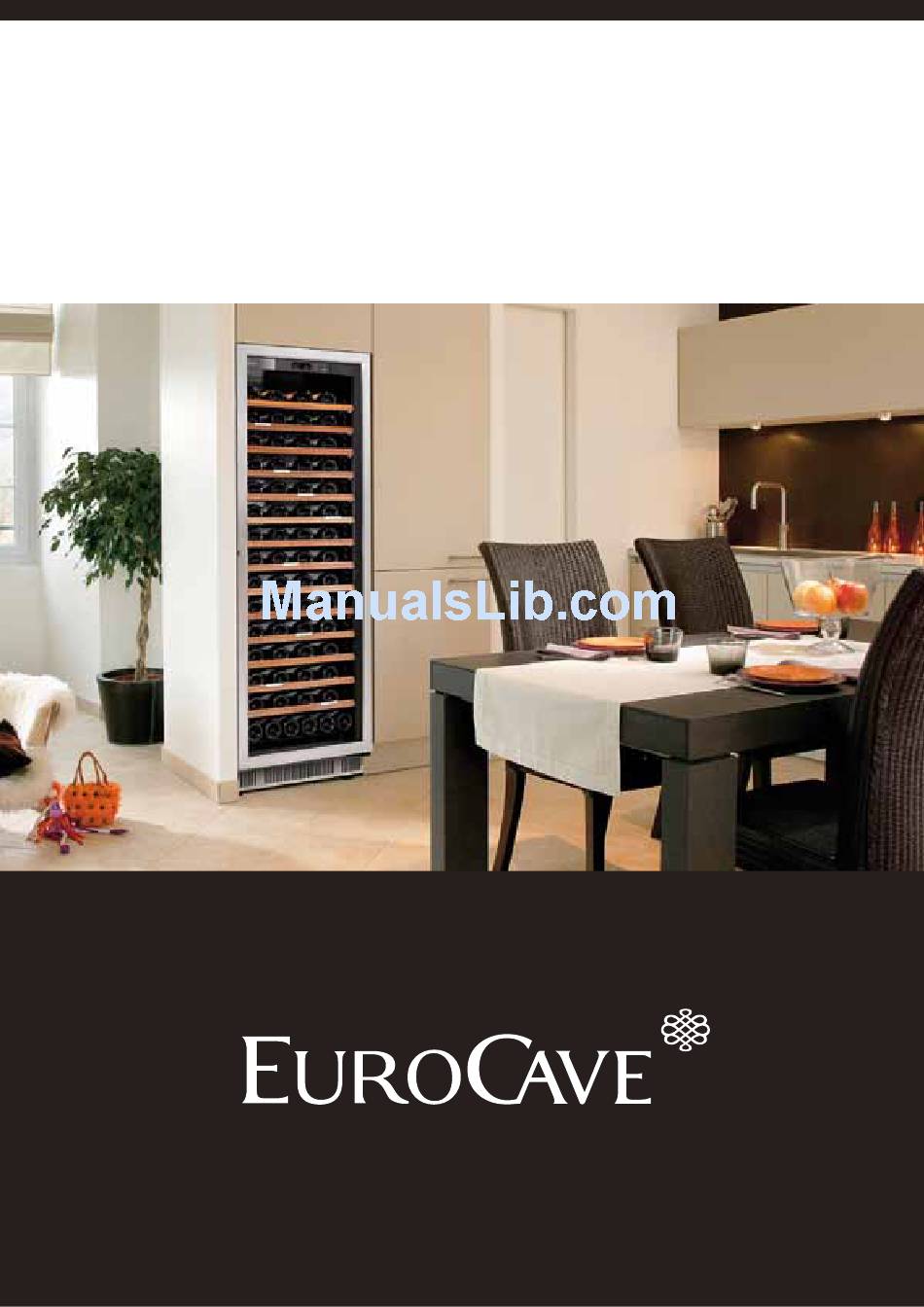

  • Page 1 Mode d’emploi Gamme Compact User Manual Compact Range Gebrauchsanweisung Reihe Compact Modo empleo Gama Compact...
  • Page 3 World of urocave Our biding desire is to support your passion for wine throughout the years… To do so, EuroCave has used all of its expertise to bring together the six essential criteria for serving wine: Temperature The two enemies of wine are extreme temperatures and sudden changes in temperature.

  • Page 4: Table Of Contents

    ontents 1 - Description of your wine cabinet 2 - Important safety recommendations 3 - Power supply 4 - Protecting the environment and energy-saving 5 - Installing your wine cabinet I - Building in II - Alternative hanging of a solid door III - Alternative hanging of a glass door 6 - Arrangement - Storage 7 - Commissioning your wine cabinet...

  • Page 5: Description Of Your Wine Cabinet

    1 - d escription of your Wine caBinet Control and adjustment panel Base with front ventilation Light (2 leds) Filter access grille + aeration filter Location of temperature probe in 1 temperature 4 adjustable levelling feet models Lower hinge (x2) Air circulation hole + Active carbon filter Specification label Sliding shelf...

  • Page 6: Important Safety Recommendations

    Contact your usual EuroCave dealer to change the power lead if it is damaged. It must be replaced by a part which has an original manufacturer’s guarantee.

  • Page 7: Installing Your Wine Cabinet

    (laundry room utility room, bathroom...), • have a stable, flat floor, If there is a problem, contact your EuroCave dealer. • have a power supply (standard socket, 16 A, earthed with circuit breaker, 30 mA* (*not applicable to some countries).

  • Page 8: I - Building In

    5 - i nstalling your Wine caBinet Wall fixing of the cabinet Preposition the wall bracket (on the nut to determine the position for drilling the holes for the wall-mounting screws, For large models, if the wine cabinet is not being built in, it is essential to secure it to the wall to prevent it from tipping forward.
  • Page 9 5 - i nstalling your Wine caBinet Dimensions for a technical door: A maxi 1813 A mini 1797 C mini 1802 Changing the hinges • Fit the hinge with pin using the screws so that the door is parallel to the cabinet. Loosen the three screws using the Torx “T25”...

  • Page 10: Alternative Hanging Of A Solid Door

    5 - i nstalling your Wine caBinet Adjusting the mounting feet and attachment (only when the The mains power socket must be accessible after installation of cabinet is empty) the unit. • The 4 feet of the wine cabinet are adjustable in height so that the height For medium and large models, it is essential to secure the below the work surface orin the unit can be adjusted, and to align the cabinet to the wall to prevent it from tipping forward.

  • Page 11: Alternative Hanging Of A Glass Door

    1I. Reversibility of the lock To turn the logo round (solid doors only) Gently press the "EuroCave" logo to loosen it from the logo support. Unscrew the screw with a tool Torx T20 screwdriver. Rotate the logo 180° before repositioning it on the logo support.
  • Page 12 5 - i nstalling your Wine caBinet 1II. Alternative hanging of a door (solid or glass) Upper hinge Lower hinge Grommets Door pivot guide Grommets Door axis plug Torx screw Torx screw Closing clip You can change which way it opens. Proceed as follows (example for changing a right hand door to a left hand door): Loosen the three screws using the Torx “T25”...

  • Page 13: Arrangement - Storage

    6 - a rrangement torage Your wine cabinet EuroCave has been designed to evolve. Depending on the model, it can be adapted to your requirements and be modified in terms of storage. Various storage methods Universal storage shelf Universal sliding shelf, Optional articulated Ref.: AXLNH...
  • Page 14 6 - a rrangement torage Change position of a sliding shelf • Fully unload the sliding shelf. • Then lift out the sliding tray by sliding it forwards whilst at the same time lifting it from the front. • Find the runner guides on the left and right and remove. •...

  • Page 15: Commissioning Your Wine Cabinet

    7 - c ommissioning your Wine caBinet 1. Connection Have your plug checked (presence of fuses, amps and 30 mA circuit breaker). Do not plug several cabinet into a multi-socket. Check your type of wine cabinet Press the keys simultaneously. 1I-A.

  • Page 16: Ii-B. Description (Multi-Temperatures Model S059 - S259)

    7 - c ommissioning your Wine caBinet II-B. Description (multi-temperatures model S059 - S259) The touch keys are very sensitive. There is no need to push the keys very hard. A simple, gentle touch is enough to register the setting. Think to lift your finger from the control panel between each touch.

  • Page 17: Humidity Level Display

    7 - c ommissioning your Wine caBinet IV. Humidity level display Your wine cabinet is fitted with a function for measuring the level of If you would like to increase the level of relative humidity in your cabinet, hygrometry, enabling you to visualise the level of relative humidity inside pour the equivalent of a glass of water on the humidity cassette.

  • Page 18: Everyday Maintenance

    8 - e veryday maintenance Your EuroCave wine cabinet is an appliance with tried and tested performance. Maintenance operations to be carried out every 3 months • Remove the 2 screws from the grille with a no. 2 hexagonal spanner (provided int the accessories bag).

  • Page 19: Technical Features

    10 - t echnical features Compact 59 Height Width Depth Weight when Permitted temperature range Consumption per empty kg 24 h* (kWh) T° min T° max 1 temperature V059 0°C / 32°F 35°C / 95°F 0,76 V259 1792 0°C / 32°F 35°C / 95°F 1,02 Multi-temperatures...
  • Page 20 11 - s imulations de rangement 11 - s torage layout examples 11 - l agerungs eispiele 11 - s imulaciones de colocación...
  • Page 21 ACMSC 8 ACMSC 8 ACMSC 8 ACMSC ACMSC ACMSC AXLNH 50 AXLNH ACMSC 8 ACMSC 8 ACMSC 8 AOPRES 9 AOPRES 9 AOPRES 9 11 - 1 T . v059-259 / m . s059-259 ulti temp ACMSC 8 ACMSC 8 ACMSC 8 ACMSC 8 ACMSC 8...
  • Page 22 otes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 23 otes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 24 The information in this document is subject to modification without prior notice. Photos are not contractually binding. EuroCave offers no guarantee on this equipment item if it is used for any specific purpose other than that for which it was designed. EuroCave cannot be held responsible for any errors in this manual, not for any damage linked to or following the provision, performance or use of the equipment item.
  • Page 25 Leader dans le domaine de la conservation, la présentation et le service des vins depuis plus de 30 ans, EuroCave vous propose des solutions adaptées à chacun de vos besoins. Armoires à vins, rangements, climatiseurs de cave, système de Vin au verre….n’hésitez pas à...
