Eurocave MODULOTHEQUE Assembly Instructions Manual page 8

FASTENINGS
ax3
bx4
ex4
cx4
d
TOOLS REQUIRED
PARTS
A
B
C
D
E
F
R M
ACK ODULE
1
A
B
2
e
3
a
D
5
(MV8)
b
b
b b
F
c
B
C
d
GB

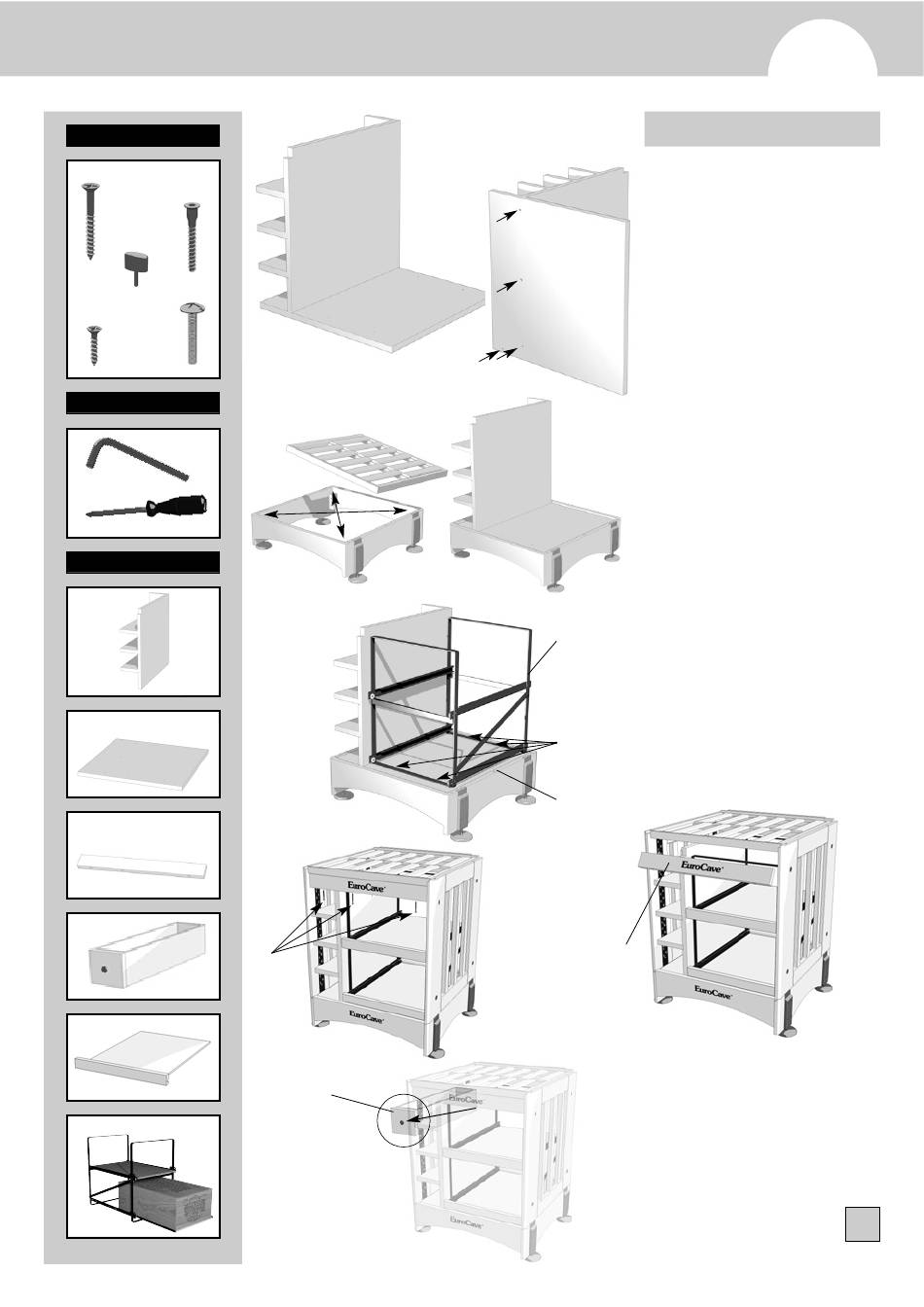

ASSEMBLY
1
: Secure the "magnum shelving unit" (A) to its
base plate(B) using the 4 screws (b) and by lining
up the various holes.
2
: Remove the rack from the pedestal module,
nail the 4 parts (e) onto the 4 wedges, and
introduce the ready assembled unit in its place.
WARNING!
The Modulorack comes in a separate box.
3
: Assemble the Modulorack (F) (following
directions in the box) and secure it onto the base
plate(B) using 4 screws (c) and by lining up the
holes in the Modulorack with the holes in the base
plate.
4
: Position the upper cross piece (C) under the
rack of the basic module and position it on the
edge of the rack, securing it with 3 screws (a).
5
: Position the drawer (D) at the required height.
From the inside, screw on the drawer 'handle'
button with the screw provided (d).
4
N N . . B B . . : : oak panels ( E ) are supplied with the Rack
module to replace the original Modulorack ones.
7
