Bottle Storage - Eurocave MODULOTHEQUE Assembly Instructions Manual

B
ASIC
FASTENINGS
ax4 bx4 cx2
TOOL REQUIRED
PARTS
A
Bx2
Cx4
Dx4
ASSEMBLY
FASTENINGS
dx4
C
ORNER
B
1
b
a
A
2
3
4
C
M (MV16)
ODULE
c
d
A
D
GB

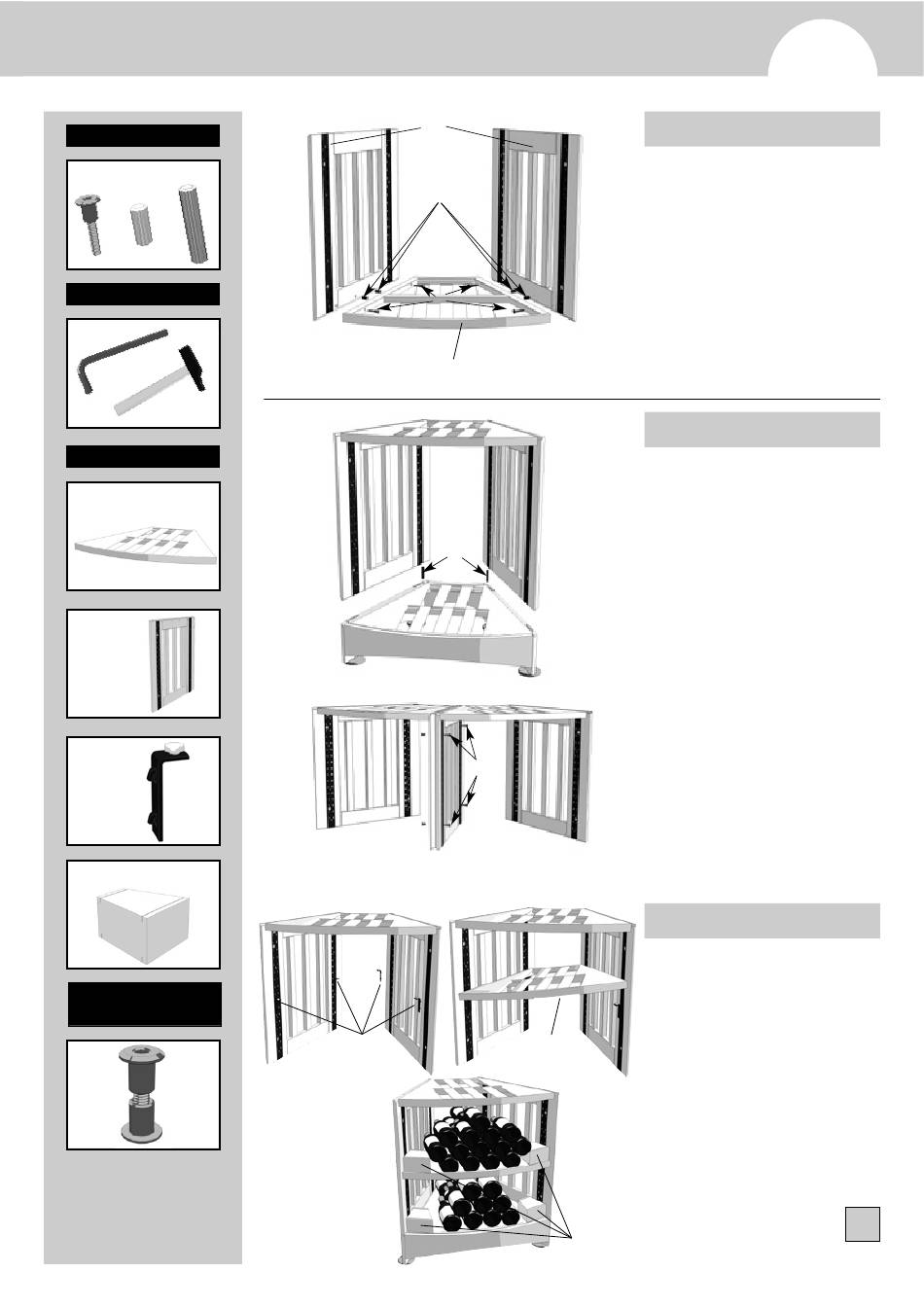

ASSEMBLY
1
: Position the 4 dowels (b) in the sides (B).
Fit the rack (A) onto the 4 dowels (b).
Push the 4 screws (a) into the rack and screw
together the assembly.
ASSEMBLY
2
: Position the 2 dowels (c) in the pedestal
module. Fit the two sides onto the pedestal
module.
3
: When the 2 modules are back to back, you will
need to link them using 4 linking screws (d). Push
the linking screws into the holes provided in the
shelf support strips on the 2 contacting panels.
Tighten until the 2 panels are in contact and
correctly aligned.

BOTTLE STORAGE

4
: Position the 4 rack supports (C) in the shelf
support strips and locate the rack (A). Position the
2 bottle stops (D) at either end of the rack (widest
part).Then insert your first row of 4 bottles in the
rack slots, followed by a series of 5 bottles.
5
