Glass Holder - Eurocave MODULOTHEQUE Assembly Instructions Manual

GB

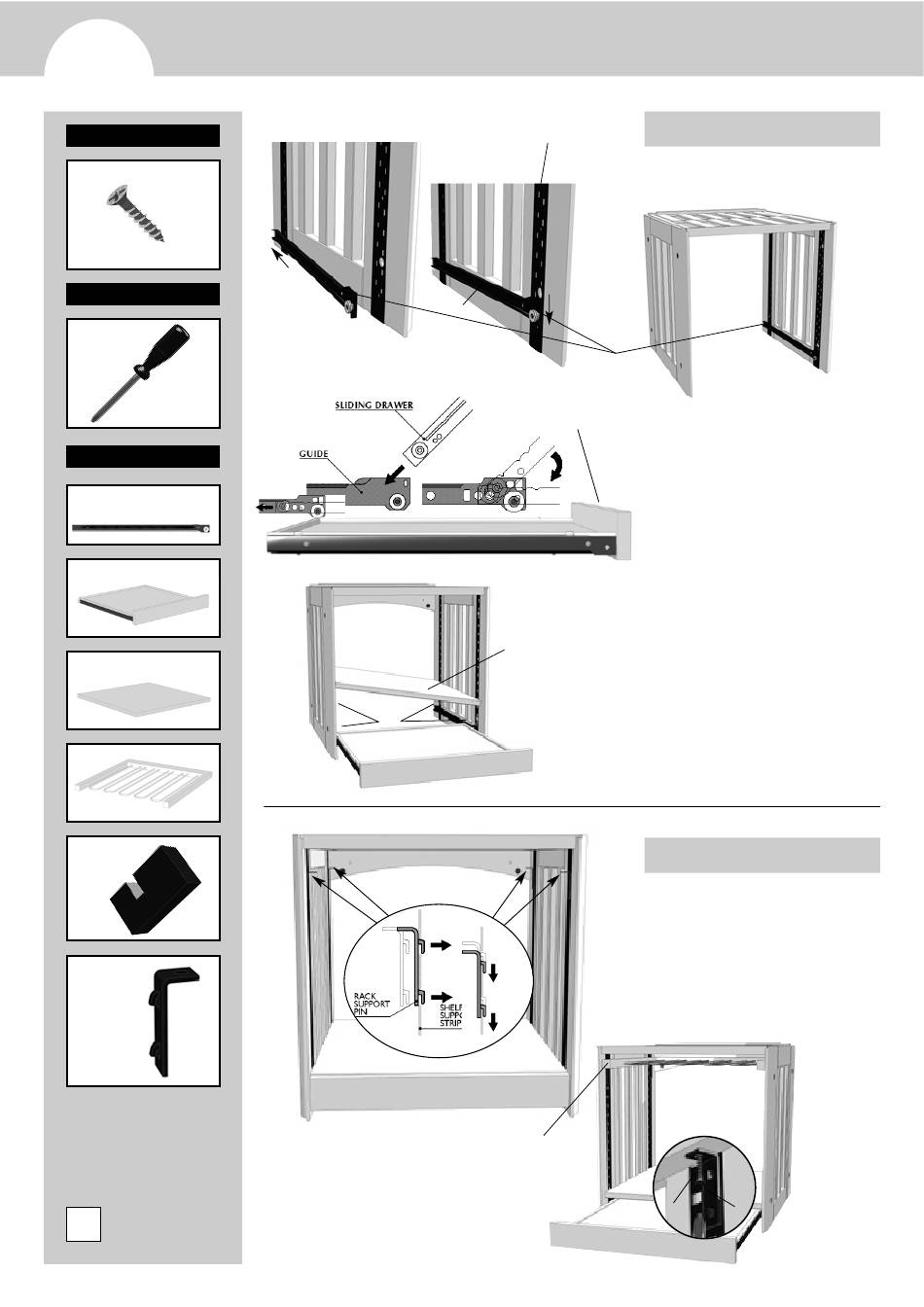

FASTENINGS
ax4
TOOL REQUIRED
PARTS
Ax2
B
C
D
Ex4
Fx4
6
B M
AR ODULE
1
Guide
2
3
E
1
F
(MV6)
Shelf Support Strip
A
B
C
D
2
SHELF
1
: Place the guides (A) in the shelf support strips.
2
: Insert the sliding shelf (B).
3
: Position the 4 shelf supports (E) in the shelf
support strips and set up the shelf (C).

GLASS HOLDER

1
: Position the 4 rack support pins (F) on the shelf
support strips so as to create a level.
2
: Position the glass rack (D) aligning it on the
racks. Tighten the 4 screws (a) lining up the rack
support pins holes (F) with those in the glass rack.
a
F
