Summary of Contents for PCE Instruments PCE-IT100
- Page 1 User Manual PCE-IT100 Insulation Tester User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 7 October 2019 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
11.1 Hold reading ........................9 11.2 MAX/MIN.......................... 9 11.3 Freehand measurement (LOCK key) ................9 12 Backlight ....................10 13 Replace the batteries ................10 14 Replace the fuse .................. 10 15 Warranty ....................10 16 Disposal ....................10 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Safety Symbols
This icon can be found next to another symbol or a connection and is a reference to the user manual. This icon indicates that high voltage could be present. Shock hazard! Double insulation Earth (ground) DC (direct current) © PCE Instruments... -
Page 5: Safety Categories
To know what CAT to work with, you must find out what component has the lowest CAT and use this CAT. Important: When you have removed the insulation from the test leads, these will correspond to CAT II. Fig. 1: Insulated tip Fig. 2: Uninsulated tip © PCE Instruments... -
Page 6: Delivery Contents
Delivery contents 1 x insulation tester PCE-IT100 1 x set of test leads 1 x alligator clip with 1 m cable 6 x 1.5 V AA battery 1 x carrying strap 1 x user manual 1 x carrying case Specifications The accuracies have been determined at an ambient temperature of 23 °C ±5 °C and 80 % RH. - Page 7 Accuracy ± (2 % + 10 digits) ± (2 % + 10 digits) ± (2 % + 5 digits) ± (4 % + 5 digits) Test current 1 mA at 500 kΩ ≤1 mA Short circuit current © PCE Instruments...
- Page 8 Storage conditions -10 ... +60 °C, <70 % RH 14 … 140 °F Operating altitude 2000 m Dimensions 200 x 92 x 50 mm Weight 700 g with batteries Standards IEC10101, CAT III 1000 V, pollution degree 2 © PCE Instruments...
-

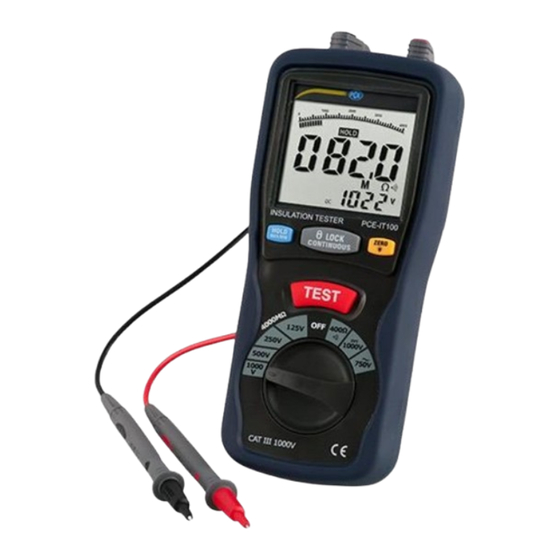

Page 9: Device Description
Device description MAX/MIN, HOLD key LOCK key Zero point and backlight key TEST key Rotary function switch VΩ input jack Ground input jack Strap holder 10. Battery compartment © PCE Instruments... -
Page 10: Turn On Meter
PE connection of the connection cable and the second one to, for example, the carbon brushes to measure the insulation. Measuring insulated cables To measure the insulation of a cable, make sure that the cable ends are open. Now make a measurement by measuring each cable core with every other cable core. © PCE Instruments... -
Page 11: Continuity Test/Resistance Measurement
The high voltage is discharged as soon as the TEST key is pressed again. This procedure can be followed by looking at the lower part of the display. When the discharge is completed, the beep sound will be muted and the measuring tips can be removed safely. © PCE Instruments... -
Page 12: Backlight
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 13 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
