Summary of Contents for PCE Instruments PCE-IT111

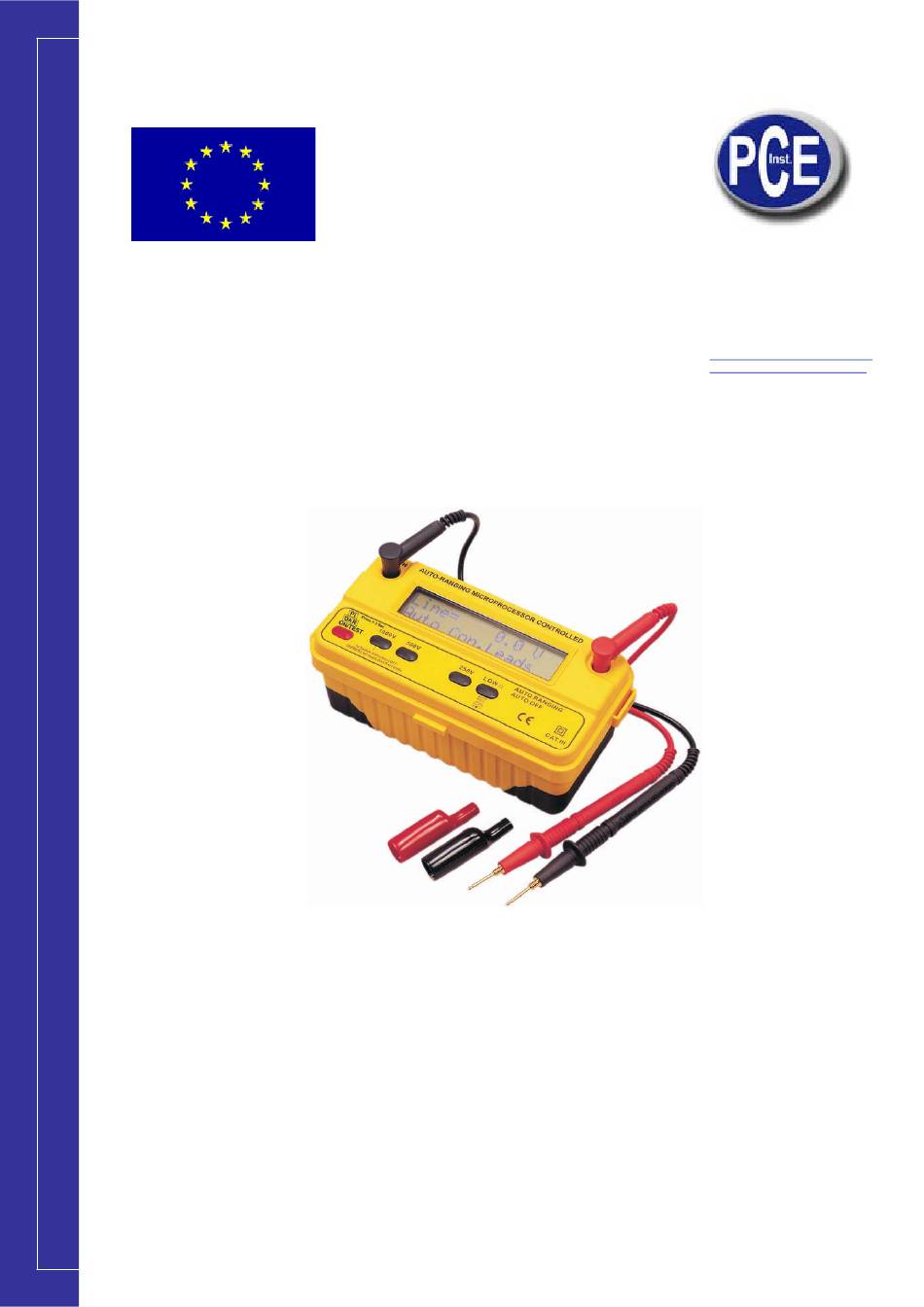

- Page 1 Tursdale Technical Services Ltd Unit N12B Tursdale Business Park Co. Durham DH6 5PG United Kingdom Phone: +44 ( 0 ) 191 377 3398 Fax: +44 ( 0 ) 191 377 3357 info@tursdaletechnicalservices.co.uk http://www.industrial-needs.com/ MANUAL PCE-IT111...
-
Page 2: Table Of Contents
info@tursdaletechnicalservices.co.uk TABLE OF CONTENTS SAFETY RULES ........................3 SAFETY CHECK ........................3 GENERAL DESCRIPTION ...................... 4 BRIEF PRODUCT DESCRIPTION ..................5 FEATURES ..........................5 PRE-TESTING SAFETY ......................7 OPERATING INSTRUCTIONS ....................7 INSIDE LID INSTRUCTIONS ....................8 VERY IMPORTANT AUTOMATIC FEATURES ..............10 FEATURES COMPARISON .................... -
Page 3: Safety Rules
info@tursdaletechnicalservices.co.uk SAFETY RULES CAUTION RISK OF ELECTRIC SHOCK This tester has been designed with your safety in mind. However, no design can completely protect against incorrect use. Electrical circuits can be dangerous and/or lethal when lack of caution or poor safety practices is used. -
Page 4: General Description

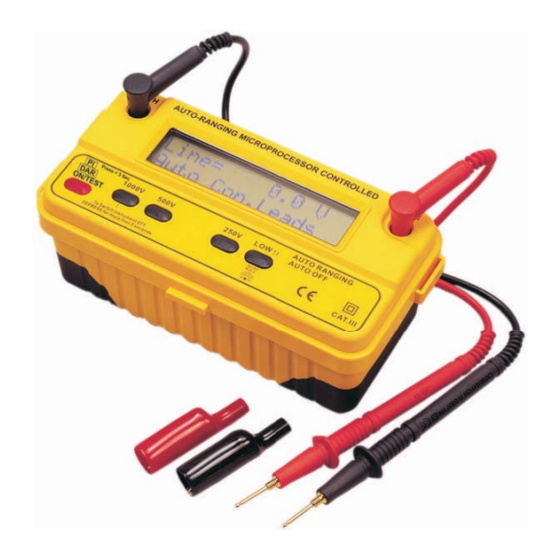

info@tursdaletechnicalservices.co.uk Do not use cracked of broken test leads. THIS INSTRUMENT SHOULD ONLY BE USED BY A COMPETENT, SUITABLY TRAINED PERSON. REMEMBER SAFETY IS NO ACCIDENT CAUTION RISK OF ELECTRIC SHOCK CAUTION READ THE MANUAL GENERAL DESCRIPTION A new generation of Modern Digital Multi-Function Testers is born. These Testers have a range of new features not even found in Expensive Advanced Test Equipments. -
Page 5: Brief Product Description
info@tursdaletechnicalservices.co.uk BRIEF PRODUCT DESCRIPTION The Insulation Tester has all the basic features needed to check and certify an electrical installation. The buzzer feature is always ON. The Batteries are tested at startup. It complies to all good Standards. The Test Button is utilized to switch the Instrument On as well as to start or stop the test. It is also utilized to accept a selection and to disable the EnerSave feature. - Page 6 info@tursdaletechnicalservices.co.uk This mode is the default mode of the tester, meaning that it's monitoring the leads before any test is started and also monitoring the leads at Switch ON of the tester. The voltmeter is also activated during automatic discharge of circuit after an Insulation test. Auto-Hold Auto-Hold feature is always ON (displays Auto Hold on the LCD), the tester automatically hold the last valid reading present on the test leads.
-
Page 7: Pre-Testing Safety
info@tursdaletechnicalservices.co.uk The Voltage on the MOV while at 1mA is going through it is displayed on the LCD as well as the equivalent Max AC voltage which could be utilized on this device. GAS Arrester Selection keys On the Multifunction Tester. The GAS test can be accessed by depressing the 500V and Ohm keys simultaneously. -
Page 8: Inside Lid Instructions
info@tursdaletechnicalservices.co.uk You can turn OFF the Tester without having to wait for Auto-off. To Turn-Off and switch OFF the tester immediately, Depress the 1kV key for 5 Seconds. If a test is still in Progress, pressing 1kV will stop the test. In this case you need to press 1kV for 5 Sec again. - Page 9 info@tursdaletechnicalservices.co.uk...
-
Page 10: Very Important Automatic Features
info@tursdaletechnicalservices.co.uk VERY IMPORTANT AUTOMATIC FEATURES Automatic Vac-dc Detect. All of these testers in this family have the capability to detect Voltage AC and DC. This is done with the use of the internal safety voltmeter which does this work. However, this feature will only work if the test leads are securely connected to the circuit under test. -
Page 11: Features Comparison
info@tursdaletechnicalservices.co.uk FEATURES COMPARISON Insulation Tester Multifunction Tester █ █ Digital EE Calibration (No Potentiometers) █ █ Keypad Operation █ █ Automatic Voltmeter AC/DC at Start / Reset █ █ ON-Reset/Restart Key Off Push Button (press more than 5 Sec on 1kV █... - Page 12 info@tursdaletechnicalservices.co.uk CROWBAR PROTECTION In case of misuse, a crowbar is integrated and will blow the fuse. This crowbar will reduce the damages in case of user mistake. The crowbar is activated at less than 6V (ac or dc). AUTOMATIC BATTERY TEST When the tester starts, it test it's batteries by drawing a heavy current from the batteries.
-
Page 13: Preparation For Use
info@tursdaletechnicalservices.co.uk This family of testers is digitally calibrated. That means that there have no potentiometers or moving part in this product. All the correction factors are saved into the internal memory. BATTERIES The testers can work with 8 x 1.5V batteries. The user can also use rechargeable batteries in the same product. - Page 14 info@tursdaletechnicalservices.co.uk Accuracy on both voltage types........±1.5% of FS INSULATION TEST Resistance Range 250V Test Voltage............2k-2G Ohms 500V Test Voltage............4k-4G Ohms 1000V Test Voltage............8k-8G Ohms Accuracy............... >1MΩ: ±3%rdg 30KΩ-1MΩ: ±5%rdg<30KΩ: ±20%rdg Typical Output Voltage @ 1mA 250V Setting ..............275V Max.
-
Page 15: Limited Warranty
info@tursdaletechnicalservices.co.uk PROTECTIONS Over Load............. 700V (between all terminals) Over Voltage ..........Class III - 700V towards ground. Fuses............1 x 500mA/250V, 5 x 20mm MECHANICAL Size.............. 175(L) x 85(W) x 75(H)mm Material............Polycarbonate /A BS Weight ............Approx 655g(battery included) Display............
