Summary of Contents for PCE Instruments PCE-RDM 10
- Page 1 User Manual PCE-RDM 10 | Geiger Counter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 3 May 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Safety notes ................... 1 Specifications ..................2 Delivery scope ..................2 Description of the device ..............3 Menu ....................... 4 On/Off ..........................4 Main screen ........................4 Memory ..........................6 Settings ..........................7 Contact ....................11 Disposal ....................11 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
-20 ... +50 ºC / 20 ... 85 % RH Dimensions 165 x 90 x 32 mm Weight 220 g Delivery scope 1 x PCE-RDM 10 geiger counter 1 x micro-USB cable 1 x device bag 1 x user manual © PCE Instruments... -
Page 5: Description Of The Device

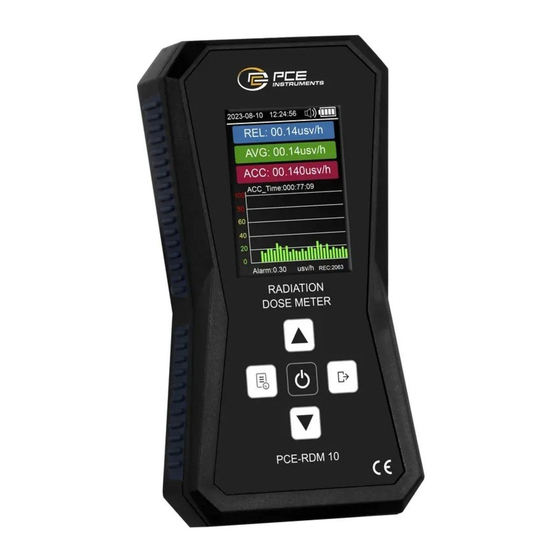

Description of the device Description Display ON/OFF / Menu / Enter Arrow up Memory / Back Arrow down Next USB interface © PCE Instruments... -
Page 6: Menu
You can display the current battery status here. To charge the battery, use the included USB cable. Connect the device to a PC using this cable. REL | Real-time dose Displays the current value in the unit µsv/h. It is updated every second to display the current radiation value. © PCE Instruments... - Page 7 If you are on the main screen, you can switch off the screen (not the device) by pressing the arrow down key. To switch it back on, press the arrow down key again. This function is only active on the main screen. © PCE Instruments...
-
Page 8: Memory
To clear the memory, press and hold the next key (right) in the memory overview until "Clearing" is displayed. When "Clear Finish" appears in the display, the memory has been deleted. The device automatically switches back to measuring mode. © PCE Instruments... -
Page 9: Settings
Use the arrow up and down keys to change the value. Use the right key to change the position (year - month - day - hour - minute - second). Once you have set the date and time, press the left key (history) to return to the main menu. © PCE Instruments... - Page 10 20 sec Use the up and down arrow keys to select the storage rate. Confirm with the ON/OFF key. Once you have set the storage rate, press the left key (history) to return to the main menu. © PCE Instruments...
- Page 11 Use the arrow up and down keys to select the desired time at which the meter should switch off automatically. Confirm with the ON/OFF key. Once you have set the automatic power off, press the left key (history) to return to the main menu. © PCE Instruments...
- Page 12 5.4.7 Version Info | Firmware information Version Info Build Date: 2022-10-17 Version v1.1 You can view the firmware data in this screen. When you have finished, press the left key (history) to return to the main menu. © PCE Instruments...
-
Page 13: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 14 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
