Dometic CK36H401RI Installation Manual

Climate control harrier inverter, air conditioning roof unit
Hide thumbs Also See for CK36H401RI:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
CLIMATE CONTROL
HARRIER
Harrier Inverter
CK36H401RI, CK36H401RIY
Air conditioning roof unit
EN
Installation Manual

Advertisement

Table of Contents
loading

Related Manuals for Dometic CK36H401RI

Summary of Contents for Dometic CK36H401RI

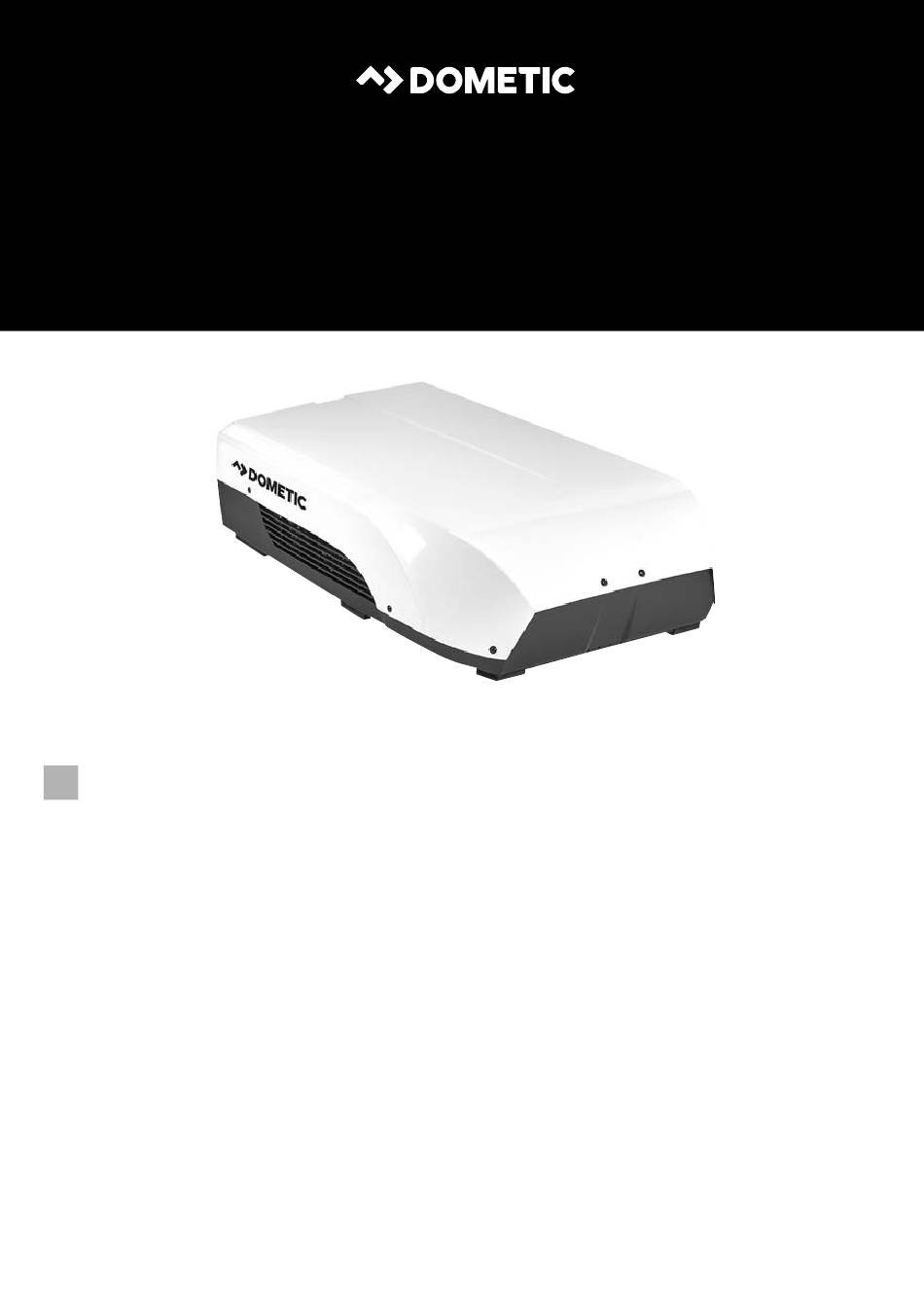

  • Page 1 CLIMATE CONTROL HARRIER Harrier Inverter CK36H401RI, CK36H401RIY Air conditioning roof unit Installation Manual...

  • Page 3: Table Of Contents

    Dometic Harrier Inverter Explanation of symbols Please read this instruction manual carefully before installation and start- up, and store it in a safe place. If you pass on the device to another person, hand over this instruction manual along with it.

  • Page 4: Safety And Installation Instructions

    Safety and installation instructions Dometic Harrier Inverter NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product. Safety and installation instructions Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer and service workshops.
  • Page 5 Dometic Harrier Inverter Safety and installation instructions • Do not undo the upper cover of the roof air conditioner in the event of a fire. Use approved extinguishing agents instead. Do not use water to extinguish fires. CAUTION! • The roof air conditioner must be installed securely so that it cannot fall down.

  • Page 6: Target Group For This Instruction Manual

    Target group for this instruction manual Dometic Harrier Inverter CAUTION! • Fit a fuse of at least 10 A to the connection with the vehicle’s power supply. • Attach and lay the cables so that they cannot be tripped over or damaged.

  • Page 7: Accessories

    If you have questions in respect of the accessories, please contact your local service partner. Intended use The Dometic Harrier inverter roof air conditioner can condition the interior of campers and caravans with cool or warm dehumidified air. The roof air conditioner is not suitable for installation in construction machines, agri- cultural machines or similar equipment.

  • Page 8: Unit Identification

    Dometic Harrier Inverter Unit identification Labels are attached to the Dometic Harrier inverter roof air conditioner. These labels provide the user and fitter with information on specifications of the device. A label is applied to the side of the electrical box inside the rooftop unit and can be read through the side ventilation grille.

  • Page 9: Installation

    Dometic Harrier Inverter Installation Installation CAUTION! Beware of injury The roof air conditioner may only be installed by qualified personnel. The following information is intended for technicians who are familiar with the guidelines and safety precautions to be applied. Note on installation Read this installation manual completely before installing the roof air conditioner.
  • Page 10 Installation Dometic Harrier Inverter Note on transport • Always have someone help you carry the roof air conditioner. • Always lift the roof air conditioner to move it and never drag it over the roof (fig. 4 A). • Do not use the rear or side ventilation slots to lift it (fig. 4 B).
  • Page 11 Dometic Harrier Inverter Installation Note on electrical system • Only a qualified electrician should connect the roof air conditioner to the electri- cal power. • Check that the voltage specification on the type plate is the same as that of the power supply.
  • Page 12 Installation Dometic Harrier Inverter ➤ Drill out the corners (A). ➤ Carefully cut out the opening on the roof using a keyhole saw or a similar tool (B). Make sure no electrical power cables are damaged. ➤ Before installation, check whether the roof hole needs reinforcing.
  • Page 13 Dometic Harrier Inverter Installation Installing in an existing opening NOTE • Existing roof openings of 400 mm x 400 mm or 360 mm x 360 mm are suitable for installing the roof air conditioner. • Dispose of all waste material, glue, silicone and seals separately.
  • Page 14 Installation Dometic Harrier Inverter Running the electrical cables DANGER! Risk of electrocution Make sure there is no voltage at electrically operated components before carrying out work on them! The roof air conditioner must be connected to an electric circuit which is able to supply the required current (see chapter “Technical data”...
  • Page 15 Dometic Harrier Inverter Installation Marking indicating Arrow opening size showing (in this case forward 400 mm – flip over orientation for a 360mm opening) ➤ Fit the roof frame onto the roof of the vehicle over the opening. NOTE Ensure the roof frame is oriented correctly based on opening size other- wise this will cause problems with installation later (refer to markings on the plate).
  • Page 16 Installation Dometic Harrier Inverter ➤ Position the roof air conditioner over the installation opening. There are markings on the roof plate to assist in locating the roof air conditioner correctly. The base of the roof air conditioner should locate in the ribs of the roof plate.
  • Page 17 Dometic Harrier Inverter Installation Completing the installation ➤ Choose the suitable duct seal in accordance with the following table: Roof thickness Seal type 30 – 60 mm transition duct (included with ADB) 60 – 105 mm thicker roof duct kit (purchased separately)
  • Page 18 Installation Dometic Harrier Inverter ➤ Locate the communication cable and feed the black plug end through the opening in the ceiling plate of the ADB. ➤ Raise the ceiling plate into position and clip the transition duct into place using the two finger holds on the transition duct to ensure full engagement.
  • Page 19 Dometic Harrier Inverter Installation ➤ Tighten the bolts using a torque spanner to a torque of 4.0 Nm. Connecting communication cables ➤ Connect to the transfer PCB on the ADB ceiling plate: – the white 13-pin connector from the ADB cover (1) –...
  • Page 20 Installation Dometic Harrier Inverter If the outlet vent doors have rotated during assembly they can be returned to the home position by gently pushing the bottom edge by hand – this will not dam- age the oscillation motors. ➤ Clip the ADB cover on at the front and rear and ensure the magnets are engaged in the 4 corners.

  • Page 21: Troubleshooting

    Dometic Harrier Inverter Troubleshooting Troubleshooting Problem Cause Remedy Roof air condi- Icing sensor has tripped. Outer temperature is too low or tioner constantly all air nozzles are closed. switches itself off. ➤ Set the roof air conditioner to Not cooling well The roof air conditioner is not set to cooling.
  • Page 22 Troubleshooting Dometic Harrier Inverter Problem Cause Remedy ➤ Remove any leaves and other Low air output The air intake grilles are blocked or obstructed. dirt from the ventilation grilles of the roof air conditioner. ➤ Contact an authorised service The blower is defective.

  • Page 23: Disposal

    • Keep noise levels down to reduce noise pollution. For more information on correct dismantling of our products please refer to the recy- cling handbooks at www.dometic.com. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.
  • Page 24 Disposal Dometic Harrier Inverter Any person who handles or works on equipment containing refrigerant in Australia must have an appropriate refrigerant handling license. This includes: • decanting the refrigerant • manufacturing, installing, commissioning, servicing or maintaining equipment regardless of whether it is charged with refrigerant or not •...

  • Page 25: Technical Data

    Dometic Harrier Inverter Technical data Technical data Dometic Harrier Inverter Model: CK36H401RI2, CK36H401RIY2 Compressor rated capacity: 3675 W Cooling capacity based on ISO 5151: 3124 W Heating capacity based on ISO 5151: 2827 W Rated input voltage: 220 – 240 Vw / 50 Hz Power consumption in cooling mode: 6.5 A...
  • Page 26 Technical data Dometic Harrier Inverter 11.1 Main PCB wiring diagram 52-535-LSV02...
  • Page 27 Dometic Harrier Inverter Technical data 11.2 Display and transfer PCB wiring diagram Air Purify Comu DISPLAY PCB Transfer PCB Signal Wire STEP STEP Step Motor Step Motor 52-535-LSV01 11.3 Dimensions 1070...
  • Page 28 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic.com/sales-offices A complete list of Dometic companies, which comprise the Dometic Group, can be found in the public filings of: DOMETIC GROUP AB Hemvärnsgatan 15 SE-17154 Solna Sweden...
