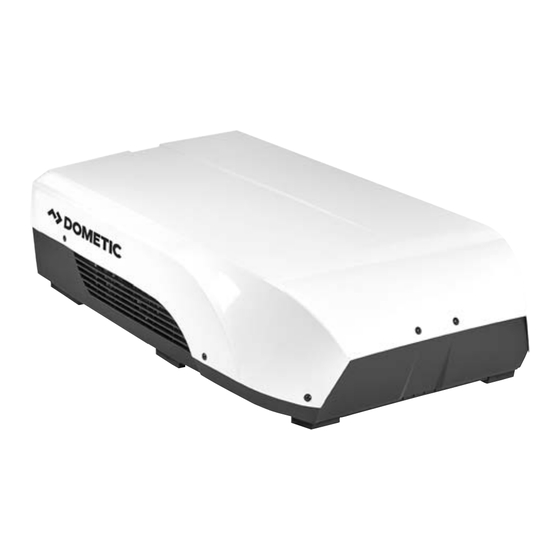

Dometic CK36H401RI Operating Manual

Climate control harrier

Hide thumbs Also See for CK36H401RI:

Operating manual (28 pages)

Installation manual (20 pages)

Installation manual (28 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the CK36H401RI and is the answer not in the manual?

Questions and answers

Summary of Contents for Dometic CK36H401RI

Page 1 CLIMATE CONTROL HARRIER Harrier Inverter CK36H401RI, CK36H401RIY Air conditioning roof unit Operating manual...
Page 3: Table Of Contents
Dometic Harrier Inverter Please read this instruction manual carefully before installation and start- up, and store it in a safe place. If you pass on the device to another person, hand over this instruction manual along with it. Table of contents Explanation of symbols .
Page 4: Explanation Of Symbols
Explanation of symbols Dometic Harrier Inverter Explanation of symbols WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
Page 5 Dometic Harrier Inverter Safety instructions General safety WARNING! • Electrical devices are not toys. The device is not to be used by persons (including children) with reduced physical, sensory or mental capa- bilities, or lack of experience and knowledge, unless they are under supervision or have been given instruction.
Page 6: Target Group For This Manual
Target group for this manual Dometic Harrier Inverter • Do not reach into air outlets or insert any foreign objects in the roof air conditioner. • Do not undo the upper cover of the roof air conditioner in the event of a fire. Use approved extinguishing agents instead.
Page 7: Scope Of Delivery
Installation manual Operating manual Intended use The Dometic Harrier Inverter roof air conditioner can condition the interior of campers and caravans with cool or warm dehumidified air. The roof air conditioner is not suitable for installation in construction machines, agri- cultural machines or similar equipment.
Page 8 Technical description Dometic Harrier Inverter Components The refrigerant circuit of the roof air conditioner consists of the following main components: • Compressor (1) The compressor draws in the refrigerant used and compresses it. This raises the pressure and therefore the temperature of the refrigerant.
Page 9 Dometic Harrier Inverter Technical description Control panel The control panel is at the air outlet unit of the roof air conditioner. It contains the following control and display elements: No. Explanation Button P Switches the roof air conditioner on, off or to stand-by mode...
Page 10 Technical description Dometic Harrier Inverter Remote control All settings of the device (e. g. temperature settings, timer programming) are transmitted to the roof air conditioner by remote control.
Page 11 Dometic Harrier Inverter Technical description The following control and display elements are available on the remote control: Explanation Display Displays the following: • Timer • Set temperature (target value) in °C or °F • Mode • Fan level • Symbols for active additional functions...
Page 12 Technical description Dometic Harrier Inverter Air conditioning modes The roof air conditioner has the following air conditioning modes: Display Mode Explanation message Automatic The air conditioner automatically maintains the temperature between 20 °C and 25 °C by heating or cooling as needed.
Page 13: Before Initial Use
Dometic Harrier Inverter Before initial use Before initial use Inspection before starting up Before you switch on the roof air conditioner, observe the following: ➤ Check whether the supply voltage and frequency correspond to the values specified in the technical data (page 27).
Page 14 Operating the roof air conditioner Dometic Harrier Inverter You can use the remote control to • switch the roof air conditioner on or to stand-by mode • switch the light on and off • make adjustments to the settings • select additional functions Using the remote control The values are directly transmitted to the roof air conditioner when you set them.
Page 15 Dometic Harrier Inverter Operating the roof air conditioner Hint for improved use The following hints will optimise the performance of your roof air conditioner: • Improve the heat insulation of your vehicle by sealing gaps and hanging reflective blinds or curtains on your windows.
Page 16 Operating the roof air conditioner Dometic Harrier Inverter Selecting the blower setting manually The blower controls the strength of the air supply. Display message Explanation Low blower level Medium blower level High blower level Boost to quickly bring the temperature in the RV to the setting...
Page 17 Dometic Harrier Inverter Operating the roof air conditioner Adjusting the air nozzles The air supply within the vehicle can be regulated by setting the air nozzles. ➤ Press the button and/or the button to start oscillation of each door. Pressing again will fix the door at the current angle. When the roof air condi- tioner is turned off, the doors return to the closed position.
Page 18 Operating the roof air conditioner Dometic Harrier Inverter Cancelling the timer settings If you have set the timer, you can cancel these settings as follows: ➤ Press the TIMER button once. ✓ The timer symbol disappears. ✓ The setting has been cancelled.
Page 19 Dometic Harrier Inverter Operating the roof air conditioner Activating the sleep function NOTE The sleep function is only available in “Cooling” ( ) or “Heating” ( modes. When the sleep function is activated, the inside and outside fan speeds are set to low to reduce noise.
Page 20 Operating the roof air conditioner Dometic Harrier Inverter 8.11 Replacing the remote control batteries Replace the batteries if you notice the range of the remote control reduced. NOTE The display of the remote control will still be bright even if the batteries are running low.
Page 21: Cleaning The Roof Air Conditioner
Dometic Harrier Inverter Cleaning the roof air conditioner Cleaning the roof air conditioner NOTICE! Beware of damage • Do not clean the roof air conditioner with a high-pressure cleaner. Exposure to water can damage the air conditioner. • Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the roof air conditioner.
Page 22: Maintenance Of The Roof Air Conditioner
Maintenance of the roof air conditioner Dometic Harrier Inverter Maintenance of the roof air conditioner WARNING! Any other maintenance work to that which is described here may only be carried out by qualified personnel who are familiar with the risks involved when handling refrigerant and air conditioning systems as well as the relevant regulations.
Page 23: Troubleshooting
Dometic Harrier Inverter Troubleshooting Interval Inspection/maintenance Once per year Check the profile seals: ➤ Check the seal between the roof air conditioner and the roof of the vehicle for cracks and other damage. Have the heat exchanger serviced: ➤ Have the heat exchanger of the roof air conditioner serviced by specialist workshop.
Page 24 Troubleshooting Dometic Harrier Inverter Problem Cause Remedy ➤ Set the roof air conditioner to Not heating well The roof air conditioner is not set to heat- ing. heating. The ambient temperature is above –2 °C. The roof air conditioner will only heat at ambient temperatures above –2 °C.
Page 25: Warranty
Dometic Harrier Inverter Warranty Warranty The statutory warranty period applies. If the product is defective, please contact the service partner in your country (addresses on the back on the instruction manual). Our experts will be happy to help you and will discuss the warranty process with you in more detail.
Page 26 Disposal Dometic Harrier Inverter For more information on correct dismantling of our products please refer to the recy- cling handbooks at www.dometic.com. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. ➤ When in operation or undergoing repairs and maintenance work, make sure that the refrigerant circuit is not damaged and refrigerant cannot escape.
Page 27: Technical Data
Dometic Harrier Inverter Technical data Technical data Dometic Harrier Inverter Model: CK36H401RI2, CK36H401RIY2 Compressor rated capacity: 3675 W Cooling capacity based on ISO 5151: 3124 W Heating capacity based on ISO 5151: 2827 W Rated input voltage: 220 – 240 Vw / 50 Hz Power consumption in cooling mode: 6.5 A...
Page 28  +61 7 55076000 · +61 7 55076001 Mail: sales@dometic.com.au AUSTRIA MEXICO SOUTH AFRICA Dometic Austria GmbH Dometic Mx, S. de R. L. de C. V. Dometic (Pty) Ltd. Neudorferstraße 108 Circuito Médicos No. 6 Local 1 Regional Office A-2353 Guntramsdorf Colonia Ciudad Satélite...
