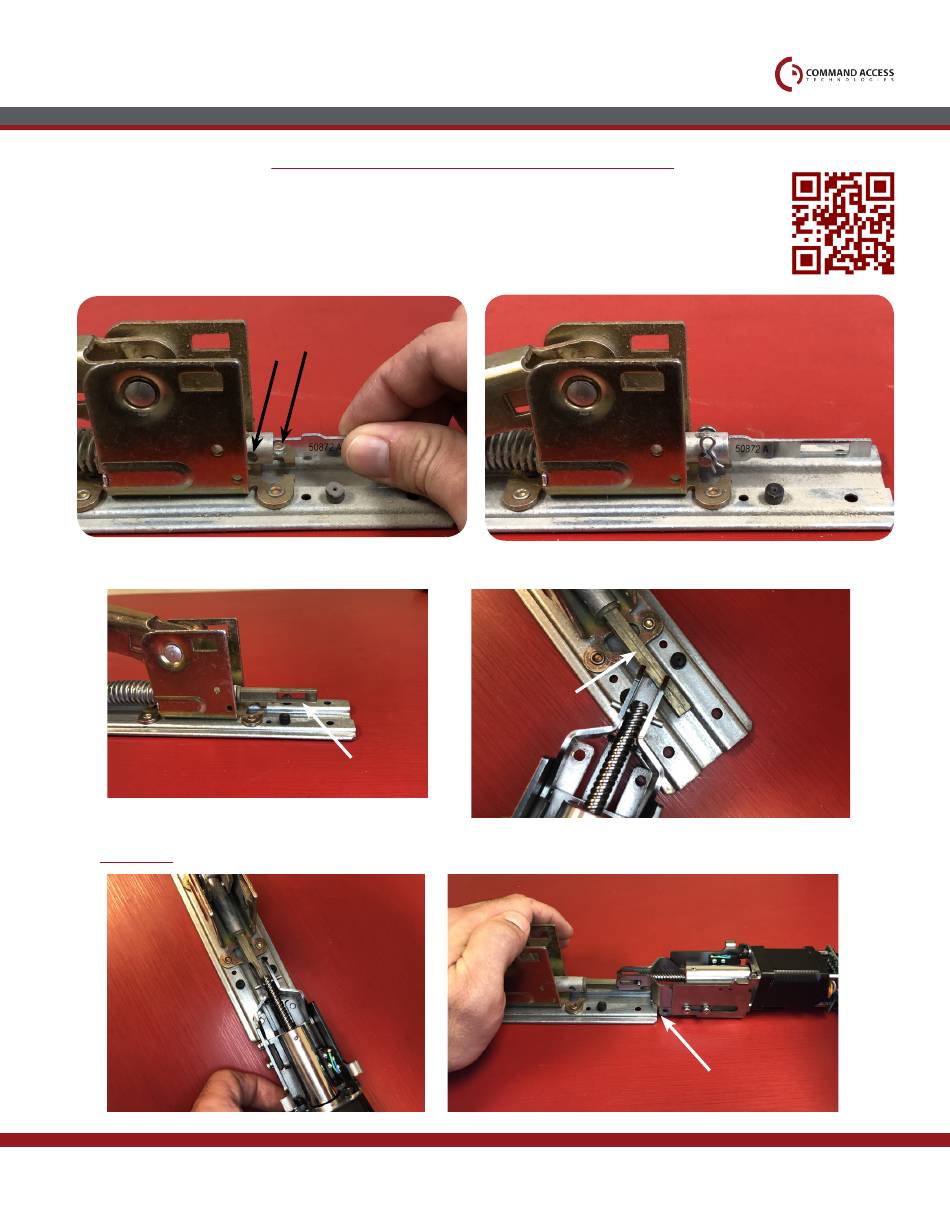

Fire Rated Devices Only - Non-Rated Devices Skip To Step 8 - Command access VLP-UL-M KIT Insert Instructions

6.
Use replacement dogging tail (50872) provided, & insert into
connection rod.
8.
Grab your motor and insert attaching bracket at slight angle through the window on the dogging tail.
9.
Straighten kit, depress back activating bracket, & gently pull back on the motor to slide mounting bracket
UNDERNEATH baserail.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
Installation Instructions
F r d O
ire ated evices nly
a
b
- n -
On rated devices skip tO step
7.
Line up holes a and b, insert pin and secure it with
the clip provided. If you have an older device
without hole b, please scan the qr code for a
video on how to use the provided dogging kit.
8
Pins
