Command access VLP-UL-M KIT Insert Instructions page 6

15.

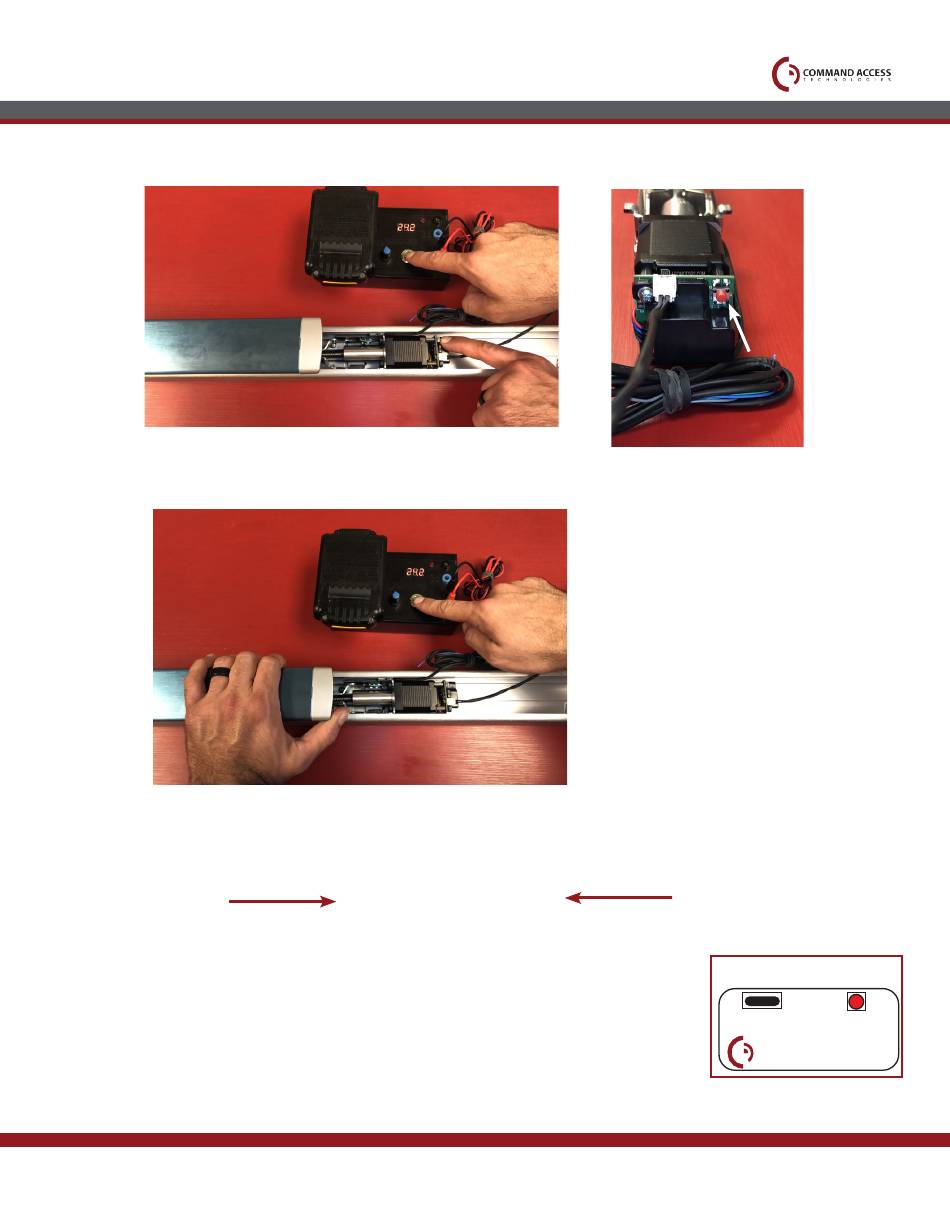

Now, with device reassembled set the PTS by pressing the red button & applying power. You will hear one quick beep to
let you know it is now in programming mode.
Next, depress the push pad to the location you want the device to retract to & hold it there. Apply power & you will hear one
16.
LONG beep. The device has now learned that location.
Fire off the device a few times to ensure the location is correct. after installing the device on the door, recheck to verify
17.
the pushpad is retracting to the desired location. If not, repeat steps 15-16.
Step 1 - To enter PTS mode: Depress MM5 button & apply power. The device will emit 1 SHORT beep. The
device is now in PTS mode.
Step 2 -
While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Step 3 -
Continue to keep pad depressed, the device will emit 1 LONG Beep. After the beep has stopped,
release the pad and now the adjustment is complete. test the new location, If not to your liking
repeat the 3 steps.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
Installation Instructions
Setting PTS
**Important Info**
Make sure to set PTS before finishing installation
PTS Button
MM5 BUTTON
POWER PTS
MM5
