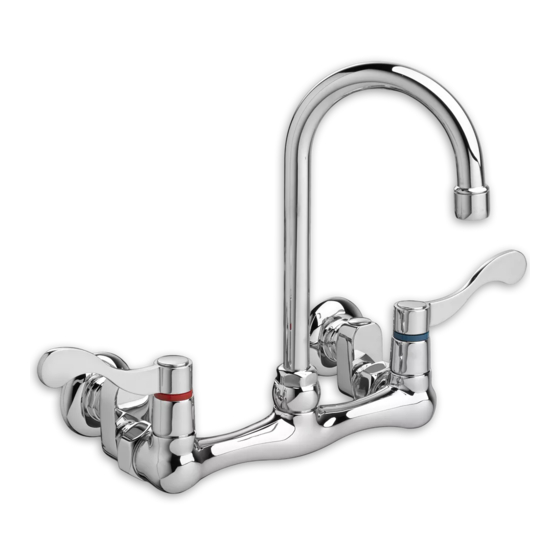

Heritage Wall Mount Sink Faucet,
with Gooseneck Spout and Screwdriver
Stops in Shanks
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Channel Locks
ROUGHING-IN DIMENSIONS
215mm
(8-1/2")
1/2" NPT
(FEMALE)
60mm Dia.
(2-3/8")
1
ROUGH-IN
Prepare water supply lines per "Roughing-in
Dimensions". Install 1/2" NPT. SUPPLY NIPPLES
Adjustable Wrench
120mm
(4-3/4")
168mm
(6-5/8")
265mm
(10-7/16")
FINISHED WALL
Installation
Instructions
7293.172
Plumbers' Putty or Caulking
407mm
(16")
Certified to comply with ANSI A112.18.1M
Phillips Screwdriver
203mm (8")
FINISHED
WALL
1/2" NPT.
FEMALE
THREADS
1/2" NPT.
SUPPLY NIPPLE
M965048 REV.1.7 (5/16)
25.4mm (1")
OFF SET
1-1/4" DIA.
OPENING
1/2" to 1"
Advertisement
Table of Contents
Related Manuals for American Standard Heritage 7293.172
Summary of Contents for American Standard Heritage 7293.172
- Page 1 Installation Instructions 7293.172 Heritage Wall Mount Sink Faucet, with Gooseneck Spout and Screwdriver Stops in Shanks Thank you for selecting American-Standard... the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly-- please read these instructions carefully before you begin. Certified to comply with ANSI A112.18.1M M965048 REV.1.7 (5/16) RECOMMENDED TOOLS...
- Page 2 FINISH INSTALLATION Apply thread sealant or teflon tape to SUPPLY NIPPLES (1). Thread ESCUTCHEONS (2) fully onto INLET SHANKS (3). Thread INLET SHANKS (3) onto SUPPLY NIPPLES (1). Distance between INLET SHANK (3) outlets must be 8" to match the VALVE. Insert RUBBER WASHERS (4) into COUPLING NUTS (5).
- Page 3 Heritage Wall Mount Sink Faucet, with Gooseneck Spout and Screwdriver Stops in Shanks MODEL NUMBER 7293.172 M919646-0020A SPOUT KIT M922880-0020A AERATOR A918572-0070A HANDLE SCREW 051214-0070A SWIVEL/FIXED SPOUT RINGS 012676-0020A WRIST BLADE HANDLE KIT 012087-0070A 012167-0020A SPOUT SEAL KIT SHORT SKIRT 994053-0070A CARTRIDGE M911631-0070A...
