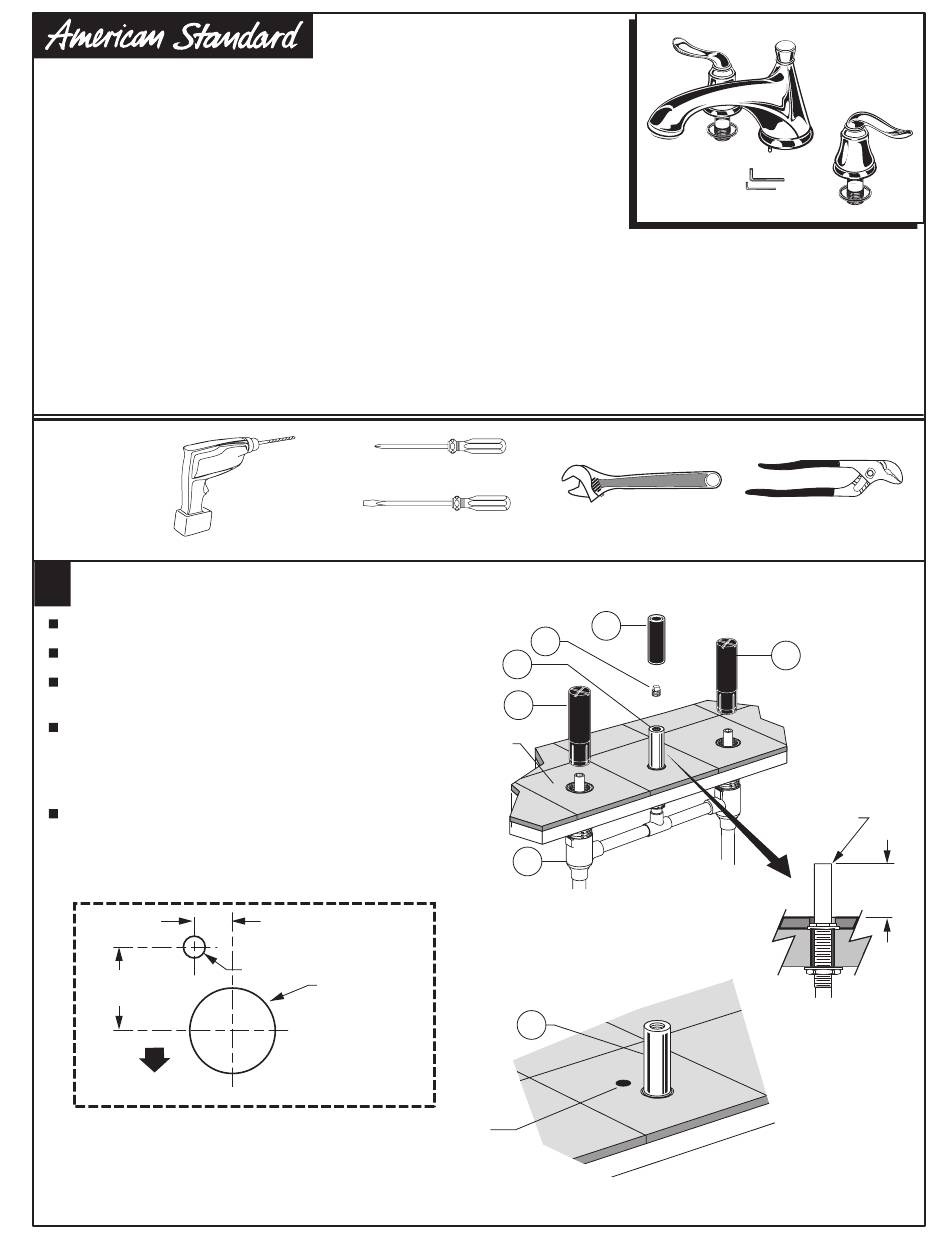

American Standard Princeton Collection Installation Instructions

PRINCETON™
DECK MOUNT TUB
FILLER TRIM KIT
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
Required Tools
1
SPOUT INSTALLATION
Complete FINISHED DECK before trim installation.
Turn off the water supplies.
Remove the GUARDS (1) from the VALVE BODIES (2). Remove the
GUARD (3) and 1/4" PLUG (4) from the SPOUT SHANK (5).
The SPOUT SHANK (5) height should be 1" to 2" above the
FINISHED DECK. Cut the SPOUT SHANK (5) if necessary.
Remove all burrs and bevel the end of the shank. Failure
to do so may damage the SPOUT O-ring during installation
and cause water leakage.
Drill a 3/16" hole in the finished deck for spout locking pin. See
TEMPLATE for location.
19.8mm
(23/32")
FRONT
Instructions
Phillips Screwdriver
Flat Blade Screwdriver
Drill with 3/16" bit
8.4mm
(21/64")
3/16" DIA. HOLE
18.6mm DIA.
(47/64")
SPOUT SHANK
TEMPLATE FOR
SPOUT ROLL
PIN LOCATION
3/16" DRILLED
HOLE
Installation
T508.900
4
5
1
FINISHED
DECK
2
5
Certified to comply with ANSI A112.18.1
U.S. Patent No. D403,750
M 9 6 8 8 4 4 R E V. 1 . 4
Adjustable Wrench
Channel Locks
3
1
REMOVE ALL
BURRS AND
BEVEL
1"- 2"
