- Page 1 Stonex S900 Static Base Configuration Via Web User Interface Revision Date: March 18, 2019 ...
-
Page 2: Table Of Contents
Legal Notices 3 Disclaimer 3 Introduction Warning Information Stonex S900 Receiver 1 Base Location and Setup 2 Base Configuration Through Web User Interface (Web UI) 3 Power Off the Receiver ... -
Page 3: Legal Notices
Legal Notices All the features, functionality, and other product specifications are subject to change without prior notice or obligation. Information contained herein is subject to change without notice. Please read carefully and visit our website, w ww.phoenixlidar.com for further information and support. ... -
Page 4: Introduction
This guide is designed to help you familiarize yourself with your new equipment and successfully use it in the field. This manual is intended to guide you through the basic functions required to collect static GNSS observation data using a Stonex ... - Page 5 Use and Care The S900 GNSS receivers are field ready instruments; however they are also delicate electronic instruments. Take suitable care to avoid damage to the instrument. ● Avoid dropping the receiver as it can change the phase center of the antenna! ...
-
Page 6: Stonex S900 Receiver

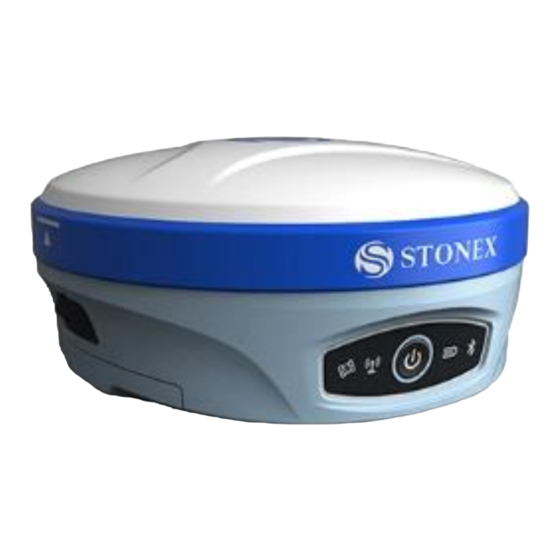

The S900 series receiver is cylindrical with a diameter of 156mm, a height of 76mm and a weight of 1.2kg. The front side of the receiver is control panel, which consists of a power button and four indicators. The bottom are interfaces of UHF ... - Page 7 Control Panel The control panel is shown below: The function of power button and the LED indicators are shown below: ...
-
Page 8: Base Location And Setup
2 Base Configuration Through Web User Interface (Web UI) 2.1 Web UI Functionality The S900 receiver has Web UI functionality. By getting access to its internal hotspot, you can easily manage it on the Web UI. ... - Page 9 2.1 Connect to S900 via Web UI On your smart phone, PC, or handheld, go to Wifi settings and connect to the S900 receiver via WIFI On your device, open an internet browser and search “192.168.10.1” ...
- Page 10 A window pops up and asks for “user name” and “password”. The default “user name” and “password” are: admin; password. Select the button that looks like 3 horizontal lines. Under Settings, Select “Working Mode” ...
- Page 11 PDOP Threshold: OK to leave artificially high at 99 Interval: 1 Hz Auto Record: Yes Note: By selecting “Auto Record: Yes”, the next time you power on the S900, it will begin recording static data (using the ...
-
Page 12: Power Off The Receiver
Web UI (while connected to the head), or power off the receiver head. Note: Once you power off the S900 receiver head, the Static working mode configuration is stored. This configuration will be ... - Page 13 This content is subject to change. Download the latest version from ww.phoenixlidar.com If you have any questions about this document, please contact Phoenix LiDAR Systems by sending a message to support@phoenixlidar.com...
