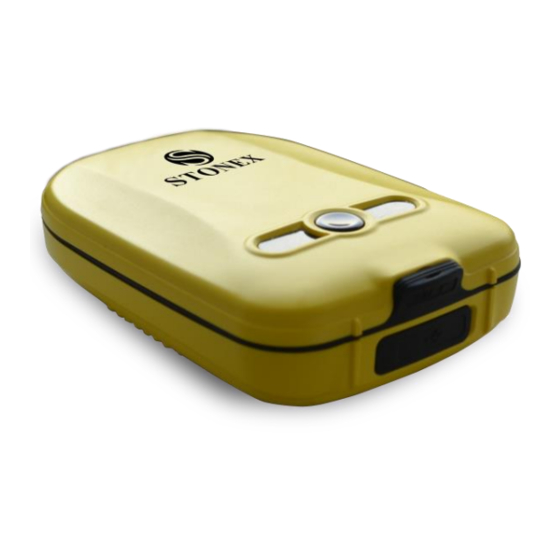

STONEX S5
GNSS Receiver
User Manual
www.stonexpositioning.com
Authors: EC- GQ- Ver.1- Rev.3 (05/05/2016)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5 and is the answer not in the manual?

Questions and answers

Related Manuals for STONEX S5

Summary of Contents for STONEX S5

  • Page 1 STONEX S5 GNSS Receiver User Manual www.stonexpositioning.com Authors: EC- GQ- Ver.1- Rev.3 (05/05/2016)

  • Page 2: Table Of Contents

    Contents A brief introduction to STONEX S5 GNSS ..............2 1. LEDs, button and plugs description ................5 1.1 External antenna port....................6 1.2 USB & SIM plug ......................6 2. Quick start ..........................7 3. Web UI Starting page and available Menus ............8 4.

  • Page 3: A Brief Introduction To Stonex S5 Gnss

    RTK fix mode. High accuracy Agricolture, Mapping, GIS data collection, environmental agencies, Forestry are just a short list of the fields where Stonex S5 will give a decisive impulse to the productivity and to the quality of the positioning data, with the additional advantage using the already existent devices, as Smartphones and Tablet with Android, Ios, Windows operating system.
  • Page 4  launch the BT search from the device, after some second the S/N of S5 will appear in the available BT devices, pair it with the device. How to connect S5 with an existent GPS Network: see from 6.2.1 ...
  • Page 5  The GPS must be completely charged before to use it for the first time; the recharge can be done both with the adapter (fast charge) or connecting the S5 to a computer with USB port (slow charge).  The level of the battery charge can be checked in the WEB UI (5.1 Device –...

  • Page 6: Leds, Button And Plugs Description

    Flashing when receiving differential corrections data On/Off button Press to switch on, long press to switch off Satellite led Flashing according to the number of received satellites Power led Red when under charging, green in working mode Stonex S5 GNSS Receiver – User Manual...

  • Page 7: External Antenna Port

    GPS signals in every position of the GPS (horizontal, vertical, inclined…). S5 can be used into the soft pouch, in your pocket, hanged to the pants belt. When S5 is used for more accurate measurements, mounted in fixed position or on a digger, a tractor and similar machines, an external antenna can be connected.

  • Page 8: Quick Start

    Lightly press the middle round key to start the receiver, S5 default WIFI hot opening, use a mobile phone or laptop to search for S5 WiFi hot and connect with it (The hotspot shows by serial number, no password). The connection display is as follows: Then visit the S5 WEB UI by the IP address 192.168.10.1.

  • Page 9: Web Ui Starting Page And Available Menus

    Web UI Starting page and available Menus Stonex S5 GNSS Receiver – User Manual...

  • Page 10: Satellites

    4. Satellites 4.1 Position This page shows the current positioning status of the device, the solution state, the precision estimation and other general data. Stonex S5 GNSS Receiver – User Manual...

  • Page 11: Skyplot

    4.2. Skyplot The used and the tracked satellites map is visible in the Skyplot page. Stonex S5 GNSS Receiver – User Manual...

  • Page 12: Sate-List

    4.3 Sate-List This page shows the received satellites informations, including constellation (GPS, GLONASS, Beidou), satellite number, Elevation, Azimuth, signal/noise ratio (L1 column) Stonex S5 GNSS Receiver – User Manual...

  • Page 13: Device

    5. Device 5.1 Information The Information page of DEVICE shows the receiver firmware version, GNSS hardware and firmware version, GNSS serial, CORS connection, memory and datalink status. Stonex S5 GNSS Receiver – User Manual...

  • Page 14: Self-Checking

    5.2 Self-Checking The Self checking procedure, activated by pressing the Start Checking button, is used to check the complete set of internal devices of S5; the check takes some second. Stonex S5 GNSS Receiver – User Manual...

  • Page 15: Upgrade

    The Upgrade menu is used to load and activate the Stonex S5 firmware on line. Select the firmware file (it is a .bin file), and import it: S5 will automatically restart to install and activate the upgraded firmware. Stonex S5 GNSS Receiver – User Manual...

  • Page 16: Observation

    User will define the types and the frequencies of all the available NMEA string will transmitted to the external device and optionally stored. To start the NMEA file storage see par. 6.4.1 Output Precision Stonex S5 GNSS Receiver – User Manual...

  • Page 17: Set

    6. Set 6.1 APN The first page of the SET options is used to input the access point name (APN), the User access credentials (User name & password) for the following connections. Stonex S5 GNSS Receiver – User Manual...

  • Page 18: Datalink

    6.2 Datalink This part is to set up the way of S5 obtaining the correct information and the corresponding parameters, S5 supports three kinds of differential correction: SBAS difference, internal network (conventional CORS connection), external difference (transmit the differential correction information via Bluetooth or WIFI hot).

  • Page 19: Sbas

    In Datalink settings select the SBAS option and click save. After some time the SBAS corrections appear in the Information pages, and the augmented accuracy will take effect. Stonex S5 GNSS Receiver – User Manual...

  • Page 20: External Differences

    6.2.3. External Differences Choose External difference when the transmission of the differential to the host equipment is preferred via Bluetooth or WIFI hot. The External differences display in the next page. Stonex S5 GNSS Receiver – User Manual...

  • Page 21: Coordinate Convert

    ‘ready to use’ coordinates in the field. S5 gives 2 ways to calcultate the Coordinate Conversion, a 4 Parameters and the most used 7 Parameters conversion.
  • Page 22 (Coordinate Convert – continue) Seven Parameter Projection Parameter Stonex S5 GNSS Receiver – User Manual...

  • Page 23: Gnss

    The GNSS page has two main purposes: to define the Output Precision and which Satellites constellations must be used. Output Precision (AUTO – MEASUREMENT – NAVIGATION) Choose between only navigation data, only Observation (measurement) data, or both (AUTO). Then choose the desired Satellites constellations. Stonex S5 GNSS Receiver – User Manual...

  • Page 24: Output Precision Modes

    6.4.1 Output Precision modes STONEX S5 offers 2 + 1 precision modes: Navigation, Measurements and AUTO. Choosing AUTO mode, S5 will use measurement mode (high-precision) or navigation mode (low-precision) automatically. Navigation is used when low accuracy with no differential correction is requested, the error may reach several meters.

  • Page 25: Customizing Nmea

    Once the choice is done, by pressing SET the custom NMEA cuìongfiguration is stored and available when S5 is switched on once again. The STATUS option gives the opportunity to output and store (ENABLE) or not the related sentences.

  • Page 26: Other

    Server port: 8080  Press SET to confirm the configuration.  When Observation Setting is enabled and Set, the Obs. data storage will start; see the related file in 5.4 – Device – Observation. Stonex S5 GNSS Receiver – User Manual...

  • Page 27: Time Zone Setting

    6.6.1 Time Zone Setting Stonex S5 GNSS Receiver – User Manual...

  • Page 28: Appendix 1: Technical Specifications

    COMMUNICATION SMB external antenna port Mini USB (for stored NMEA files Connector I/O download and charging) Buzzing SIM Slot Long range (50m) BluetoothTM BluetoothTM Wi-Fi IEEE 802.11 a/b Network Module Support WCDMA/HSDPA+/GPRS WebUI Stonex S5 GNSS Receiver – User Manual...
  • Page 29 Specifications are subject to change without notice. The accuracy of any measurement is subject to possible anomalies due to satellites geometry, atmospheric conditions, electromagnetic disturbances, obstructions. Follow the S5 User Guide to get the best possible performances. Stonex S5 GNSS Receiver – User Manual...

  • Page 30: Appendix 2: Safety Recommendations

    (note like emc compatibility) or generate not correct functionalities of the instrument itself. Approval is granted by the manufacturer of the equipment. Some countries have unique technical requirements for operation in particular Stonex S5 GNSS Receiver – User Manual...

  • Page 31: Gprs/Gsm/Umts Modem

    To comply with those requirements, Stonex srl may modify the equipment to be subjected to grant. Unauthorized modification of the units voids already got approvals, the warranty time and the operational licenses of the instrument. GPRS/GSM/UMTS modem Be sure the use of this product is allowed in the country and in the environment required.
  • Page 32 “safety standards and recommendations “published by Scientific organizations. Stonex srl therefore believes the internal wireless radio is safe for use by end users. The level of energy emitted is far less than the electromagnetic energy emitted by wireless devices such as UMTS phones.
  • Page 33 – If battery fluid gets into your eyes, immediately rinse your eyes with clean water and seek medical attention. Do not rub your eyes! – If battery fluid gets onto your skin or clothing, immediately use clean water to wash off the battery fluid. Stonex S5 GNSS Receiver – User Manual...

  • Page 34: Appendix 3: Copyrights, Warranty And Environmental Recycling

    Appendix 3: Copyrights, warranty and environmental recycling Copyrights and trademarks © 2016, STONEX® Limited. All rights reserved. STONEX®, the STONEX® logo, and S5 GNSS receiver are trademarks of STONEX® Limited. STONEX® Assistant, STONEX® GPS Processor and STONEX® SurvCe are trademarks of STONEX® Limited.
  • Page 35 STONEX® agrees to repair or replace the defected instrument within thirty (30) days only if STONEX® recognizes that the defects of the instrument are not caused by human factors or no obvious damage to its surface is visible. STONEX® warrants any new replaced parts or products are warranted to be...
  • Page 36 If customer fails to do so, this product may not function properly and may be damaged. Customer may lose data or sustain personal injuries. Stonex®, its affiliates and suppliers do not warrant that operation of this product will be uninterrupted or error free;...
  • Page 37 In no event will Stonex®, its affiliates or suppliers be liable to customer or any third party for any damage in excess of the purchase price of the product. This limitation applies to damages of any kind whatsoever including (1) damage to, or loss or corruption of, customer’s records, programs, data or...
  • Page 38 (2) If dealer wants to repair an instrument under warranty period on their site: 1) If dealers don’t have the part in stock they have to send an official order to STONEX® and pay for it and so STONEX® will send the new part to them so they can repair the instrument.
  • Page 39 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Stonex S5 GNSS Receiver – User Manual...
  • Page 40 STONEX® SRL Via Cimabue, 39 - 20851 Lissone (MB) Tel : +390392783008 ; +390392785575 | Fax :+390392789576 www.stonexpositioning.com | info@stonexpositioning.com Stonex S5 GNSS Receiver – User Manual...
