- Page 1 STONEX SC2000 GNSS Receiver User Manual (November 2017)-Ver.1-Rev.0 – Firmware Version: 0.22.170401 NEX S800A GNSS Receiver User Manua www.stonex.it...
-
Page 2: Statement
This user manual is only for your reference. If your receiver does not match the case in user manual, the actual situation of the receiver shall prevail. Information in this document is subject to change without notice; STONEX reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. -
Page 3: Table Of Contents
3.3.4 Network ........................20 3.3.5 Ntrip Server ......................22 3.3.6 Recording ......................... 23 3.3.7 Port Configuration ....................25 3.3.7.1 Bluetooth ....................... 26 3.3.7.2 COM1 ........................27 3.3.7.3 SOCKET ........................28 3.3.8 Alerts ........................... 29 SC2000 GNSS Receiver – User Manual... - Page 4 3.3.9 Registration......................29 3.4 Download ........................30 3.5 System Management ....................31 3.6 Help ..........................31 Operation .................... 32 4.1 Power on ........................32 4.2 Quick setting ....................... 33 Accessories ..................38 SC2000 GNSS Receiver – User Manual...
-
Page 5: Technical Specification
1. Technical Specification 1.1 Overview SC2000 is a high-precision CORS reference station receiver. LINUX system as its development platform, and it supports for secondary development. It has powerful and stable function, and can be used in many fields. 1.2 Main features 555 channels with Multi-constellation GNSS support. -
Page 6: Gnss
L-Band up to 5 channels （3）Positioning accuracy Table 1-1 Positioning accuracy Positioning mode Accuracy Horizontal Vertical static 3mm + 0.1ppm 3.5mm + 0.4ppm 8mm + 1ppm 15mm + 1ppm （4）initialization time：＜10s （5）initialization reliability：＞99.9% SC2000 GNSS Receiver – User Manual... -
Page 7: Ports
1 EVENT port. 1 1PPS port. 1 SIM card slot. 1 GNSS antenna port. 1.3.6 Data and Storage Output data format: NMEA-0183，binary，RINEX, RTCM2.x, RTCM3.x Internal memory：32G External storage：32G SC2000 GNSS Receiver – User Manual... -
Page 8: Hardware Structure

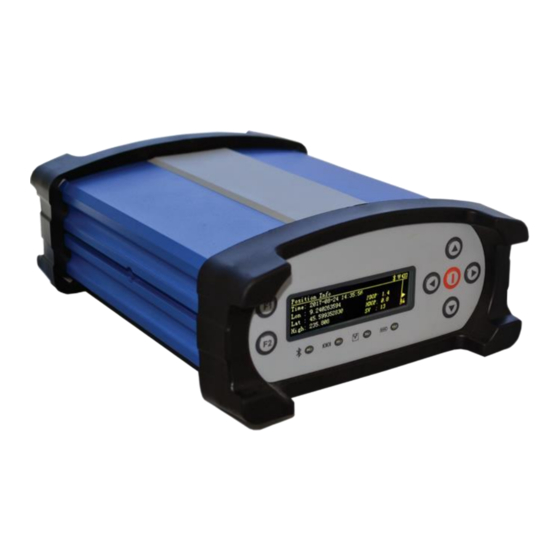

2. Hardware Structure 2.1 Receiver appearance Figure 2-1 2.1.1 Front panel The front panel of SC2000 receiver includes seven buttons, four LED indicators, and one OLED display. Figure 2-2 SC2000 GNSS Receiver – User Manual... - Page 9 After switching on SC2000 receiver, current time information and GPS status are displayed in the main interface. The default language is English, and you can press the left and right arrow keys to obtain the current IP information. Table 2-1 Function table...
-
Page 10: Back Panel
2.1.2 Back panel SC2000 receiver provides a variety of communication interfaces to facilitate users in different application scenarios. Figure 2-3 Back panel Table 2-2 Interface function table Name Function Receiver power supply interface, input voltage DC 9V-28V. USB interface COM1... -
Page 11: Structural Drawings / Mounting Dimensions
2.2 Structural drawings / mounting dimensions (Dimensions in mm) Figure 2-4 SC2000 GNSS Receiver – User Manual... -
Page 12: Web Ui
（2）WIFI login: when SC2000 WIFI hotspot is enable, the user can log in into the WEB interface by connecting to its WIFI network. The hotspot name is the serial number of the receiver. -
Page 13: Summary
3.1 Summary After a succesful authentication to the WEB interface of SC2000, the main page contents: Reference information, device version, system version, network parameters, memory status and so on. It is shown as below: Figure 3-1 Note: The effect of different browsers display may be slightly different, recommend using Google Chrome or IE. -
Page 14: System Information
3.2 System Information 3.2.1 System Information The system information screen will display the station name, device model, device serial number, system version, application version information, built-in OEM board model and network parameter information. Figure 3-2 SC2000 GNSS Receiver – User Manual... -
Page 15: Gps Status
3.2.2 GPS Status The GPS Status page displays the current SC2000 positioning, the base station coordinates and antenna type. Figure 3-3 3.2.3 Satellites This page shows the current satellite signal-to-noise ratio, elevation mask angle, azimuth and other information. The information of GPS, BEIDOU, GLONASS and GALILEO are displayed separately. -
Page 16: Data Transmission
3.2.4 Data Transmission After setting up the data transmission, the user can see the current data transfer status on the page as shown in figure 3-5. Click [Edit] to directly jump to [Ntrip Server]. Figure 3-5 SC2000 GNSS Receiver – User Manual... -
Page 17: Data Recording
In this page, the user can see the specific data recording information as shown in figure 3-6. Click [Edit], the user could modify the parameters like path type, file name, interval, duration time, etc. as shown in figure 3-7. Figure 3-6 Figure 3-7 SC2000 GNSS Receiver – User Manual... -
Page 18: Configuration
The web access port is 80. After setting mapping in the router device, then can access the SC2000 by Internet, enter the ip address and the port, e.g. 113.109.179.180:80 SC2000 GNSS Receiver – User Manual... -
Page 19: Gnss Configuration
3.3.2 GNSS configuration This menu is mainly for the satellite systems and the cutoff angle settings, as shown in figure 3-10. Figure 3-10 SC2000 GNSS Receiver – User Manual... -
Page 20: Tracking Satellites
3.3.3 Tracking satellites In this page, the user can select the satellites they want to track, as shown in figure 3-11. Figure 3-11 SC2000 GNSS Receiver – User Manual... -
Page 21: Network
3-12. Figure 3-12 DHCP：If the mode DHCP is enable, the SC2000 receiver will auto get an IP address, otherwise it uses the static IP. WIFI hotspot: If WIFI hotspot option is enable, then you can use other devices equipped with WIFI to search and connect to the SC2000 receiver. - Page 22 SC200. If anonymous access is turned off, enter the user name and password. After using the FTP tool to connect to the SC2000, the data appears as follows: Figure 3-13 SC2000 GNSS Receiver – User Manual...
-
Page 23: Ntrip Server
Click "Submit" to start the data transmission. In the Data Transmission page you can see the data transfer status displayed as "transmitting". The differential transmission indicator in the front panel of the receiver starts to blink. SC2000 GNSS Receiver – User Manual... -
Page 24: Recording
3.3.6 Recording In this page, the user can set the data recording parameters: Figure 3-15 File name: The static date can be recorded in 4 ways. SC2000 GNSS Receiver – User Manual... - Page 25 Duration time: After setting the record length, the file will be recorded depending on the setting time, and it will be stopped at the end of the record length. If you enable the auto record option, the SC2000 will start a new file automatically.
-
Page 26: Port Configuration
NMEA(OUTPUT)： Output Specified NMEA sentences RTK(INPUT): Differential Input RTK(OUTPUT): Differential Output RAW(OUTPUT)： Raw data output BINEX(OUTPUT) Output Specified BINEX sentences COM1 can be used also to establish the comunication with OEM. Figure 3-16 SC2000 GNSS Receiver – User Manual... -
Page 27: Bluetooth
After opening the Bluetooth and choosing the output/input type, then click “submit”, you can use Bluetooth driver to scan the SC2000. The Bluetooth of SC2000 is named by driver serial. Now we use the PDA to access the SC2000 by Bluetooth. The page of PDA will be shown as follow:... -
Page 28: Com1
The baud rate of com1 must be consistent with the baud of receiving device. Figure 3-21and Figure 3-22 are the process of the COM1 port output RTCM3.2. Figure 3-21 Figure 3-22 SC2000 GNSS Receiver – User Manual... -
Page 29: Socket
3.3.7.3 SOCKET Figure 3-25 and Figure 3-26 are the process of output RAW data via socket. Figure 3-25 Figure 3-26 SC2000 GNSS Receiver – User Manual... -
Page 30: Alerts
3.3.8 Alerts When SC2000 system or program exception occurs, SC2000 will use e-mail or cell phone text messages to notify manager in time for maintenance. Figure 3-27 3.3.9 Registration When SC2000 receiver expires, you need to register it. Enter the registration code and click Submit, then instrument registration will be completed. -
Page 31: Download
3.4 Download Download data stored in the SC2000 receiver through the network connection; Alternatively, you can connect to SC2000 receiver for copying data via USB cable; Figure 3-29 SC2000 GNSS Receiver – User Manual... -
Page 32: System Management
2. When setting the security login, the admin account is the administrator account and the guest account can only view the information. 3.6 Help Here provide operating guidelines for SC2000 introductory guiding. SC2000 GNSS Receiver – User Manual... -
Page 33: Operation
OLED screen as shown in figure 4-1. Figure 4-1 Press left or right soft key to view the current IP information of Ethernet, WIFI, and GPRS. Figure 4-2 Figure 4-3 SC2000 GNSS Receiver – User Manual... -
Page 34: Quick Setting
Lightly press power key to confirm, then enter into “Start Record”, you can see the page shown in figure 4-6. Figure 4-6 When the static is stopped, the cursor stops at the row of "Start Record"; SC2000 GNSS Receiver – User Manual... - Page 35 Figure 4-8 You can quickly set differential type, start and stop transmit data. Network Settings: SC2000 network settings can be set to automatically obtain the IP or choose a static IP mode; Figure 4-9 SC2000 GNSS Receiver – User Manual...
- Page 36 Figure 4-10 Figure 4-11 Figure 4-12 Antenna settings: Not supported at the moment. Figure 4-13 SC2000 GNSS Receiver – User Manual...
- Page 37 Figure 4-14 Other settings: Other settings could set the OLED language display, OLED brightness, OLED turned off interval. Figure 4-15 Figure 4-16 SC2000 GNSS Receiver – User Manual...
- Page 38 Device information: In this page, you can get the information of device model, device serial, hardware version and BOOT version. Figure 4-17 Figure 4-18 Figure 4-19 SC2000 GNSS Receiver – User Manual...
-
Page 39: Accessories
Optional accessories Antenna HX-CG7601A Chock ring GNSS antenna Cable Geo10-35-01 Cable for choke ring antenna (35m) Cable TC.GK427.ABL lemo 5 to DB-9 serial(RS485) Antenna QC410A UHF antenna for external radio, TNC connector, 410- 430MHz SC2000 GNSS Receiver – User Manual... - Page 40 Antenna QC430A UHF antenna for external radio, TNC connector, 430- 450 MHz Antenna QC450A UHF antenna for external radio, TNC connector, 450- 470 MHz SC2000 GNSS Receiver – User Manual...
- Page 41 STONEX® SRL Via Cimabue, 39 - 20851 Lissone (MB) Tel : +390392783008 ; +390392785575 | Fax :+390392789576 SC2000 GNSS Receiver – User Manual www.stonex.it | info@stonex.it...
