- Page 1 STONEX S580 GNSS RECEIVER User Manual March 2022 – Ver. 2 -Rev. 1 www.stonex.it...
-
Page 2: Table Of Contents
Standard Limited Warranty ......................... 23 Shipping policy ............................. 24 Return policy Dead on Arrival instruments ....................24 Firmware/Software warranty ........................24 Over Warranty repair(s) policy ........................24 Disclaimer and Limitation of Remedy ......................24 Stonex S580 GNSS Receiver – User Manual... - Page 3 For countries in the European Union (EU) ....................26 For countries outside European Union (EU) .................... 26 Appendix 2: Safety Recommendations ....................27 Warnings and Cautions ..........................27 Wireless Module Approval .......................... 27 Instrument Approval ........................... 27 Stonex S580 GNSS Receiver – User Manual...
-
Page 4: Device Description

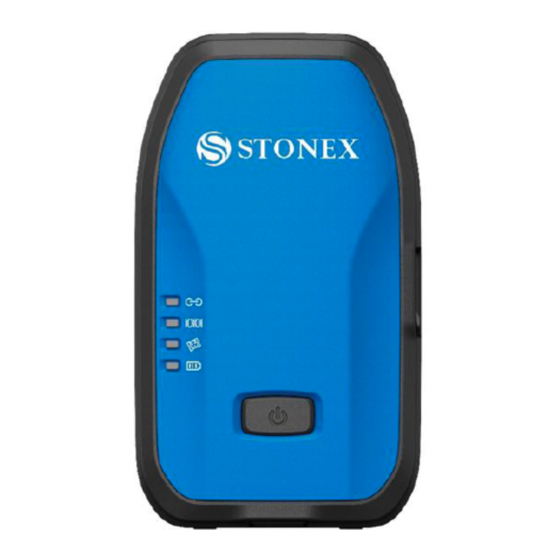

1. Device Description Front view of S580 Side view of S580 Upper view of S580 Stonex S580 GNSS Receiver – User Manual... - Page 5 Red flash with warning beep when power is less than 10% • Red always on in charging • Green on when charging finished • Power button Button to turn on/off the receiver USB type-C port Type C port supports USB 2.0, not OTG Stonex S580 GNSS Receiver – User Manual...
-
Page 6: Basic Operations
The name of Stonex GNSS receiver hotspot is the receiver serial number. After connecting to S580 Wi-Fi, open a browser and type the following IP address: 192.168.10.1. A window pops up and asks for username and password; the default username and password are “admin” and “password”... -
Page 7: Web Interface
In the Position page, you can view the current position information and the quality of the solution in the case differential corrections are received. In the Sky Plot page, you can view satellite Sky map. The satellites are colored according to the constellation. Stonex S580 GNSS Receiver – User Manual... - Page 8 In the Satellites List page, you can see satellites information. In this page, the satellites are also coloured according to the constellation. Gray colour is used to satellites tracked but not used to calculate the current position. Stonex S580 GNSS Receiver – User Manual...
-
Page 9: Device Section
In the Information page, you can view device info such as firmware version, available storage, the level of the battery, etc. In the Self-Test page, you can run the self-test, it is used to identify if there are hardware problems with one or more modules of the receivers, GPS board, wi-fi, etc. Stonex S580 GNSS Receiver – User Manual... - Page 10 The Upgrade page, it’s used to upload the firmware. To upgrade your S580 choose the firmware file from your PC and press Upload. Wait until the process is completed. In the Observation page, you can download observation files. Download the raw data stored inside the S580 on your PC and then use them in the post process operation.
- Page 11 In the NMEA page, you can download NMEA files. In the View Log page, you can download, and view device run log. Stonex S580 GNSS Receiver – User Manual...
-
Page 12: Set Section
To connect to the SR02 external radio you must scan for the Device list and select the serial number of the radio. For the SR02 configuration refer to the section 4.2 of this manual. Stonex S580 GNSS Receiver – User Manual... - Page 13 Point name: this will be visible in the Observation file header, maximum 4 digits. Antenna Height: this will be visible in the Observation file header, the unit of measure is millimeters, the measure must be taken to the bottom of the device. Stonex S580 GNSS Receiver – User Manual...
- Page 14 In the GNSS page, you can set the cutoff angle and the constellation used (GPS always enabled). In the set NMEA Settings page, you can set NMEA statements and output frequency. You can also start and stop the NMEA recordings Stonex S580 GNSS Receiver – User Manual...
-
Page 15: External Radio Setup
General scheme The SR02 radio receive the corrections from the base’ radio and transmit them to a controller equipped with Cube-a via Bluetooth, the controller at this point will forward the correction to the S580 using the Bluetooth connection. Radio configuration Set the same protocol and frequency used by the base, pressing the radio buttons. - Page 16 When these settings are shown, it means that the Bluetooth is enabled, and the PIN is disabled. Cube-a configuration Connect to S580 In Device > Working mode> Rover, select Bluetooth Radio as Communication Mode Stonex S580 GNSS Receiver – User Manual...
-
Page 17: Base Mode
Go back and complete the rest of the rover configuration then press Apply 4.2 Base mode The connection to the S580 is direct and can be done only using the WebUI, please refer to the 3.3 section of this manual. Radio configuration Set the protocol and frequency you want to use, pressing the radio buttons. - Page 18 Radio Mode page, select Transceiver Data Link page, select Bluetooth Bluetooth page: set the following configuration: When these settings are shown, it means that the Bluetooth is enabled, and the PIN is disabled. Stonex S580 GNSS Receiver – User Manual...
-
Page 19: Care And Transport
The cord and charger may only be dry dusted. 5.5 Transport When transporting the product by rail, air or sea, always use the complete original STONEX packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration. -
Page 20: Warning And Declaration
Consult the dealer or an experienced radio/TV technician for help. • 6.2 FCC RF warning statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Stonex S580 GNSS Receiver – User Manual... -
Page 21: S580 Technical Features
7. S580 Technical Features S580 Phase center S580 Phase center with pole adapter L1= 121.5 mm L1= 146.5 mm L2= 116.5 mm L2= 141.5 mm Stonex S580 GNSS Receiver – User Manual... -
Page 22: S580 Bundle
S580 standard bundle is composed by the receiver, the pole mount, the Power adaptor with plugs according to the country, two USB cable (1 Type C-Type C and 1 Type C-Type A), a cloth bag to use the S580 without the pole and a carton box Figure 6.2: S580 Carton Box... -
Page 23: Appendix 1: Copyrights, Warranty And Environmental Recycling
Release Notice This is the March 2022 release of the STONEX® S580 GNSS new model receiver user guide. The following limited warranties give you specific legal rights. You may have others, which vary from state/jurisdiction to state/jurisdiction. -
Page 24: Shipping Policy
Shipping policy The Customer or the dealer is required to pay for the charges for shipping of fault parts or instruments to STONEX ® representative office and STONEX ® is providing the shipping for return. Dealers need to follow STONEX ®... - Page 25 (2) any direct or indirect damages, lost profits, lost savings or other special, incidental, exemplary or consequential damages, whether for breach of warranty, contract, tort or otherwise, or whether arising out of the use of or inability to use the product and/or the enclosed user guides and/or manuals, even if Stonex, or an authorized Stonex ®...
- Page 26 For countries outside European Union (EU) The treatment, recycling, collection and disposal of electric and electronic devices may vary in accordance with the laws in force in the Country in question. Stonex S580 GNSS Receiver – User Manual...
- Page 27 (note like emc compatibility) or generate not correct functionalities of the instrument itself. Approval is granted by the manufacturer of the equipment. Some countries have unique technical requirements for operation in particular frequency bands. To comply with those requirements, Stonex srl may modified the equipment to be subjected to grant.
- Page 28 STONEX® SRL Viale dell’Industria, 53 - 20037 Paderno Dugnano (MI) Tel: +390278619201 Stonex S580 GNSS Receiver – User Manual www.stonex.it | info@stonex.it...
