- Page 1 STONEX SC400A CORS RECEIVER User Manual October 2021 – Ver. 1 – Firmware 2.12-210827-STX – Rev.2 www.stonex.it...
-
Page 2: Table Of Contents
Reference Station ..........................19 4.2.1 Reference Station ........................19 4.2.2 GNSS Configuration ........................21 4.2.3 Tracking Satellites ........................22 NTRIP Server ............................ 23 Recording ............................24 Port Configuration ........................... 27 October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... - Page 3 For countries outside European Union (EU) .................... 47 Appendix 2: Safety Recommendations ......................47 Warnings and Cautions ..........................47 Wireless Module Approval .......................... 48 Instrument Approval ........................... 48 October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual...
-
Page 4: Statement
Information in this document is subject to change without notice; STONEX reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. -
Page 5: Top View

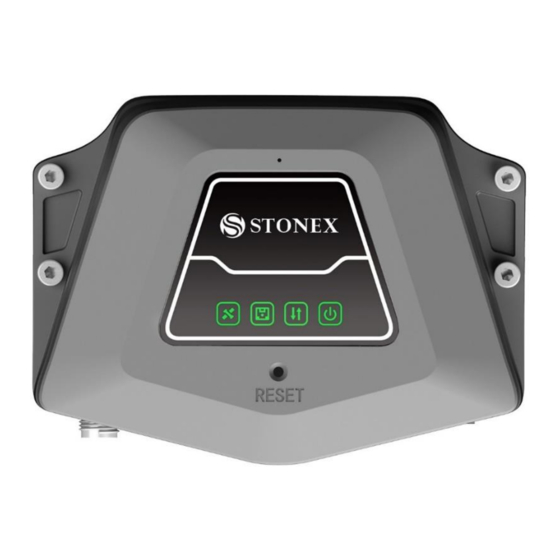

1.1 Top view October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 6: Front View
Flash: satellites visible 1.2 Front view Num. Item Description GNSS TNC, external GNSS slave antenna connector Wired Ethernet port DB9 serial port 8 to 36 VDC external power input October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 7: Bottom View
1.3 Bottom view October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 8: Technical Specification
3 mm + 0.1 ppm RMS 3.5 mm + 0.4 ppm RMS 8 mm + 1 ppm RMS 15 mm + 1 ppm RMS Initialization time: < 10 s Initialization reliability: > 99.9% October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 9: Physical Specification
2.5 Connection Ports I/O Connectors Power port, Lemo connector 1 Serial port, DB9 Ethernet port, RJ45 100/1000 Mbps GNSS antenna, TNC female Bluetooth 5.0 + EDR Wi-Fi 802.11 b/g/n/ac October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 10: Data Recording
GGA, GSA, GSV, ZDA, RMC, VTG, GST, GLL, HDT, FVI, HPR, KSXT, ATTSTAT, RTKSTAT, VCT, RD1, GGA2, BIN3, BIN5, BIN209 Reference outputs RTCM 2.x-3.x, CMR, CMR+, RINEX, BINEX October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 11: User Interface And System Configuration
Remote Management Remote config by STONEX Software FTP server For data download Email alerts For low storage and other warning messages NTP server Support Others DDNS, VPN, SNMPD, Firewall October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 12: Operation
SC400A shuts down if not connected to power. 3.2 Connect External accessories To work the SC400A needs to connect to the external antenna, you can connect the external antenna to the GNSS port. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 13: Web Ui
4. Web UI SC400A has the WEB interface function, you can connect to the SC400A’s Wi-Fi, enter the WEB interface and view device information, and set up it. The Wi-Fi hotspot name is the serial number of the receiver. In the browser window enter the IP address: 192.168.10.1. This address will open the user registration page (shown below), in which you need to fill in the username and password. -
Page 14: Summary And System Information
GNSS and its serial number. Below we find information on the position, GNSS status and time. After we find a section dedicated to information on the memory. Finally, we have the information on power supply. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 15: Gps Status
4.1.3 GPS Status Status page displays the current SC400A positioning state, the base station coordinates and antenna type, height, and measurement mode. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 16: Satellites
In this page you can choose what to display. By selecting the option at the top, you will see the list of satellites, or the sky plot (both screens in the figures below). In the satellites table the different colors show used satellites (green) and tracked (white). October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... - Page 17 October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual...
-
Page 18: Map
4.1.5 Map On this page you can see the position of the station on the map. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 19: Reference Station
These settings are reflected in the recorded files (see Recording menu) and in the coordinates transmitted by the base (See NTRIP server menu). October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... - Page 20 October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual...
-
Page 21: Gnss Configuration
On this page you can set information about the satellite systems. Cut-off angle, constellations used, RTK mode, interference detection. Excluding the cut off angle, all other settings are a series of options that can be activated. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 22: Tracking Satellites
On this page, it is possible to select satellites to exclude from tracking. With the sidebar you can scroll down to see all the satellites of each constellation. Below are the commands to select all the satellites and to deselect them all. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 23: Ntrip Server
If the data must be transmitted to an external caster: address, port and password are those of the external caster. If SC400A is to act as a caster: NTRIP caster function must be enabled (see Port Configuration page) address is 127.0.0.1, port must be the same as that indicated on the NTRIP caster function (see Port Configuration page). -
Page 24: Recording
Recording can be stopped from this bar. By clicking on the file contained in the Path cell you can view the recorded files (see the second picture below, you can perform some operations on the recorded files, such as FTP push). October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... - Page 25 Path type defines the folder structure where files are saved. File Name defines the name of the files. They both use variables: YYYY year month day of the month day of the year Session Schedule name October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual...
- Page 26 File Push: Enables automatic transfer of RINEX files via FTP. This option is effective only if raw file transfer is enabled. The FTP server and the access parameters are those indicated in the Push Parameters section. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual...
-
Page 27: Port Configuration
CMD (Input / Output): allows you to send commands and receive responses NMEA (Output): send NMEA messages RTK (Input): receives differential data. Use only if work mode is rover October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... - Page 28 Spectrum Analysis (Output): Function currently under development NTRIP Client allows you to connect the SC400A to a caster using the NTRIP protocol. Use only if work mode is rover. NTRIP Caster: if enabled, activates the Caster service. Allows you to set the transmission port and account for the NTRIP client.
-
Page 29: Network
This is the section for the Internet connection configuration and related services, including DDNS, FTP, VPN. Let's see its pages and subcommands below. 4.6.1 Network This page is mainly set for the data link method used by SC400A. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 30: Dynamic Dns
This is the page where it is possible to unable/disable the Dynamic DNS. By choosing the enable key it will be possible to enter the service provider, host name, username, and password. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 31: Ftp Server
The anonymous access is enabled by default: we recommend disabling it if the receiver is accessible from the Internet. The Encryption enable the SSL / TLS explicit encryption. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 32: Ntp Server
4.6.4 NTP Server NTP (Network Time Protocol) Server allows you to synchronize the computer clock with the time of the receiver. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 33: Snmpd
Trap IP: Receivers can specify some IPs and then automatically send information to those IPs. Allow Access IP: Receivers can allow some devices to proactively obtain information about receivers through IP addresses. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 34: Firewall
IPs from which you can access the web interface, any other IP is blocked. Blacklist works the opposite way: it allows to define the only IPs that cannot access the web interface while any other IP can access. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 35: Vpn Client
4.6.7 VPN Client This function is under development. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 36: Frp Setting
4.6.8 Frp Setting This function is for internal use. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 37: Administration
Below in the page you can see the topics on which the alarm can be triggered. Some of these arguments allow you to set a reference value. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 38: Registration
4.7.2 Registration On this page, you can check the registration information of the receiver and the GNSS board. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 39: Configuration Set
4.7.3 Configuration Set In this page you can download/upload configuration files. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 40: Remote Debug
4.7.4 Remote Debug Remote debug allows to connect SC400A with Cube-cors. Simply insert the IP of the server where Cube-cors is running and its ports. Further details on Cube-cors manual. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 41: System Management
On this page you can update the receiver firmware, modify the security settings, view the logs. At the bottom you can find some controls to do tests and to reset. Online upgrade: mainboard/GNSS firmware update and MCU component. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 42: Download
Language and Log Out Language command allows you to select the language. The available languages are English, Russian, traditional Chinese, simplified Chinese. Logout command if clicked closes the session. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 43: Bundles
5. Bundles SC400A is available in standard version with 10Hz as position rate. There is the possibility to upgrade it to 20Hz. Model: Product Code Description B75-000217 SC400A CORS, GNSS 800 Ch, 10Hz, Wi-Fi, BT Power Adaptor with 3 plugs (US, UK and EU), 15V/2A, 2PIN... - Page 44 SA1800, GNSS 3D Choke Ring antenna 30-357128 SA1500, GNSS 2D Choke Ring antenna 30-357135 SA1200 GNSS 3D Choke Ring Antenna 30-357136 SA1000, GNSS Mini Choke Ring Antenna 30-357134 SA65 GNSS Geodetic Antenna October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual...
-
Page 45: Appendix 1: Copyrights, Warranty, And Environmental Recycling
Limited Warranty shall become property of STONEX ® . All products that have to be repaired have to be returned to our technical representative office location via any delivery company the customer prefers, nevertheless STONEX ® is not accountable for the unlikely event that the Products gets lost in transit. -
Page 46: Shipping Policy
Shipping policy The Customer or the dealer is required to pay for the charges for shipping of fault parts or instruments to STONEX ® representative office and STONEX ® is providing the shipping for return. Dealers need to follow STONEX ®... -
Page 47: Environmental Recycling
CAUTION - A Caution alerts about a possible risk of damage to the equipment and/or loss of data, but no risk for human safety. October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual... -
Page 48: Wireless Module Approval
(note like emc compatibility) or generate not correct functionalities of the instrument itself. Approval is granted by the manufacturer of the equipment. Some countries have unique technical requirements for operation in particular frequency bands. To comply with those requirements, Stonex Srl may modified the equipment to be subjected to grant. - Page 49 STONEX® SRL Viale dell’Industria, 53 - 20037 Paderno Dugnano (MI) Tel: +39 02 78619201 October 2021 – Ver. 1 Stonex SC400A CORS Receiver – User Manual www.stonex.it | info@stonex.it...
