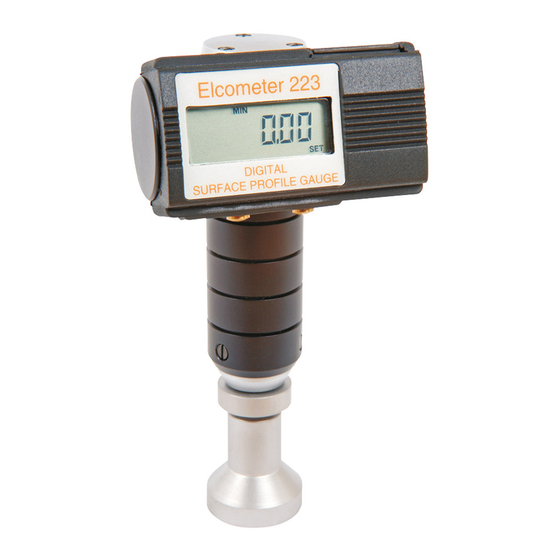

- Page 1 Elcometer 223 Digital Surface Profile Gauge Operating Instructions...
- Page 2 (electronic, mechanical, magnetic, optical, manual or otherwise) without the prior written permission of Elcometer Limited A copy of this Instruction Manual is available for download on our Website via www.elcometer.com. Doc.No. TMA-0152 Issue 03...
-
Page 3: Table Of Contents
CONTENTS Section Page Introduction ..............2 Getting started. -
Page 4: Introduction
Our products cover all aspects of coating inspection, from development through application to post application inspection. The Elcometer 223 Digital Surface Profile Gauge is a world beating product. With the purchase of this product you now have access to the worldwide service and support network of Elcometer. For more information visit our website at www.elcometer.com... - Page 5 • Operating Instructions Your Elcometer 223 Digital Surface Profile Gauge may be packed in a cardboard and foam package. Please ensure that this packaging is disposed of in an environmentally sensitive manner. Consult your local Environmental Authority for further guidance.
-
Page 6: Getting Started
2 GETTING STARTED 1. Place the foot on the glass slide provided, to ensure the tip is in the same plane as the base of the foot. 2. Switch the unit on by pressing Control 1 lightly. 3. The unit will display '0.000mm' (or '0.0000"' if set to imperial). 4. - Page 7 OTHER FEATURES This electronic measurement device has several features that are not normally used for profile measurements as follows: - Resolution For profile measurement, resolution will normally be set to '0.000mm' or '0.0000". However, resolution of 0.01mm or 0.001" is available by pressing Controls 1 and 2 simultaneously, and holding until the decimal point moves.
-
Page 8: Maintenance
When the last digit is set, press and hold Control 1. 4 MAINTENANCE Elcometer products are designed to give many years reliable service under normal operating and storage conditions. Changing the Battery If the display shows 'B' in the bottom left hand corner, the battery should be changed. -
Page 9: Technical Specification
365g (9oz) 6 ACCESSORIES Your Elcometer 223 Digital Surface Profile Gauge is complete with all the items required to get started. The following optional accessories are available from Elcometer, or Elcometer supplier. To place an order please quote the sales par number which follow the description of each accessory. -
Page 10: Related Equipment
7 RELATED EQUIPMENT In addition to the Surface Profile Gauge, Elcometer produces a wide range of other Surface Profile Equipment. Users of the Surface Profile Gauge may also benefit from the following Elcometer product ranges: • Elcometer 122 Textex Replica Tape •...
