powersoft DigiMod IS Series Technical Notes page 2

Make one cable XLR male / Phoenix 5 poles following this
schematic pin:
XLR male Pin
GROUND 1
HOT 2
COLD 3
With the same pin configuration use the other phoenix 5 poles
connector to make the parallel input.
Connect this cable to the phoenix input connector on DigiMod
amp module

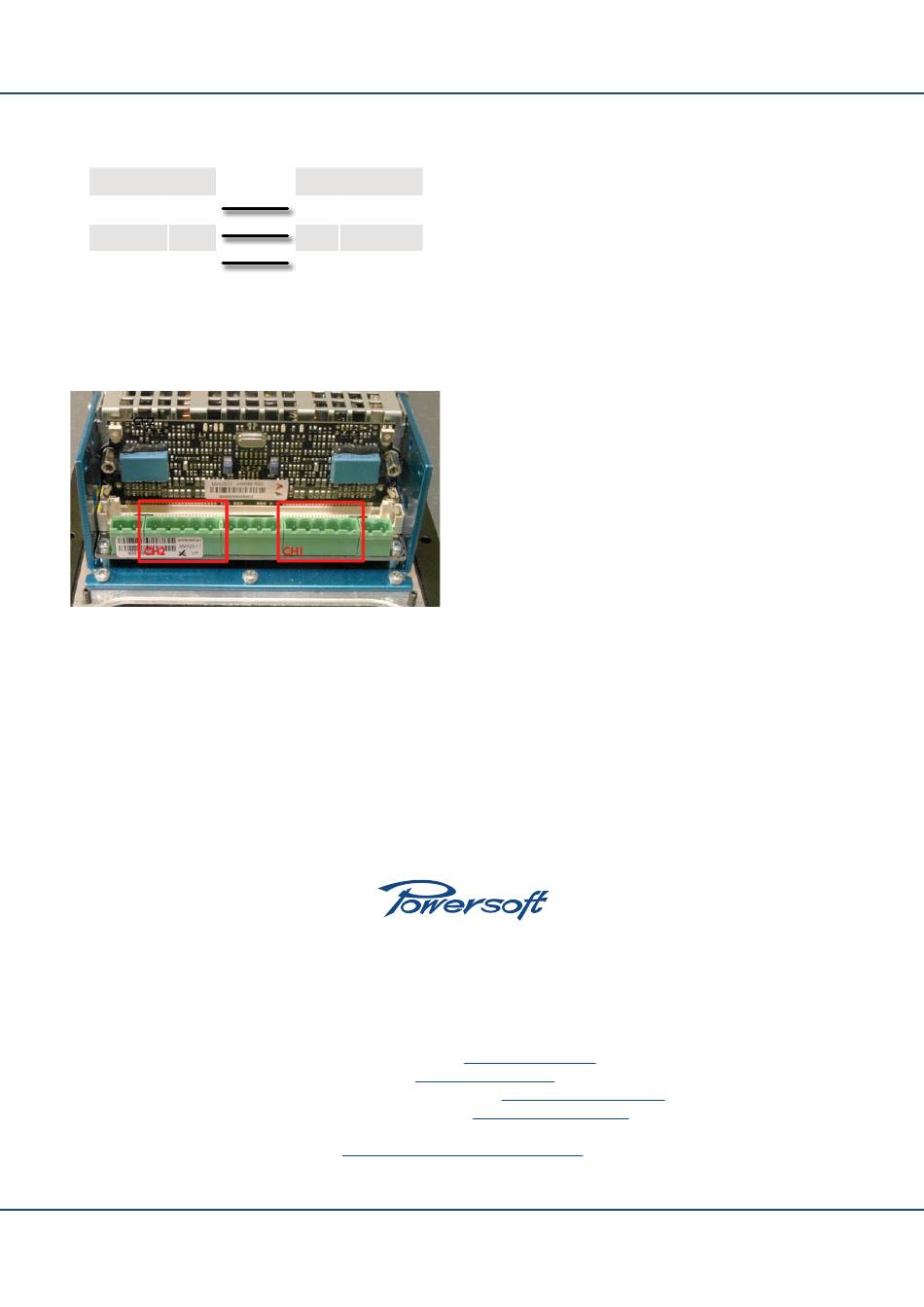

FIGURE 7: Phoenix_input.png
© 2012 - 2013 Powersoft
Pin Phoenix
1 GROUND
2 HOT
3 COLD
