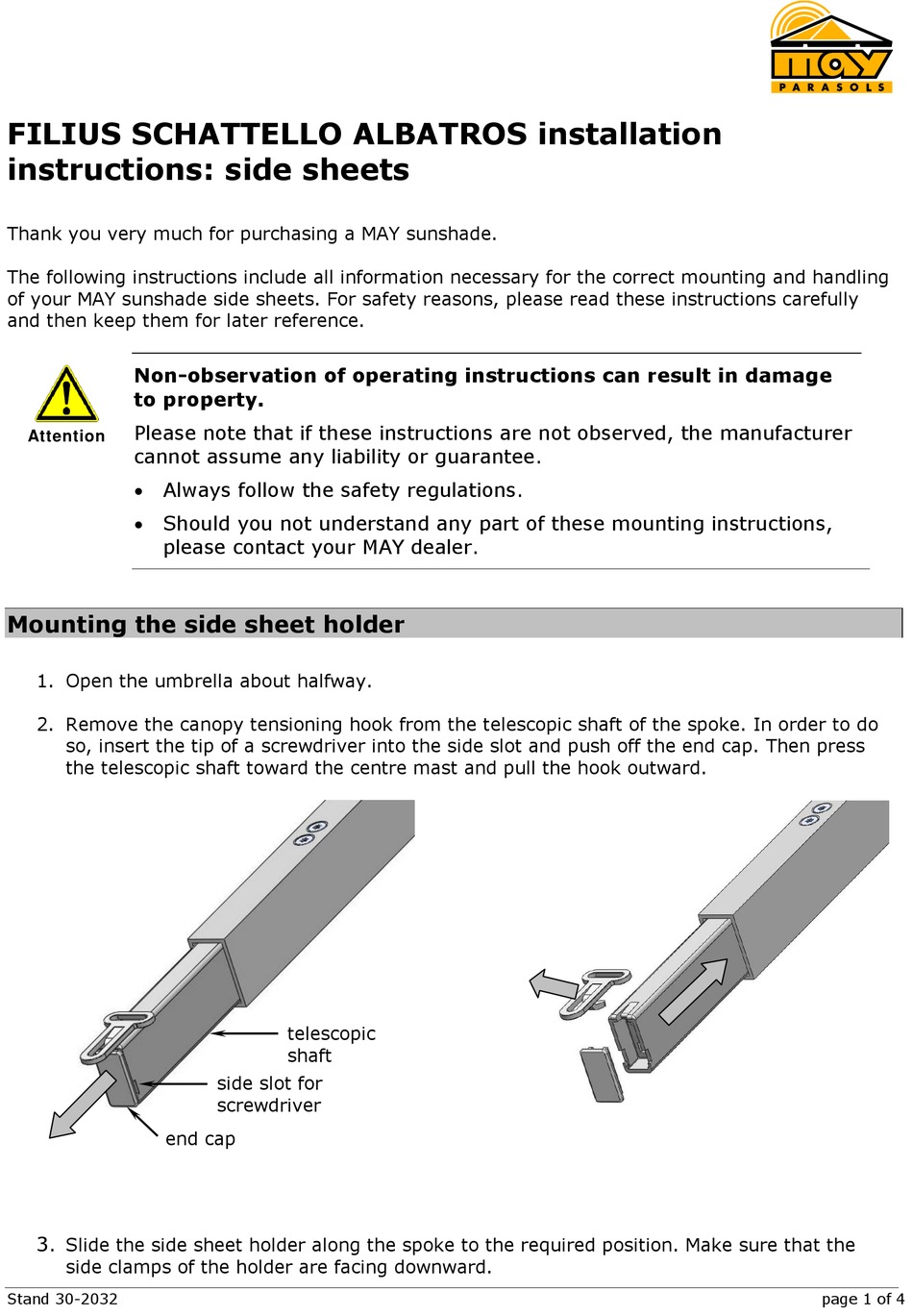

MAY FILIUS SCHATTELLO ALBATROS Installation Instructions

FILIUS SCHATTELLO ALBATROS installation
instructions: side sheets
Thank you very much for purchasing a MAY sunshade.
The following instructions include all information necessary for the correct mounting and handling
of your MAY sunshade side sheets. For safety reasons, please read these instructions carefully
and then keep them for later reference.
Non-observation of operating instructions can result in damage
to property.
Please note that if these instructions are not observed, the manufacturer
Attention
cannot assume any liability or guarantee.
 Always follow the safety regulations.
 Should you not understand any part of these mounting instructions,
please contact your MAY dealer.
Mounting the side sheet holder
1. Open the umbrella about halfway.
2. Remove the canopy tensioning hook from the telescopic shaft of the spoke. In order to do
so, insert the tip of a screwdriver into the side slot and push off the end cap. Then press
the telescopic shaft toward the centre mast and pull the hook outward.
end cap
3.
Slide the side sheet holder along the spoke to the required position. Make sure that the
side clamps of the holder are facing downward.
Stand 30-2032
telescopic
shaft
side slot for
screwdriver
page 1 of 4
