MAY DMZ110 Mounting Instructions

Cross pedestal, for type mezzo, dacapo and filius

Download this manual

Mounting instructions DMZ110

Cross pedestal, for type MEZZO, DACAPO and FILIUS

The following instructions include all information necessary for the assembly and operation of this

cross pedestal. To avoid any misunderstanding we advise you to read these instructions carefully and

then keep them for later reference.

Non- observation of mounting instructions can result in personal injuries

or damage to property.

Please note that if these instructions are not observed, the manufacturer cannot

Caution

assume any liability or guarantee.

Always follow the safety regulations.

Should you not understand any part of these mounting instructions, please

contact your MAY dealer.

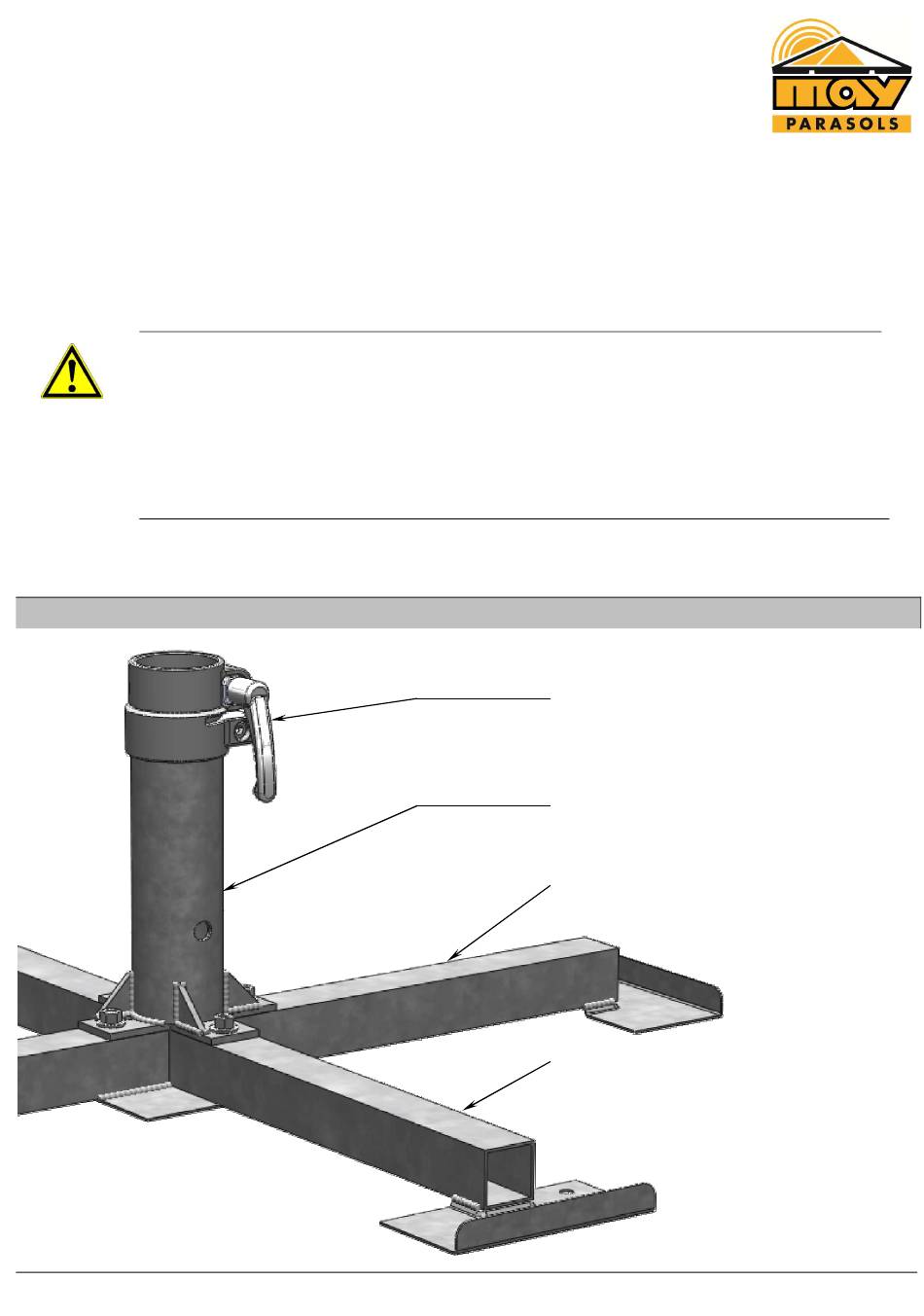

Diagram showing mounting materials

Stand 40-4446

base clamp

locking tube

bottom square tube

top square tube

English

page 1 of 4

Need help?

Do you have a question about the DMZ110 and is the answer not in the manual?

Page 1 Mounting instructions DMZ110 Cross pedestal, for type MEZZO, DACAPO and FILIUS The following instructions include all information necessary for the assembly and operation of this cross pedestal. To avoid any misunderstanding we advise you to read these instructions carefully and then keep them for later reference.
Page 2 3. If you have difficulties in inserting the bolts, bend down the ends of the bottom square tube as shown below. 4. The corners of the square bore may have got slightly plated during the galvanizing process. In this case, use a hammer to drive in the carriage bolts until the corners are clear and the bolt head is flush in the bottom plate.
Page 3 5. Place the locking tube onto the four carriage bolts. 6. Slip the washers, then the tooth lock washers on the carriage bolts. Finally, screw on the nuts with a torque of 25 Nm. tooth lock washer washer Stand 40-4446 English page 3 of 4...
Page 4 4 slabs A falling parasol can cause serious or even fatal injury. If the weight of the concrete slabs in the cross pedestal is not dimensioned to match the size of the parasol, it may fall and cause injuries. Danger ·...
