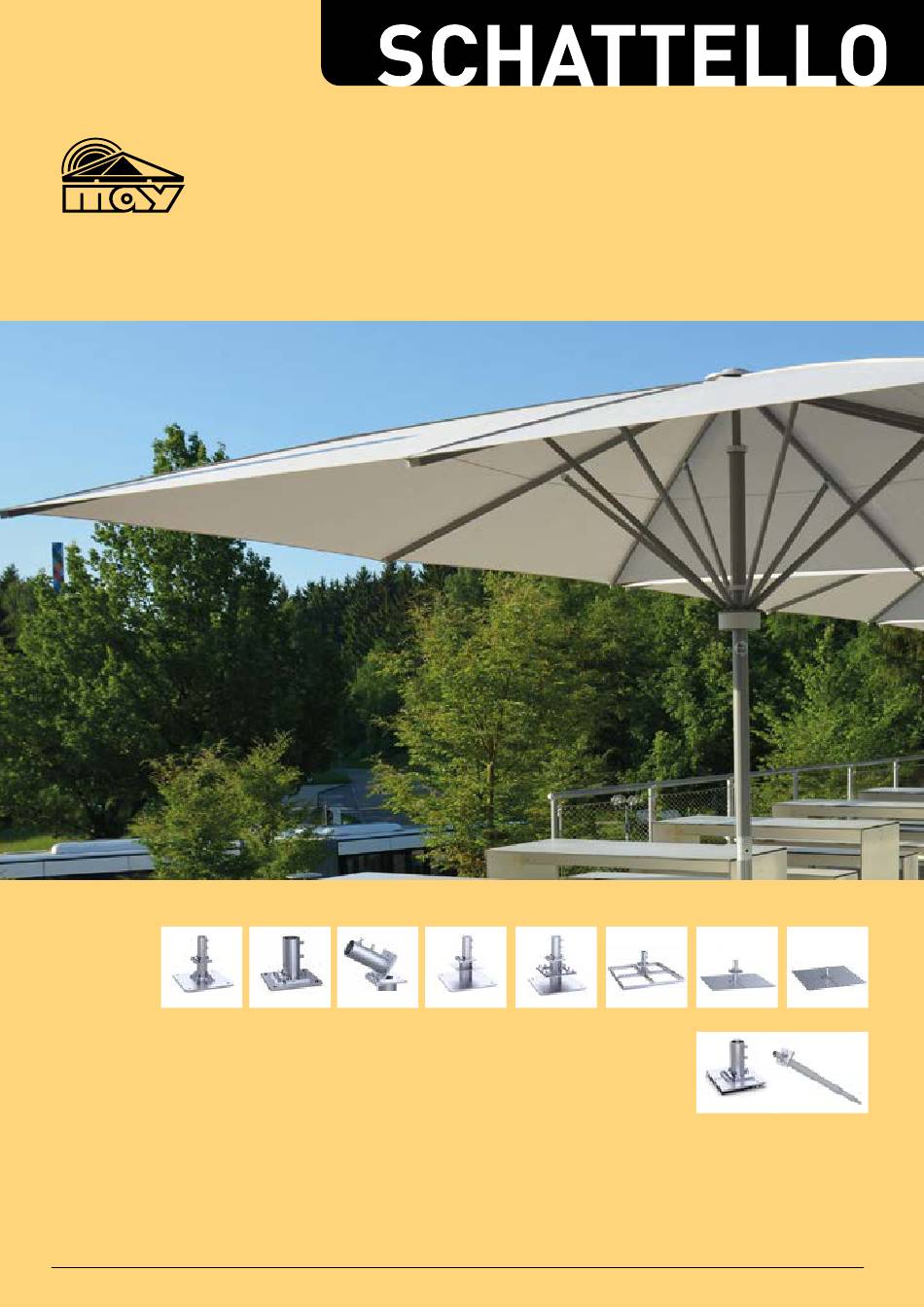

Installation instructions type SCHATTELLO
Suitable for installation options with placement hinge
SZ127
Thank you very much for purchasing a MAY parasol.
The following instructions include all information necessary for the correct assembly, operation and
maintenance of your MAY parasol. To guarantee absolute safety when handling your parasol, please read
these instructions carefully and then keep them for later reference.
Stand 42-1014
SZ131
SZ150
Deutsch / English / Français
SZ186
SZ194
SZ210
SZ241
SZ243
SZ349
SZ350
page 1 of 22
SZ273
SZ275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCHATTELLO SZ150 and is the answer not in the manual?

Questions and answers

Related Manuals for MAY SCHATTELLO SZ150

Summary of Contents for MAY SCHATTELLO SZ150

  • Page 1 Thank you very much for purchasing a MAY parasol. The following instructions include all information necessary for the correct assembly, operation and maintenance of your MAY parasol. To guarantee absolute safety when handling your parasol, please read these instructions carefully and then keep them for later reference.

  • Page 2: Table Of Contents

    Content page 03 Assembly: Preparing the anchor tube page 05 Assembly: Unpacking the parasol page 08 Assembly: Erecting the parasol page 10 Operation: Opening the parasol page 12 Assembly: Aligning the parasol page 13 Assembly: Theft and anti-twisting lock page 14 General information page 15 Operation: Closing the parasol...

  • Page 3: Assembly: Preparing The Anchor Tube

    • Always follow the safety regulations. • Should you not understand any part of these operating instructions, please contact your MAY dealer. Wind can damage your parasol. No guarantee possible. • Always completely open or close the parasol. Never leave it merely half-opened, as it is then not fully stable.
  • Page 4 2. Loosen the M16 screws of the anchor foot plate. M16 socket head screw, 3x 3. Tilt the upper anchor foot until it is in a horizontal position. 4. Loosen the two M10 socket head screws of the upper anchor foot until there is sufficient clearance inside the anchor foot for the centre pole to be inserted horizontally.

  • Page 5: Assembly: Unpacking The Parasol

    2. Remove the accessory package (crank, MAY protective gloves) and the printout of the operating manual attached to the centre pole. 3. Remove the top end cap. This is not required but helpful as it avoids the development of a vacuum within the cardboard sleeve during pulling out the parasol.
  • Page 6 7. Put the parasol into the MAY setup aid (if purchased, art. no. 352040) or onto a chair. Laying down the parasol may damage the canopy.

  • Page 7: Assembly: Erecting The Parasol

    M10 socket head screw, 2x Assembly: Erecting the parasol 1. Remove the foam package. If a knife is used to remove the packaging, the protective sleeve and the canopy fabric may get damaged. Caution • Do not use a knife or any other sharp instrument to remove the packaging.
  • Page 8 Canopy may get dirty or damaged. While erecting the parasol, always make sure the canopy is firmly tightened around the centre pole and secured with the lashing strap. Otherwise the fabric may touch the ground and may Caution get dirty or damaged.
  • Page 9 5. Errect the parasol. A falling parasol can cause serious or even fatal injury. If too few people attempt to erect the parasol, it may become too heavy and uncontrollable, thus causing a serious accident. Danger • You will need at least 2 people to erect the parasol, possibly even 3 or 4.

  • Page 10: Operation: Opening The Parasol

    Operation: Opening the parasol 1. Remove the yellow strap from the canopy. 2. Plug the hand crank (art. no. 207525) into the gearbox bore. During first time of opening you may have to push the spokes outward. If the hand crank is not fully inserted, it will wear and not release the gear brake.

  • Page 11: Assembly: Aligning The Parasol

    A falling parasol can cause serious or even fatal injury. If the parasol is not firmly anchored in the anchor foot, it may be lifted by the wind. Danger • Make sure all screws of the anchor foot are tightened firmly.
  • Page 12 2. Open the parasol (cf.: “Opening the parasol“). The wind can lift the parasol out of the upper anchor tube. • When the M10 screws are loosened, do not open the parasol unless the wind is absolutely Warning calm. 3. Turn the erected parasol within the anchor tube until the required position has been reached. Aligned parallel to the wall of the house is visually appealing.

  • Page 13: Assembly: Theft And Anti-Twisting Lock

    Assembly: Theft and anti-twisting lock Drilling holes for theft and anti-twisting lock may ruin the electric motor (if installed). • If the parasol is equipped with an electric motor, do not drill holes to mount the theft and Warning anti-twisting lock.

  • Page 14: General Information

    Extreme environmental impacts may cause personal injury and material damage. If a parasol is exposed to excessive strain it may get damaged or even ruined. The spokes, the canopy or the centre pole may get damaged. Also, surrounding objects may be affected.

  • Page 15: Operation: Closing The Parasol

    5. Check with your insurance if there is an option to cover storm damage for your SCHATTELLO. Storm damage: If a parasol is not professionally closed and secured (as instructed in this instruction manual) it may damage the parasol. Operation: Closing the parasol 1.
  • Page 16 3. Secure the parasol with the strap provided, use a freestanding ladder, if available. Wind can do damage to an unsecured parasol and may lead to abrasion of the canopy fabric. No guarantee possible! Caution • In case of a round parasol 1 strap is sufficient, positioned above the spoke end.
  • Page 17 4. Pull the protective sleeve provided over the parasol. Wind can do damage to an unsecured parasol and may lead to abrasion of the canopy fabric. No guarantee possible! Even if the parasol is closed and secured by strap there are still parts of the canopy that cannot Caution be secured by the strap and may therefore move in the wind.

  • Page 18: Assembly: Storing The Parasol

    Storing the parasol If possible, leave the parasol outside throughout the whole year. Unprofessional storage may rather lead to damages than leaving the parasol outside. There are several reasons for winter storage, e.g. if there is no vandalism protection given or if the city administration requires parasol removal.
  • Page 19 3. Store the parasol away from mice. Mice like to gnaw on textiles. This causes material damage. If the parasol is not protected from mice, they may damage the canopy. Please always check Caution each storage to make sure mice will not get in.

  • Page 20: Maintenance And Cleaning

    • Follow our cleaning instructions for cleaning your parasol. Caution 3. The MAY company will be pleased to overhaul your parasol and clean the canopy fabric for you. However, this is only possible off-season, i.e. from October to December. 4. Please contact your local retailer to clarify the transport to the MAY company.

  • Page 21: Assembly: Tools And Aids

    This chapter helps the technician to get optimally prepared. Use the following checklist to guarantee a smooth and professional assembly. All items required are listed below. Depending on individual circumstances it may be helpful to have your regular tools and aids available as well.

  • Page 22: Delivery And Acceptance Certificate

    The customer has been instructed properly according to the operating manual of the parasol. The customer received following documents: Installation instructions Mounting instructions Other instructions MAY-dealer, name in block letters Signature Date/place Customer, name in block letters Signature Date/place Deutsch / English / Français...
