Design and function
Main menu
5.4.3.1

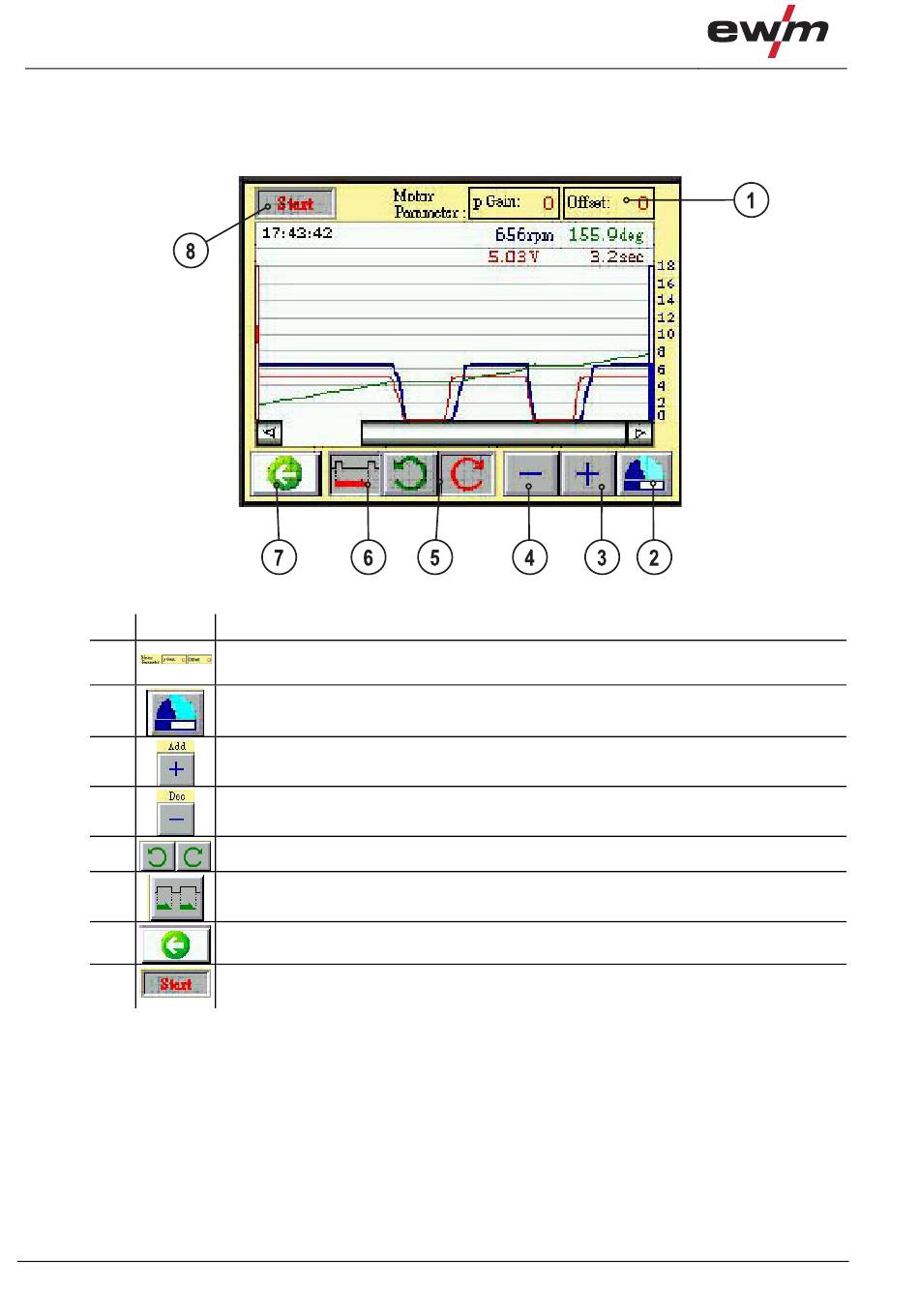

Mini Oszilloskop

The mini oscilloscope can also display the RPM, motor voltage and turn table angle parameters. The
values can be recorded for a maximum period of six minutes. This display is used to show the motor
characteristics with different ultimate loads.
Item
Symbol Description
1
2
3
4
5
6
7
8
28
0
Input field, motor parameters
To adjust the acceleration and deceleration parameters
Button, Manual welding start
Button, Increase RPM
Button, Decrease RPM
Button, Direction of rotation
Button, Continue mode
Button, Back
Button, Start/Stop
To start/stop recording the parameters
Figure 5-16
099-010268-EW501
28.03.2011
