Manual Control - EWM CB-007-1 Operating Instructions Manual

Design and function
Main menu
5.4.2

Manual control

1
2
3
Item Symbol Description
1
2
3
4
5
6
7
8
9
10
11
24
4
5
6
16
0
Button, Reset
Set the current turn table position as start position (0).
Button, H/L
Visual display of the speed and preselection of the maximum speed.
Button, Continue mode
Input field, Degree
• Upper section Displays the current position
• Lower section To enter the desired position
To make an entry, a separate input field will open automatically.
Input field, RPM
• Upper section Displays the current RPM
• Lower section To enter the desired RPM
To make an entry, a separate input field will open automatically.
Button, Direction of rotation
Button, Go to
The turn table moves to the position set in the "Degree" input field.
Button, Torch lift
up/down
Not used
Button for an optional valve
Button, Lock
Lock/release manual welding
Button, Weld
Start welding
7
8
9
15 14

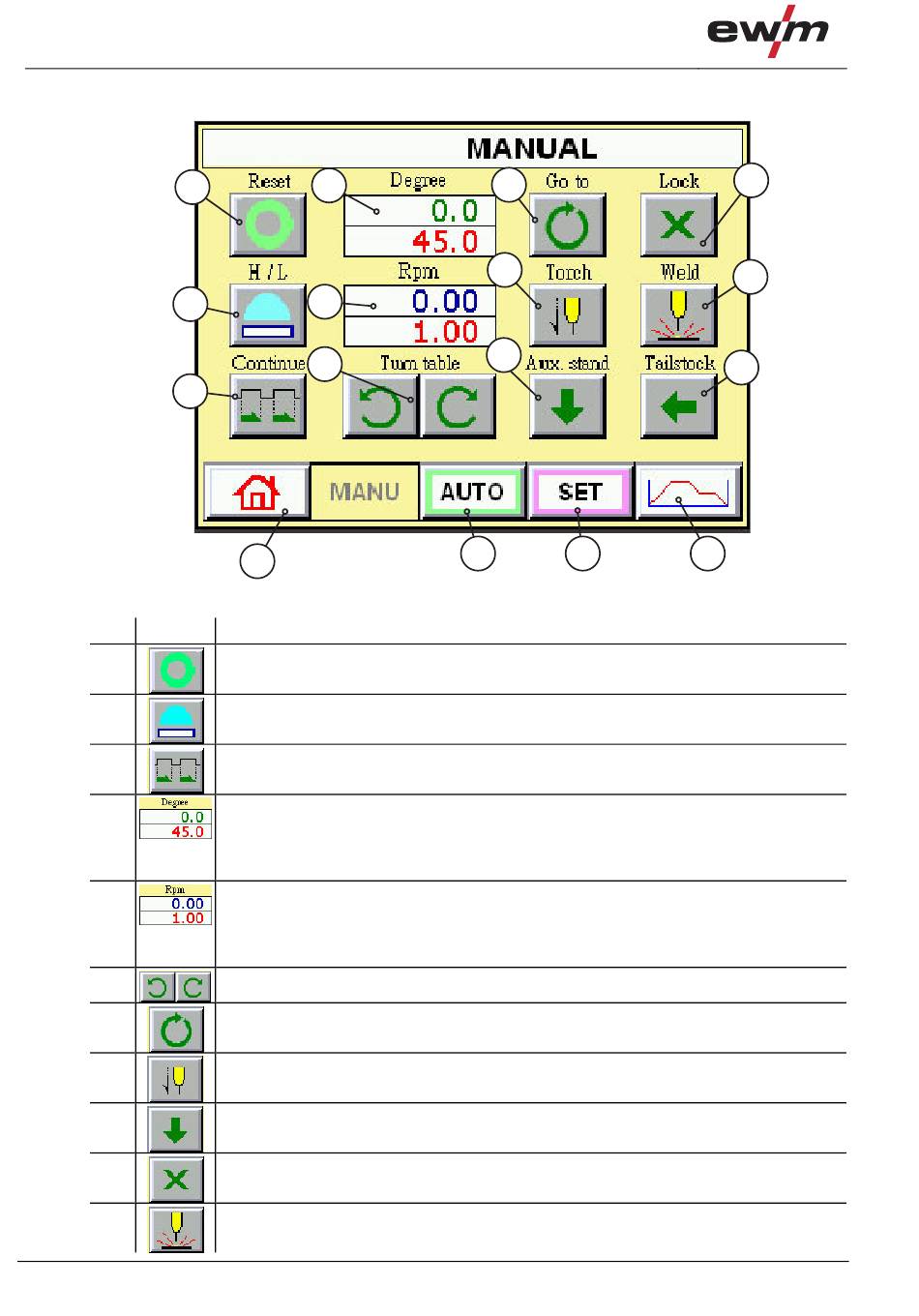

Figure 5-14
10
11
12
13
