- Page 1 K-SERIES TV LIFT PREMIUM User Manual www.rtv.sabaj.pl...
- Page 2 Mounting bracket 1 pc Chain brackets 1 set Cable chain 1 pc Control box + RF remote 1 set Screws 1 set 4xM8 + Nuts 1 set 4xM6 Manual 1 pc Allen Key “4” 1 pc. M6/M8 Wrench 1 pc. www.rtv.sabaj.pl...
- Page 3 1. The supporting beam needs to be assembled as on Pic.1. Use the supplied wrench to tighten the nuts. M6 nut M8 nut Pic.1 2. Use the bracket to connect supporting beam to with the lift, as you see on Pic.2. M6 nut Pic. 2 www.rtv.sabaj.pl...
- Page 4 With the supporting beam the furniture back Wall is not required. You will only need to put a plank with hinges for the top lid as shown on the Picture A. 4. Mount horizontal beam to the column, using attached screws (Pic.4). Pic.4 www.rtv.sabaj.pl...
- Page 5 You can eventually place the control box elsewhere, as long as the cables are long enough and it doesn’t get in the way of the TV nor the Lift. Note: remember that the control box should hang, do not use excessive force to tighten the screws on the control box. Pic.5 Pic.6 www.rtv.sabaj.pl...
- Page 6 7. Using screws provided by your TV manufacturer mount the vertical beams to your screen. The beams should be about 45mm inch below upper edge of the screen. Connect vertical brackets by a stiffener as shown on Pic8. Pic.8 www.rtv.sabaj.pl...
- Page 7 8. Loosen the lower brackets on the vertical beams, as shown on Pic.9 Pic.9 9. Hang the screen with vertical beams mounted on the horizontal beam on your Lift.(Pic 10) Pic.10 www.rtv.sabaj.pl...
- Page 8 10. Move the lower brackets on the vertical beam up and tighten the screws (Pic.11) 11. Connect lower cable bracket to the cable and then to the beam stiffener. You can lead all of the cables from your TV through the cable chain. Lower cablebracket Pic.1 www.rtv.sabaj.pl...
- Page 9 12. Now go to the Control box setup. www.rtv.sabaj.pl...
- Page 10 - Drive the lift to the desired UP position with UP/DOWN buttons - Press & hold the setup button for at least 3 seconds. You will hear a short “beep” - the green VP led should now be off www.rtv.sabaj.pl...
- Page 11 VP Down VP acknowledged Set up the Up VP position with UP/DOWN buttons Set UP VP „BEEP” Press&hold Setup to leave the setup mode. Max UP Your lift range is now set. Adjusted movement DOWN VP www.rtv.sabaj.pl...
- Page 12 “2” Blinking – power cut out when hiding the active screen “3” Blinking - wiring loom not connected to the control box “4” Blinking - lower limit switch activated “5” Blinking – upper limit switch activated Pressing any button will delete the display message. www.rtv.sabaj.pl...

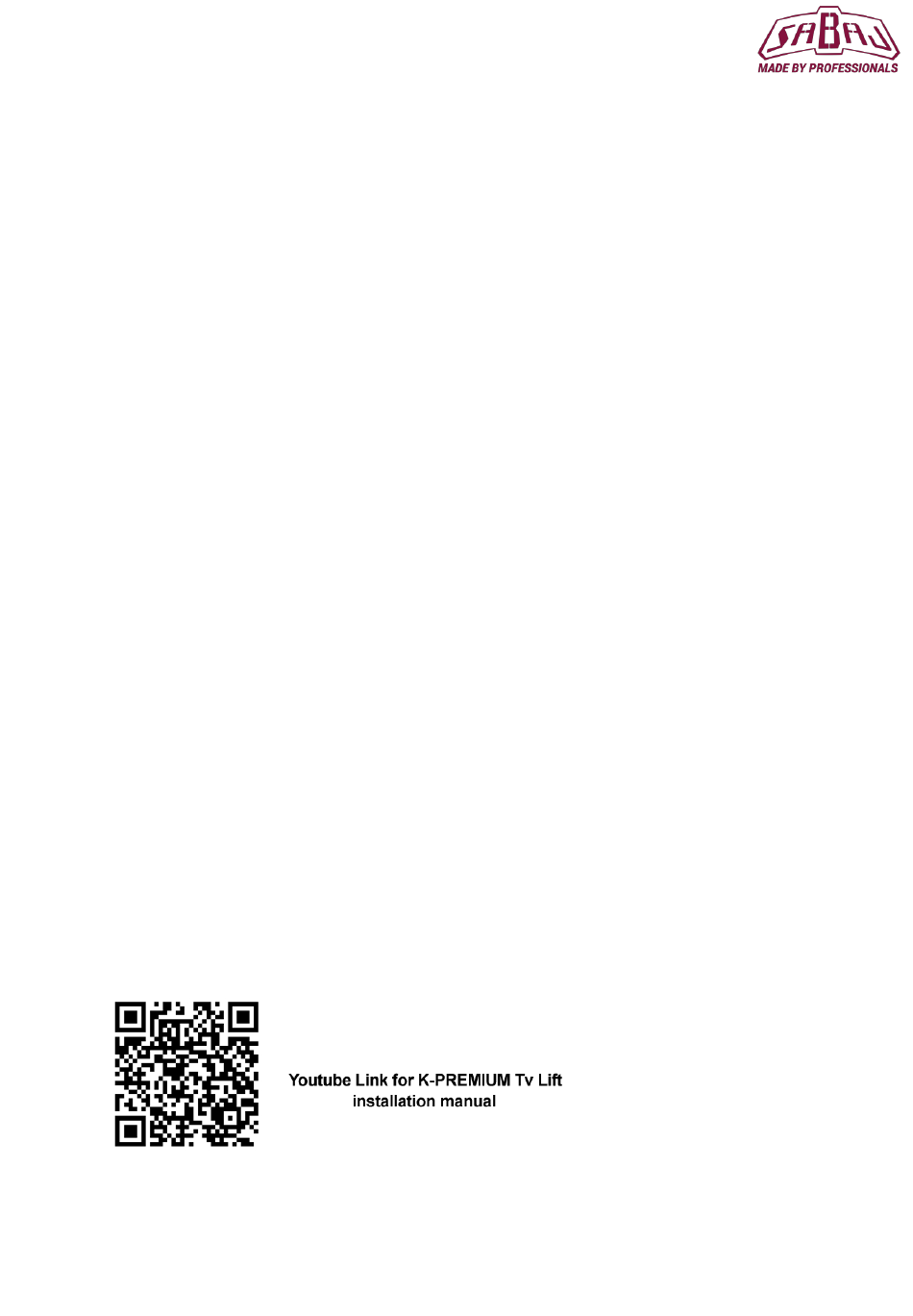

- Page 13 www.rtv.sabaj.pl...
