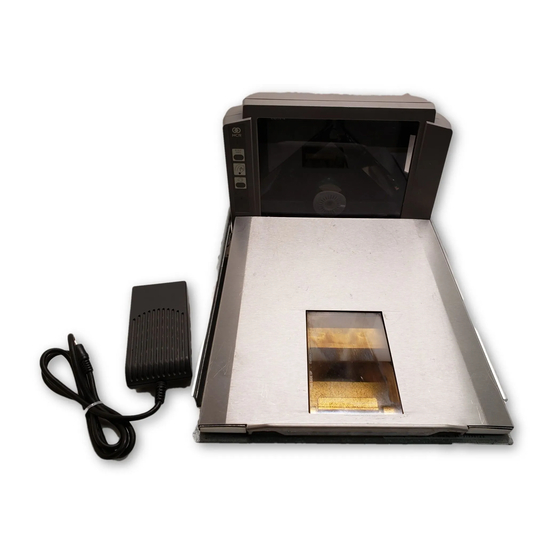

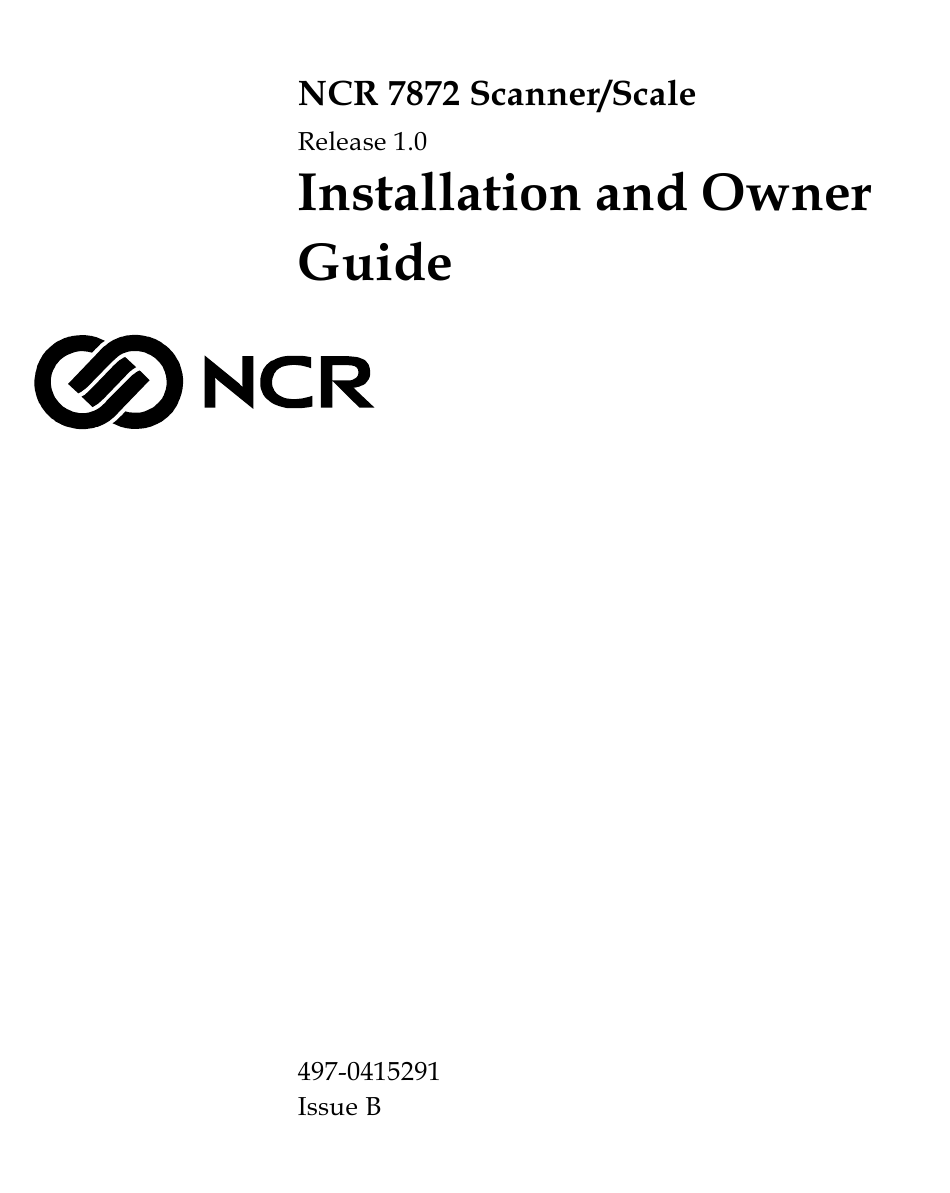

- Page 3 Preface Audience References • •...
- Page 4 Table of Contents...
-
Page 6: Revision Record
Revision Record Issue Date Remarks... -
Page 7: Radio Frequency Interference Statements
Radio Frequency Interference Statements Federal Communications Commission (FCC) Note: Information to User: Caution: Canadian Department of Communications... - Page 8 International Radio Frequency Interference Statement Warning: Voluntary Control Council For Interference (VCCI)
-
Page 9: Identification Labels
Identification Labels Tag Read PORT 2 PORT 1 One or more of the U.S. Patents listed below apply: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: Patents Pending (1) This device may not cause harmful interference, and (2) this device must accept any interference 5,229,588;... - Page 10 viii Before Connecting This Device CE Mark Applicability Scale Regulatory...
-
Page 11: Declaration Of Conformity
Declaration of Conformity EU Directive Harmonized Standard(s) - Page 12 Scale Identification Label NCR CORPORATION Max 13.995 Kg Min 0.1 Kg Model e = d = 0.005 Kg 3000 Approval Lim 19.990 Kg +10° C / +40° C Serial No NCR CORPORATION Max 9.995 Kg Min 0.1 Kg Model e = d = 0.005 Kg...
-
Page 13: Safety Extra Low Voltage
Safety Extra Low Voltage Caution: Caution:... -
Page 14: Laser Safety Label
Laser Safety Laser Safety Label Class IIa Laser Product. Avoid Long-term Viewing of Direct Laser Light. Appareil à Laser de classe IIa Eviter Toute Exposition Prolongèe de la vue à la lumiè re laser directe. Class IIa Producto Laser. Tratè De no ver directamente èl Rayo Laser por mucho tiempò. -
Page 15: Laser Power
xiii 7872 xxxx Laser Module Label Location This laser module does not comply with 21 CFR1040. USE ONLY AS A COMPONENT. 17706 Laser Power • • •... - Page 16 7872-All Models Maximum Radiant Power 0.96 Milliwatts Accessible Emission Limit (CDRH Calculation) 1.50 Milliwatts Accessible Emission Limit (EN60825-1 / IEC 825-1 Calculation) 0.99 Milliwatts Warning:...
-
Page 17: Chapter 1: Installation
Chapter 1: Installation Preparation 17770 Connect Install 1-13 Calibrate 1-16 Verify 1-24 18265... - Page 18 Chapter 1: Installation Step 1 Verify Checkstand Preparation Checkstand Cutout: NCR 7872 - 1000/2000 17951 Scanner Unit Actual Dimensions Cutout Dimensions...
- Page 19 2.5 cm (1.0 in.) side supports are optional instead of shelf Standard Size NCR 7870-3000 & PSC 381 Size Note: The NCR 7872-0300 is supported by side supports or a shelf. Do not support it by the Rear Extender. 17952...
- Page 20 Chapter 1: Installation Checkstand Cutout: NCR 7872 - 5000/5100/6000 2.5 cm (1.0 in.) side supports are optional instead of shelf 18151 Scanner Unit Actual Dimensions Cutout Dimensions...
-
Page 21: Service Clearance
Chapter 1: Installation Drip Pan Installation Note: Service Clearance Mounting surface for keyboard must be removable for servicing A = 20.3 cm (8.0 in.) if checkstand structure is not removable for servicing. 2.5 cm (1.0 in.) if checkstand structure is removable for servicing. B = 35.6 cm (14.0 in.) f checkstand structure is not removable for servicing. -
Page 22: Ventilation Requirements
Chapter 1: Installation 13.3 cm (5 ¼ in.) Item Diverter 18085 Ventilation Requirements... -
Page 23: Electrical Wiring To The Checkstand
Circuit Breakers Isolated/Insulated Ground Bus NCR circuits should be run in separate metal Conduits. Note: NCR circuits must be dedicated to NCR equipment or other logically connected electronic equipment (modems, DAA, bridges, etc.) - Page 24 Chapter 1: Installation Hole Requirements for Cables Cable Cable Length Minimum Hole Size...
-
Page 25: Step 2 Connect The Cables
Chapter 1: Installation Step 2 Connect the Cables Note:... - Page 26 1-10 Chapter 1: Installation Tag Read PORT 2 PORT 1 17542...
- Page 27 Chapter 1: Installation 1-11 Dual Cable Installations Tag Read PORT 2 PORT 1 Scanner Cable To Host Terminal Scale Cable DISPLAY SCALE DATA DATA IN DISPLAY Scanner/Scale Communications Adapter - Model K107 Communication Adapter Box 17901...
-
Page 28: Power Supply Location
1-12 Chapter 1: Installation RS-232 Peripheral Cables Wire Number 16046 Power Supply Location Note:... - Page 29 Chapter 1: Installation 1-13 Step 3 Install NCR 7872 in Checkstand 17544 Note:...
-
Page 30: Communications Protocol
1-14 Chapter 1: Installation 17545 Note: Communications Protocol... - Page 31 Chapter 1: Installation 1-15...
-
Page 32: Step 4 Calibrate The Scale
1-16 Chapter 1: Installation Step 4 Calibrate the Scale Note: Note: Caution:... -
Page 33: Exercise The Scale
Chapter 1: Installation 1-17 Exercise the Scale Weight Feature Total Weight on Top Plate Access the Calibration Switch 17903... - Page 34 1-18 Chapter 1: Installation Calibrate the Scale Note: Display Add Weight Remove Weight...
-
Page 35: Verify The Calibration
Chapter 1: Installation 1-19 Verify the Calibration Increasing Load Test Step Weight Feature Add Weight Remove Weight Display Result Note:... - Page 36 1-20 Chapter 1: Installation Over-Capacity Test Note: Step Weight Feature Add Weight Remove Weight Display Result Note:...
-
Page 37: Decreasing Load Test
Chapter 1: Installation 1-21 Decreasing Load Test Note: Step Weight Feature Add Weight Remove Weight Display Result Shift Test... - Page 38 1-22 Chapter 1: Installation Note: 17707...
-
Page 39: Secure The Calibration Switch
Chapter 1: Installation 1-23 Secure the Calibration Switch Note:... -
Page 40: Step 5 Check The Scanner Operation
1-24 Chapter 1: Installation Step 5 Check the Scanner Operation Scanner Units Scanner/Scale Units If The Unit Does Not Pass The Power On Wellness Check Verify Bar Code Reading... -
Page 41: Setting The Program Parameters
Chapter 1: Installation 1-25 Programming Setting the Program Parameters Caution:... -
Page 42: Scan Sample Tags
1-26 Chapter 1: Installation Note: Scan Sample Tags UPC-A 7 7 0 6 2 3 7 9 2 0 Code 39... - Page 43 Chapter 1: Installation 1-27 Code 128 1 7 7 0 6 2 3 7 9 2 0 Interleaved 2 of 5 0 1 7 7 0 6 2 3 7 9 2 0...
-
Page 45: Chapter 2: Operation
Chapter 2: Operation Operating the Scanner 17541... - Page 46 Chapter 2: Operation...
-
Page 47: Operating The Scale
Chapter 2: Operation Operating the Scale Note: Note: Status Indicator Scale Zero Button Top Plate 18263... - Page 48 Chapter 2: Operation Cleaning the NCR 7872 Caution: 18264...
-
Page 49: Correcting Scanner Problems
NCR 7872. Verify that the Interface Cable is properly connected. Scanner does Red Flashing Internal failure Remove power from the NCR not read tags Green Off 7872 and then supply power again. If the problem is not corrected, have scanner repaired. -
Page 50: Correcting Scale Problems
Chapter 2: Operation Correcting Scale Problems Problem Possible Cause Corrective Action Any Scale Debris and trash Remove the top plate and thoroughly clean out all debris Error or under Top Plate and trash. Problem Error code Scale drift Verify that nothing is on the scale. Lift the Top Plate and 5---- displays verify that no objects are under it. -
Page 51: Chapter 3 Programming
Chapter 3 Programming Setting the Communication Protocol 1 Short, high-pitched beep OCIA NCR Short 1 Beep OCIA NCR Long 2 Beeps OCIA Non-NCR Dual Cable 3 Beeps IBM 468x/9x Port 4A 4 Beeps... -
Page 52: Good Read Tone
Chapter 3 Programming IBM HHBCR 6 Beeps RS-232 7 Beeps OCIA Single-Cable 8 Beeps OCIA Dual-Cable 11 Beeps Casio 4-Bit Parallel Dual Cable 12 Beeps IBM 1520 (BCR) 13 Beeps TEC 4-Bit Parallel Dual Cable Good Read Tone... -
Page 53: Programming Worksheets
Chapter 3 Programming Programming Worksheets COMMUNICATIONS PROTOCOL Protocol OCIA OCIA RS-232 OCIA NCR Short NCR Long Non NCR Slot Scanner Hand-Held (Datachecker) Dual Cable Bar Code Reader OCIA OCIA NCR Casio IBM 1520 Single Cable Dual Cable Dual Cable Bar Code... - Page 54 Lockout Timer Active Time (Minutes) No Time-out ( Always Active) Note: NCR suggests that you do not set the Active Time parameter to 0. Leaving the laser light on all the time reduces its life expectancy. R0136 BAR CODES - 1...
- Page 55 Chapter 3 Programming BAR CODES - 2 Code 39 Disable Enable Default Minimum Characters Allowed 2 - F Full ASCII Disable Enable Check Digit Present Disable Enable Transmit Check Digit Disable Enable Allow One- or Two-Character Tags Disable Enable 14394 BAR CODES - 3 Interleaved 2 of 5 Disable...
- Page 56 Chapter 3 Programming BAR CODES - 4 Code 128 Disable Enable Minimum Data Characters Allowed UCC 128 Disable Enable B050 LABEL IDENTIFIERS Identifier Type Default Prefix None Unique Prefix 0 - 7 0 - F Default Common Byte 1 Hex Character Hex Character 0 - 7 0 - F...
- Page 57 Chapter 3 Programming RS-232 PARAMETERS - 1 Baud Rate 1200 2400 4800 9600 19200 Note: Parity must be Odd or Even on a Parity scale unit; Odd is used if Even None None is selected. Stop Bits And Character 1 Stop Bit 1 Stop Bit 2 Stop Bits 2 Stop Bits...
- Page 58 Chapter 3 Programming RS-232 PREFIX BYTE Prefix Byte Disable Enable ASCII Code Default 0 - 7 0 - F Hex Character Hex Character (ASCII Code Chart) (ASCII Code Chart) R0035 RS-232 Terminator BYTE Note: A Terminator Byte is required on a Terminator Byte scale unit.
- Page 59 Chapter 3 Programming SCALE PARAMETERS Model Number Scanner/Scale Scanner Only IBM Address Address 6A Address 6B Address 6E 9.995 kg/13.995 kg Toggle Between 9.995 kg and 13.995 kg 11812 MISCELLANEOUS PARAMETERS 5-Second Weight Display Timer Disable Enable IBM Tone Control (Good Read Tone Control) Disable Enable...
-
Page 60: Ascii Code Chart
3-10 Chapter 3 Programming ASCII Code Chart ASCII Code Chart NULL " & < > R0040...
