NCR RealScan 7892 Installation & Owners Manual

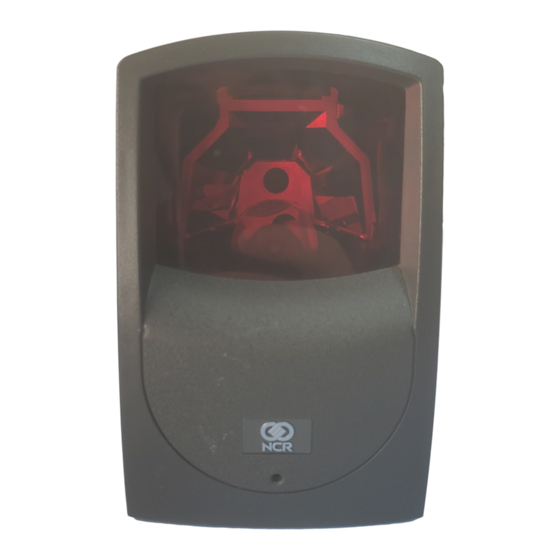

Bi-modal presentation scanner
Hide thumbs Also See for RealScan 7892:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
RealScan 7892 Bi-Modal
Presentation Scanner
Installation/Owner Guide
497-0003071
Release E
April 3, 2003
Information Products
RSD-Atlanta

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RealScan 7892 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NCR RealScan 7892

Summary of Contents for NCR RealScan 7892

  • Page 1 RealScan 7892 Bi-Modal Presentation Scanner Installation/Owner Guide 497-0003071 Release E April 3, 2003 Information Products RSD-Atlanta...
  • Page 2 NCR is a registered trademark of NCR Corporation. NCR RealScan is a trademark of the NCR Corporation It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software, and firmware become available. NCR, therefore, reserves the right to change specifications without prior notice.

  • Page 3: Preface

    Preface Audience This book is written for hardware installers, service personnel, and system integrators. Notice: This document is NCR proprietary information and is not to be disclosed or reproduced without consent. References NCR RealScan 7892 Bi-Modal Presentation Scanner User Guide...

  • Page 4: Table Of Contents

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Table of Contents Preface............................. 3 Audience ..........................3 References .......................... 3 Revision Record ........................3 Table of Contents ........................4 Understanding Your Scanner....................5 Scanner Dimensions ......................5 Scanner Location ....................... 5 Installing Your NCR RealScan 7892-0100................

  • Page 5: Understanding Your Scanner

    Power for the RealScan 7892 is provided through a wall adapter Power Module or directly from the host terminal. Input voltage to the RealScan 7892 must be +12Vdc.

  • Page 6: Installing Your Ncr Realscan 7892-0100

    Cable. If a Power Module is required for this configuration, it connects to the box on the end of the Scanner Cable. Note: The Power Module is not used if the RealScan 7892 receives power from the host terminal. Host Terminal...

  • Page 7: Usb Interface Connection

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide USB Interface Connection Connecting an NCR RealScan 7892 Bi-Modal Presentation Scanner to a USB port on a host terminal requires two cables. One end of the Dongle Adapter Cable connects to the host terminal.

  • Page 8: Dongle Interface Setting

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Dongle Interface Setting J3 in the Interface Box on the end of the Dongle Adapter Cable contains a shunt that must be correctly installed for the host terminal. The cable is shipped from the factory with the shunt on pins 3 and 4.

  • Page 9: Programming The Realscan 7892

    Odd parity 1 stop bit, 7-bit character 3. Save and Reset – saves the program just entered and resets the RealScan 7892. The host terminal software may now be configured to use the communication port assigned by the IO Network driver when the Dongle Adapter Cable was plugged into the USB port.

  • Page 10: Installing Your Realscan 7892-0200 (Wedge Option)

    RealScan 7892-0200 (Wedge Option) The RealScan 7892-0200 provides the wedge option that permits the RealScan 7892 to be connected to the host terminal through a keyboard connector. Scan data is input into the keyboard port. When connected in this configuration the RealScan 7892 cannot receive commands from the host terminal.

  • Page 11: Operating Your Scanner

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Operating Your Scanner The RealScan 7892 is designed for both presentation scanning and pass-by scanning. Pass-by scanning is often used at checkout stands, such as in grocery stores. In the checkout stand environment, normally large quantities of items must be scanned in a short amount time.

  • Page 12: Pick-Up Scanning

    In these circumstances you can pick up the scanner and take it to the merchandise. The RealScan 7892 is designed so that you can easily pick the scanner up and hold it. Being lightweight, you can present the scanner to the merchandise with little effort.

  • Page 13: Label Orientation

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Label Orientation Because your NCR RealScan 7892 produces a dense, omnidirectional scan pattern, labels can be read from many different angles. Scan Pattern Location In order for the scanner to read a label, the center 90% of one scan line must cross the bar code.

  • Page 14: Single Line Scanning

    Single Line Scanning is a feature of the NCR RealScan 7892-0100/0200; it is not available with the 7892-0300. This feature permits you to scan a specific bar code in a group of bar codes. The RealScan 7892-0100/0200 has a two-position switch located on the side of the unit.

  • Page 15: Reduced Space Symbology

    Also, no quiet space is required around the symbols. The RealScan 7892 with RSS can read two types of RSS bar codes, both of which can be stacked: RSS-14, RSS-14 Stacked, RSS Expanded, and RSS Expanded Stacked.

  • Page 16: Correcting Scanner Problems

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Correcting Scanner Problems Problem Status Indicator Tone Possible Cause Corrective Action Scanner does not operate. No power to the unit Check the electrical outlet Laser light off for proper power.

  • Page 17: Programming

    Note: In those cases where the NCR Customer Engineer does not receive documents to the contrary, they will assume that no changes have been made to the RealScan 7892 Factory Default Values and they will program your repaired/replaced RealScan 7892 unit accordingly.

  • Page 18: Identifying Program Defaults

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Identifying Program Defaults Following are the default values that are set when you scan the Default programming tag unless otherwise specified. The scanner beeps to indicate the Default setting. Programming Mode...

  • Page 19: Using The Programming Worksheets

    Scanning the Default tag as the first tag after applying power to the RealScan 7892 sets the parameters to these values. The scanner also indicates via beeps the Default setting.

  • Page 20: Programming Worksheets

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Note: In most instances the factory determined defaults are the correct parameter settings. Normally you only need to change a few of these parameters and do not need to enter all the Programming Worksheets. When programming your scanner, first set all the parameters to default values by scanning the Default tag, then make any necessary changes to the appropriate parameters.

  • Page 21: Good Read Tone

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 1 1 Good Read Tone Tone On/Off Tone Length (Milliseconds) Tone Volume High 19322-A 1 2 Timers Lockout Time (Milliseconds) 1050 1200 1350 1500 Restart Lockout Timer Active Time (Minutes)
  • Page 22 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 1 3 Bar Codes – 1 UPC/EAN Disable Enable Extend UPC-A To EAN-13 Disable Enable Extend UPC-E UPC-A Disable Enable Periodical Codes Disable Enable Periodical Code Extension 2-Digit 5-Digit 2-Digit &...
  • Page 23 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 1 4 Bar Codes – 2 Code 39 Disable Enable Minimum 2 - F Default Characters Allowed Disable Full ASCII Disable Enable Check Digit Present Disable Enable Transmit Check Digit...
  • Page 24 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 1 5 Bar Codes – 3 Interleaved 2 of 5 Disable Enable Bar Code Length Range Specific Check Check Character 0 - 5 0 - 9 Value 1 Minimum Character 1...
  • Page 25 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 1 7 Bar Codes – 4 Code 128 Disable Enable Minimum Data Characters Allowed UCC 128 Disable Enable 19328-A 1 8 Bar Codes – 5 RSS Enable Disable Enable Enable...
  • Page 26 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 1 6 Label Identifiers Identifier Type Unique Unique Default Default None Prefix Suffix Prefix Suffix Common Byte 1 0 - 7 0 - F Default: Hex Character Hex Character 0 - 7...
  • Page 27 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 1 9 Additional Bar Code Options UPC Number System Character Do Not Send Send ISBN Option Note: ISBN option is not available with IBM protocols. Enable ISBN Disable ISBN 19332a 2 0 RS-232 Parameters –...
  • Page 28 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 2 1 RS-232 Parameters – 2 BCC Option Disable Enable Interface Control ACK/NAK XOn/XOff ACK/NAK & XOn/XOff None Check Digit Disable UPC-A Enable UPC-A Disable UPC-A Enable UPC-A Disable EAN-8...
  • Page 29 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 2 3 RS-232 Terminator Byte Terminator Byte Disable Enable Default 0 - 7 0 - F ASCII Code Not Allowed Hex Character Hex Character (ASCII Code Chart) (ASCII Code Chart)

  • Page 30: Parameter Version Number

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 2 5 Single Line Options (7892-0100 / 0200) Single Line Disable Enable Switch Activation Single Double Position Position Activation Activation Line Width Narrow Line Wide Line 19338-A 2 7 Parameter Version Number...
  • Page 31 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide ASCII Code Chart NULL " & < > R0040 497-0003071 Release E 04/03 31 of 38...
  • Page 32 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 32 of 38 04/03 497-0003071 Release E...

  • Page 33: Radio Frequency Interference Statements

    NCR is not responsible for any radio or television interference caused by unauthorized modification of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by NCR.

  • Page 34: Safety Extra Low Voltage

    NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide Safety Extra Low Voltage This device should only be powered by a power supply source complying with SELV and LPS requirements per UL1950 (or EN60950), suitable for the country of installation.

  • Page 35: Laser Safety

    Clase II a Producto Laser. Trate de no ver IEC CLASS 1 directamente el Rayo LASER PRODUCT Laser por mucho tiempo 17781 The NCR RealScan 7892 Bi-Modal Presentation Scanner is a Class 1 Laser Product. 497-0003071 Release E 04/03 35 of 38...

  • Page 36: Laser Power

    Caution: Following is the radiant energy of the laser/LED light as applied to each of the specified requirements. The NCR RealScan 7892 Bi-Modal Presentation Scanner is not intended for long-term viewing of the direct laser light. However, the unit is safe if used as intended.

  • Page 37: Declaration Of Conformity

    We, NCR Corporation, Retail Solutions Division Atlanta, 2651 Satellite Boulevard, Duluth, Georgia, 30096-5810, USA, declare under our sole responsibility that the product Class RealScan 7892 Bar Code Bi-Modal Presentation Scanner to which this declaration relates is in conformity with the following standard or other normative document (s) following the provisions of the noted Directives.
  • Page 38 NCR RealScan 7892 Bi-Modal Presentation Scanner Installation and Owner Guide 38 of 38 04/03 497-0003071 Release E...
