Operating Unisab III control

1.1.2 Display

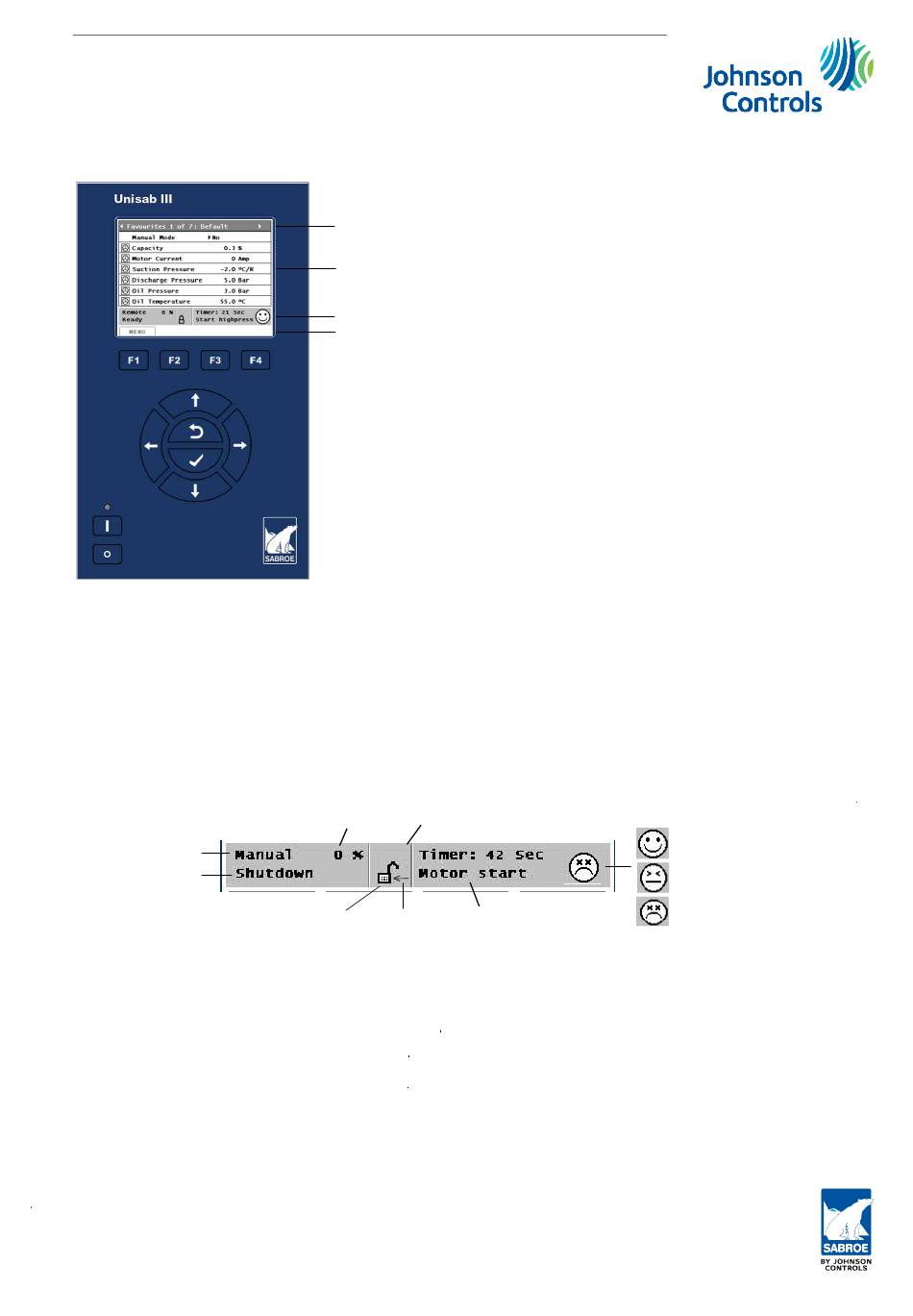

Fig. 3: Unisab III front
Display
The display has a background illumination with screen saver function. It consists of a top bar
with navigation information, a content area with 7-11 lines of information, an info bar with
mode and status information and an F-key area with information about the active function
keys. Pressure levels, temperatures, set points as well as alarm and shutdown limits can be
read in the display. The contrast is factory set but may be adjusted, if required. See subsec-
tion Contrast (display) in the Engineering manual.
Compressor mode
Compressor status
Fig. 4: Info bar in Unisab III display

1.1.3 Front panel

The Unisab III front panel is divided into three sections:
The control section - to control the compressor.
The menu section - to select menu pictures and change values.
The F-key section - to operate function keys.
Operating manual - Unisab III
005650-en 2013.10
Top bar
Content area
Info bar
F-key area
Actual
Compressor no.
capacity
(if remote connected)
1
Information about
Password Remote
active timer
security connection
7/48
"Smiley" status:
OK
Alarm
Shutdown
