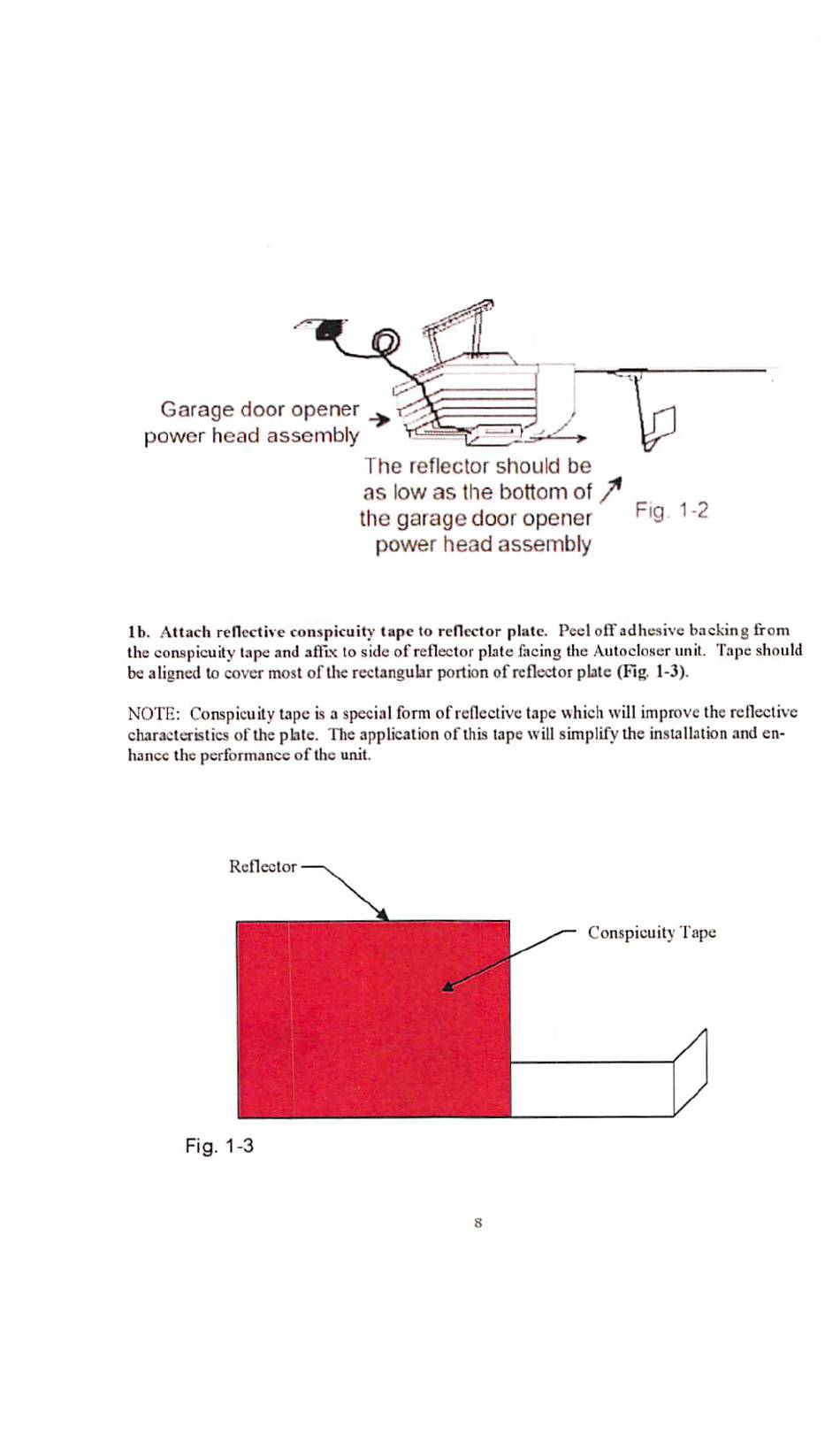

Garage door opener
power head assembiy
The reflector should be
as low as the bottom of ^
the garage door opener ^'9
power head assembly
1-2
lb. Attach reflectiveconspicuity tape to reflector plate. Peel off adhesive backing from
the conspicuity tape and affix to side of reflector plate facingthe Autocloserunit. Topeshould
be aligned to cover most of the rectangular portionof reflectorplate (Fig. 1-3).
NOTE: Conspicuity tape is a special form of reflective tapewhich willimprove thereflective
characteristics of the plate. The applicationof this tape will simplifythe instalbtion and en
hance the performance of the unit.
Reflector
Conspicuity Tape
Fig. 1-3
