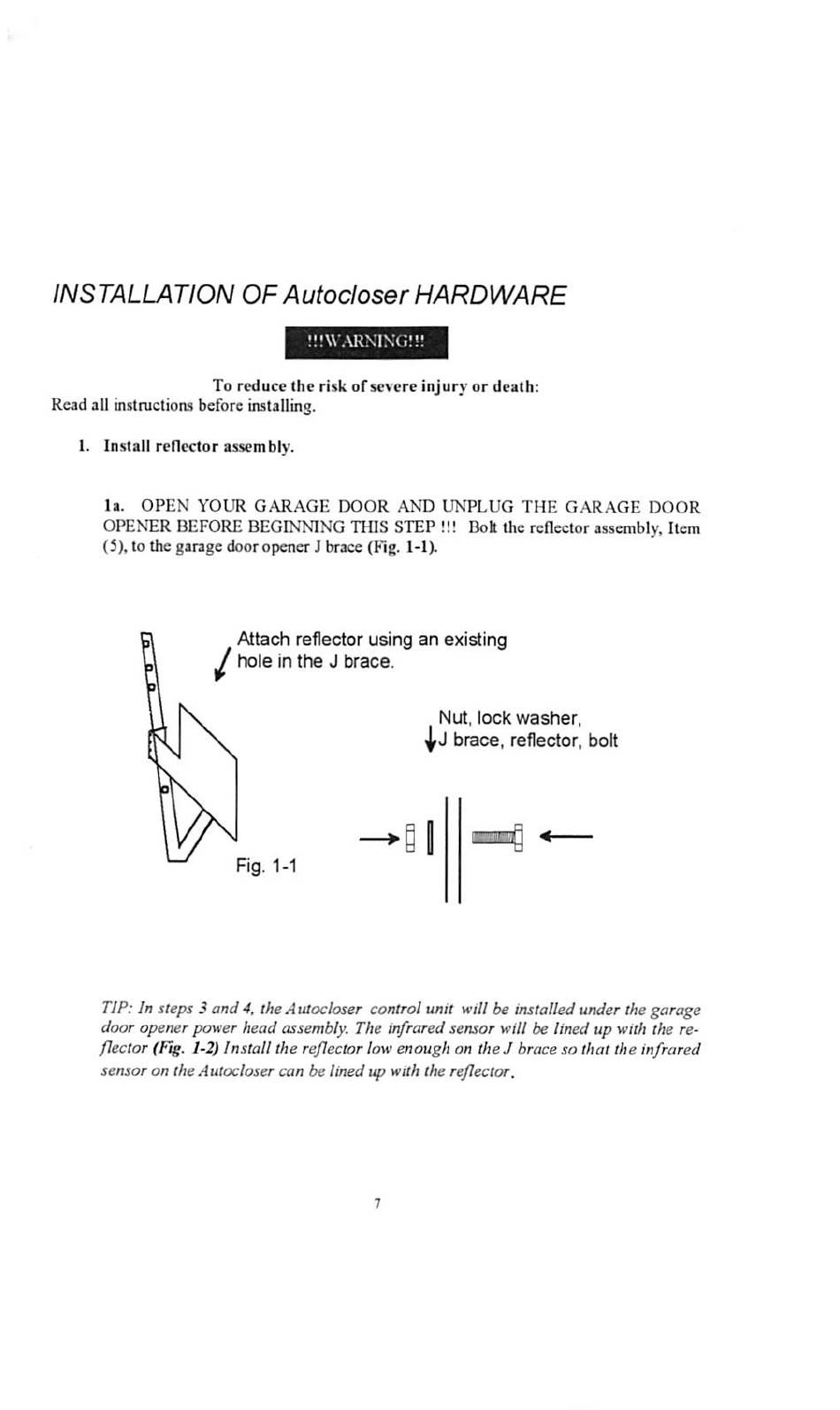

Xceltronix autoCLOSER Series Installation Manual And User's Manual page 7

INSTALLATION OF Autodoser HARDWARE
To reduce the risk of severe injury or death:
Read all instructions before installing.
I. Install reflector assembly.
la. OPEN YOUR GARAGE DOOR AND UNPLUG THE GARAGE DOOR
OPENER BEFORE BEGINNING THIS STEP !!! BoH the reflector assembly. Item
(5), to the garage door opener Jbrace (Fig. 1-1).
Attach reflector using an existing
^ hole in the Jbrace.
Fig. 1-1
Nut, lock washer,
brace, reflector, bolt
TIP:In steps 3 and 4. theAulocloser controlunit willbe installedunder thegarage
door openerpowerhead assembly. The infraredsensor will be lined up with the re
flector (Fig. 1-2)Install the re/lectorlowenoughon theJ braceso that the infrared
sensor on the Aulocloser can be lined up with the reflectw.
