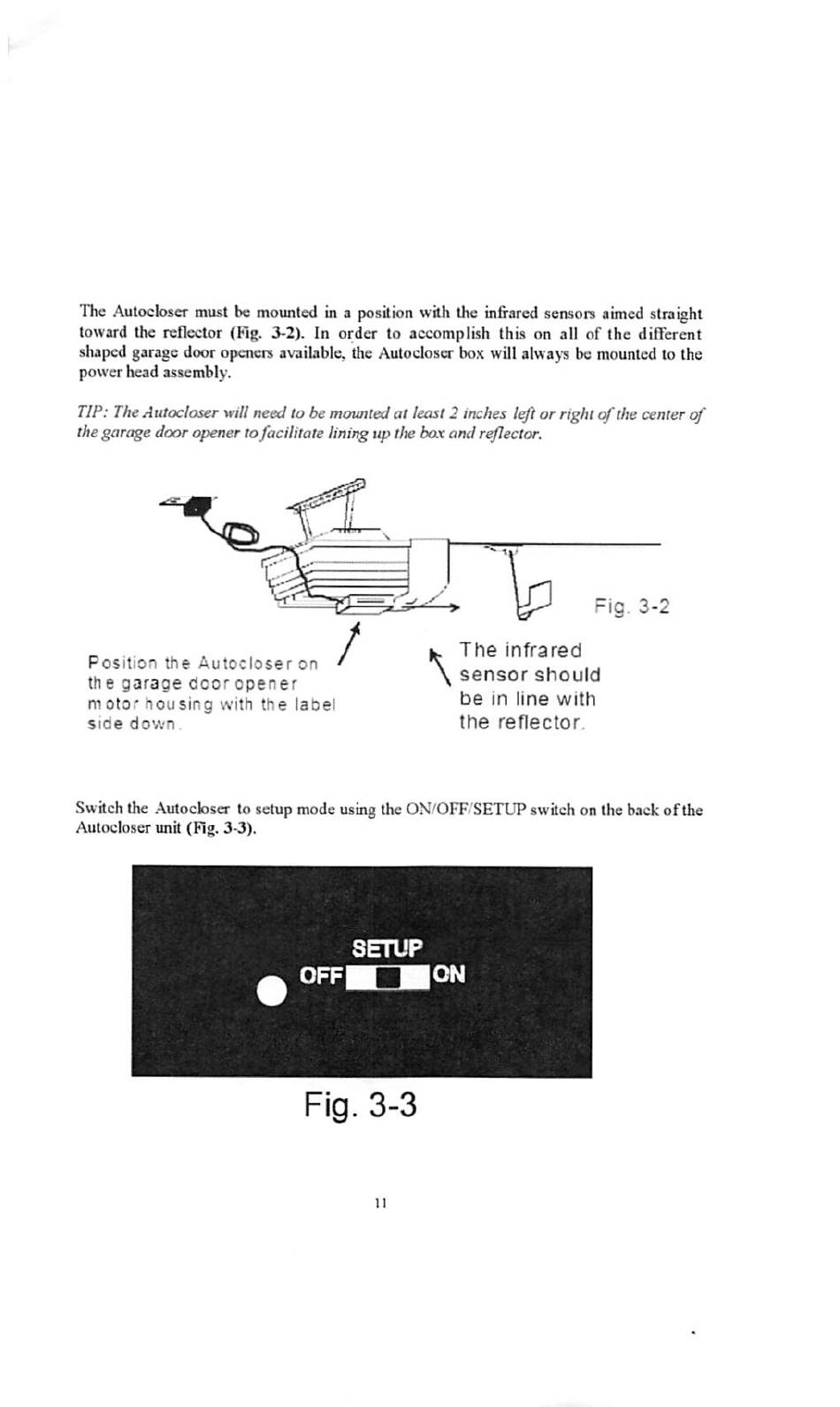

Xceltronix autoCLOSER Series Installation Manual And User's Manual page 11

The Autocioscr must be mounted in a position with the infrared sensors aimed straight
toward the reflector (Fig. 3-2). In order to accomplish this on all of the different
shaped garage door openers available, the Autocioscr box will8lwa}'s be mounted to the
power head assembly.
TIP: TheAulocloser will needlo bemounted at least2 inches le^ or rightof the center
thegarage door opener tofacilitate lining up tlte boxand reflector.
Position the Autocloser on
the garage deer opener
motor housing with the label
side down
Fig. 3-2
The infrared
sensor should
be in line with
the reflector
Switchthe .Autocloser to setup mode using the OWOFF/SETLIP switch on the back of the
Autocloser unk (Fig. 3-3).
Fig. 3-3
