10.
II.

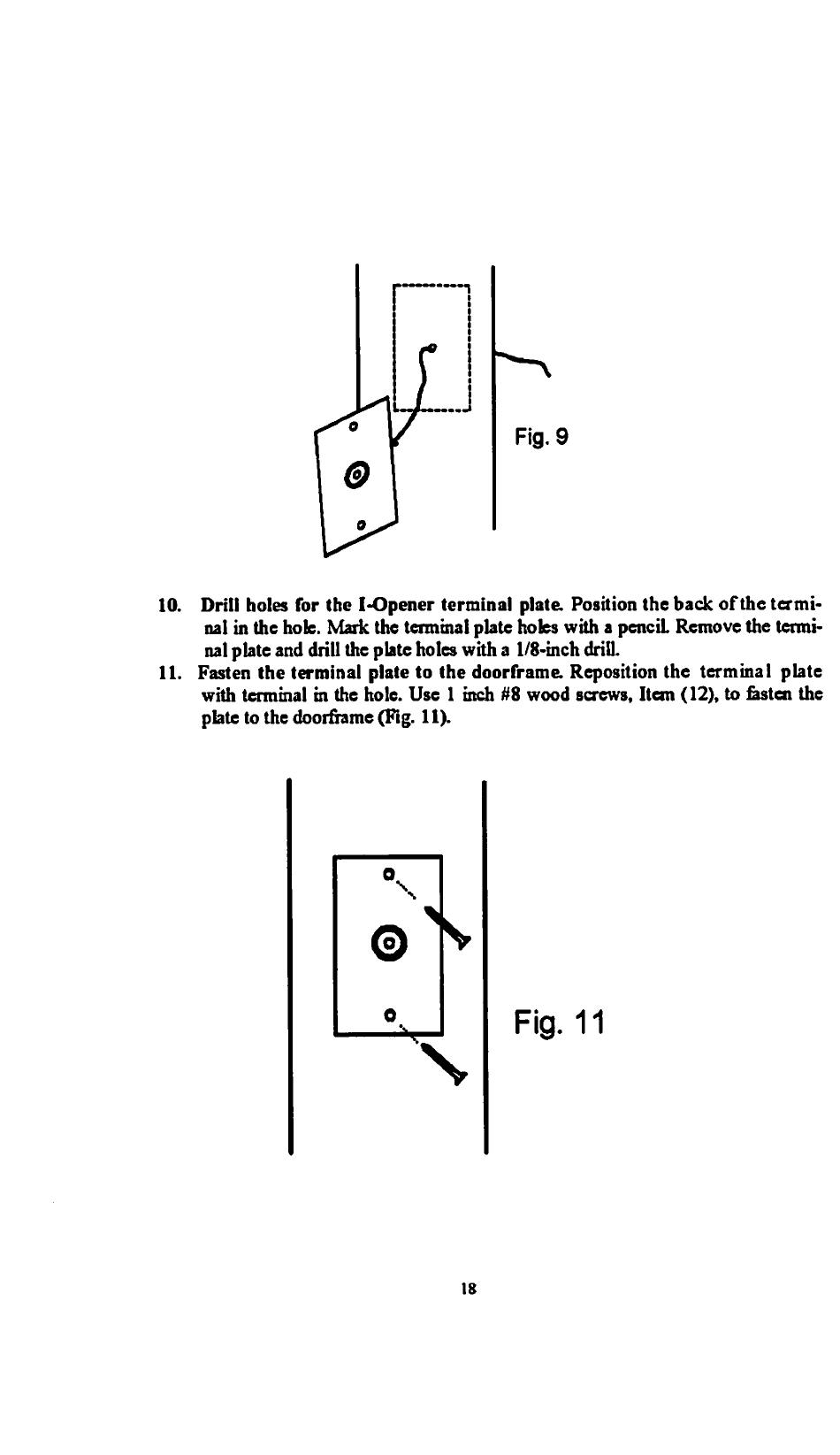

Fig. 9
Drill holes Torthe I-Opener terminal plate Position the back of the termi
nal in the hole. Mark the terminalplate holes with a pencil Remove the termi
nal plate and drill the pbte holes with a 1/8-inchdrill
Fasten the terminal plate to the doorframe Reposition the terminal plate
with termmal in the hole. Use 1 inch ttS wood screws. Item (12), to &stcn the
pbte to the doorframe(Fig. 11).
Fig. 11
